STEP 4: FRONT GEARBOX
STEP 3: FRONT AND REAR DIFFERENTIAL HOUSINGS
(148593) Round Head Tapping Screw 2 x 10mm -- 8
(148572) Grub Screw w/Threadlock 5 x 4mm -- 2
(149563) Ball Bearing 8 x 16 x 5mm -- 2
148593
148593
149778
Step 1
Step 2
149918
149563
149317
148572
(148638) Button Head Screw w/Threadlock 4 x 12mm -- 2
(148647) Cap Screw 3 x 40mm -- 2
148647
149275
149911
Step 3
149911
149916
149270
149270
148638

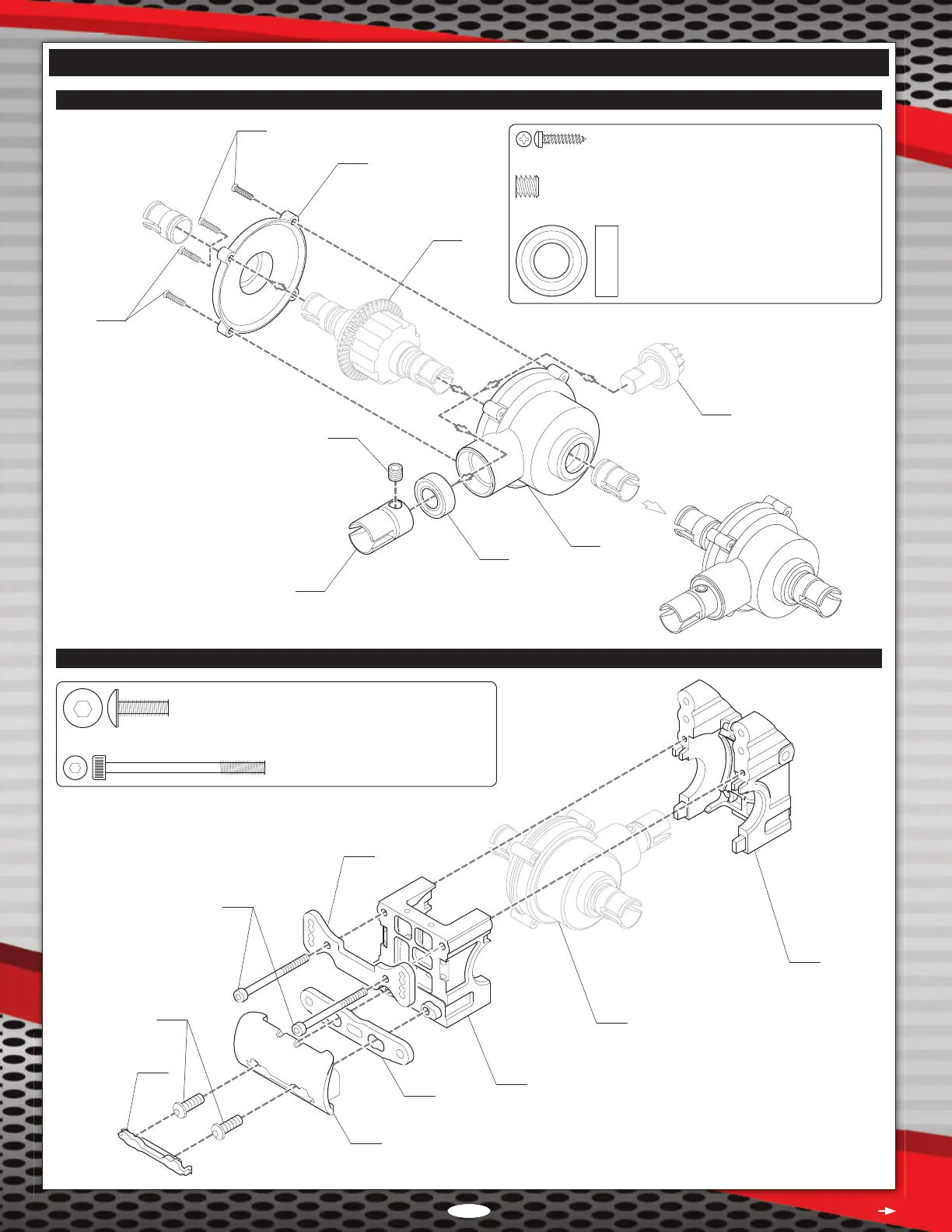

ExpLODED vIEW ASSEmBLY DRAWINGS
Continued On Next Page
To Next Page
