STEP 19: CHASSIS GUARDS
(148560) Flanged Lock Nut 3mm -- 1
(148640) Flat Head Screw 3 x 10mm -- 5
(148641) Flat Head Screw 3 x 12mm -- 1
(148646) Flat Head Screw 4 x 15mm -- 4
149894
148560
149429
149894
148646
148646
148640
148640
149264
148641
148646
148646
149429



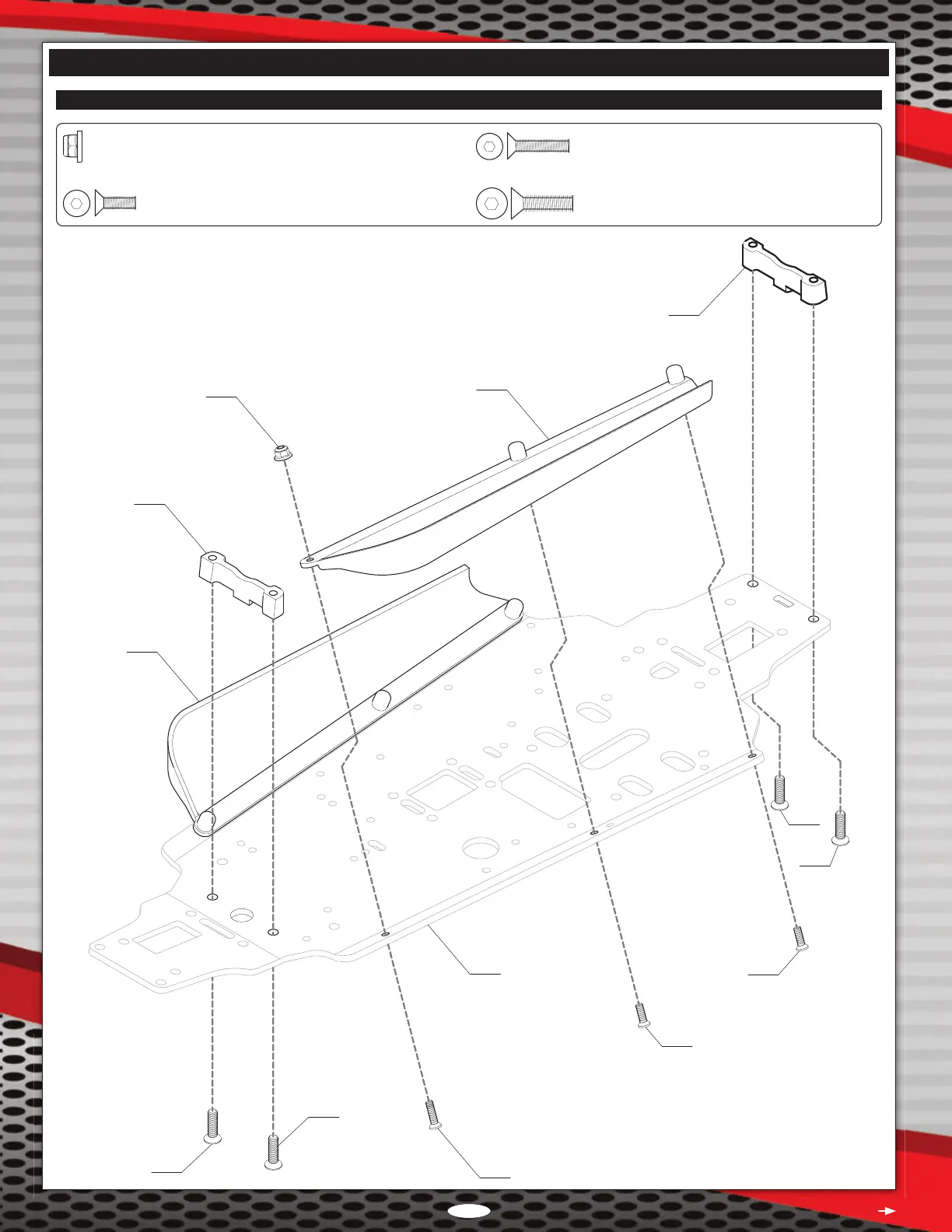

ExpLODED vIEW ASSEmBLY DRAWINGS
Continued On Next Page
