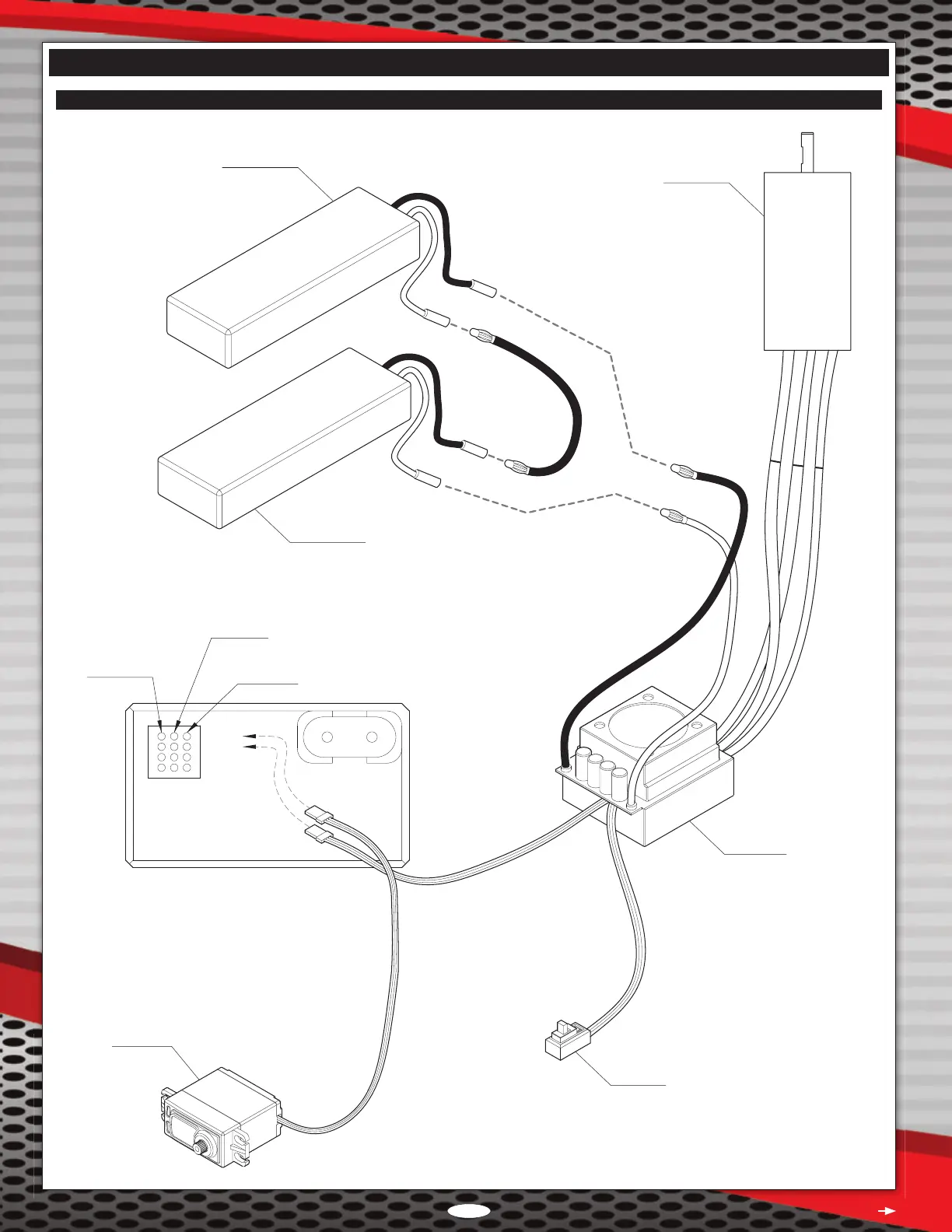

STEP 41: BATTERY AND RECEIVER CONNECTIONS
Li-Po Battery (2S)
Brushless Motor
White (Neutral)
Red (Positive)
Black (Negative)
Steering Servo
CH 1
On/Off Switch
Brushless ESC
CH 1
CH 2
CH 3
BATT
ST
TH
Ni-MH Battery (6C)
Li-Po Battery (2S)
Ni-MH Battery (6C)
CH 2
ExpLODED vIEW ASSEmBLY DRAWINGS
NEG-
NEG-
POS+
POS+
POS+
NEG-
A B C
Black
Red Yellow
Continued On Next Page
