3. DIAGNOSTIC
The diagnostic application can read ECU information, read and clear DTC (Diagnostic Trouble Codes) and check live data
and freeze frame data. The Diagnostic application can access the ECU of 5 vehicle control systems, including the Engine,
Transmission, Anti-lock Braking System (ABS), Airbag Safety Restraing System (SRS), Electronic Parking Brake system
(EPB) and perform many types of actuation tests.
VEHICLE CONNECTION
The scan tool must be connected to the vehicle’s OBD-II port so that the tablet can establish correct vehicle communication.
Please perform the following steps:
1 Turn on the tablet
2 Connect vehicle and tablet via the main test cable
3 Switch on the ignition and tap on the Diagnostic application to start your diagnosis.

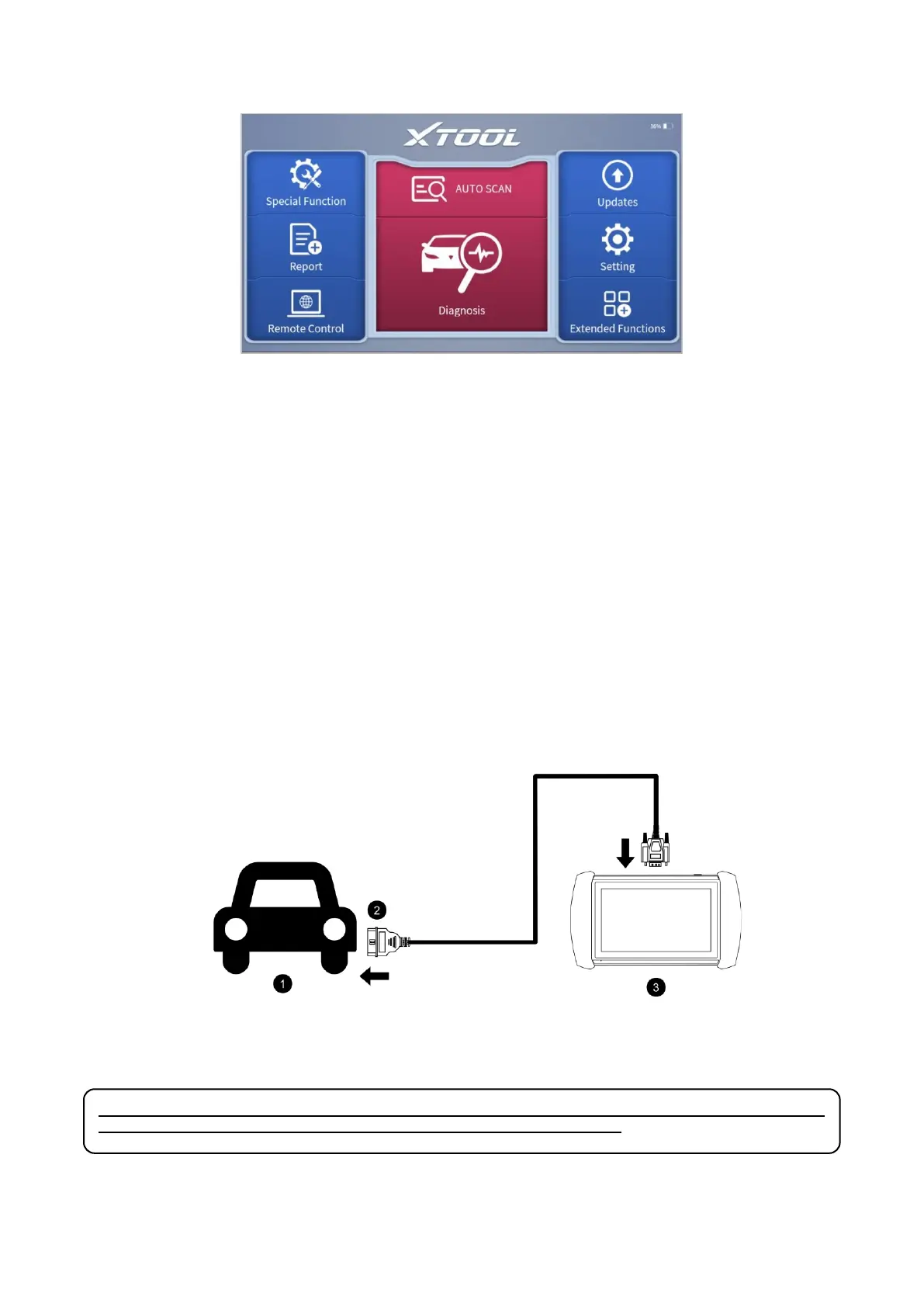

The connection method is shown in the figure below:
Note: Please make sure all the cables are connected tightly; The vehicle’s DLC is not always located under
the dash; for the location of the DLC, please refer to the vehicle’s user manual.
