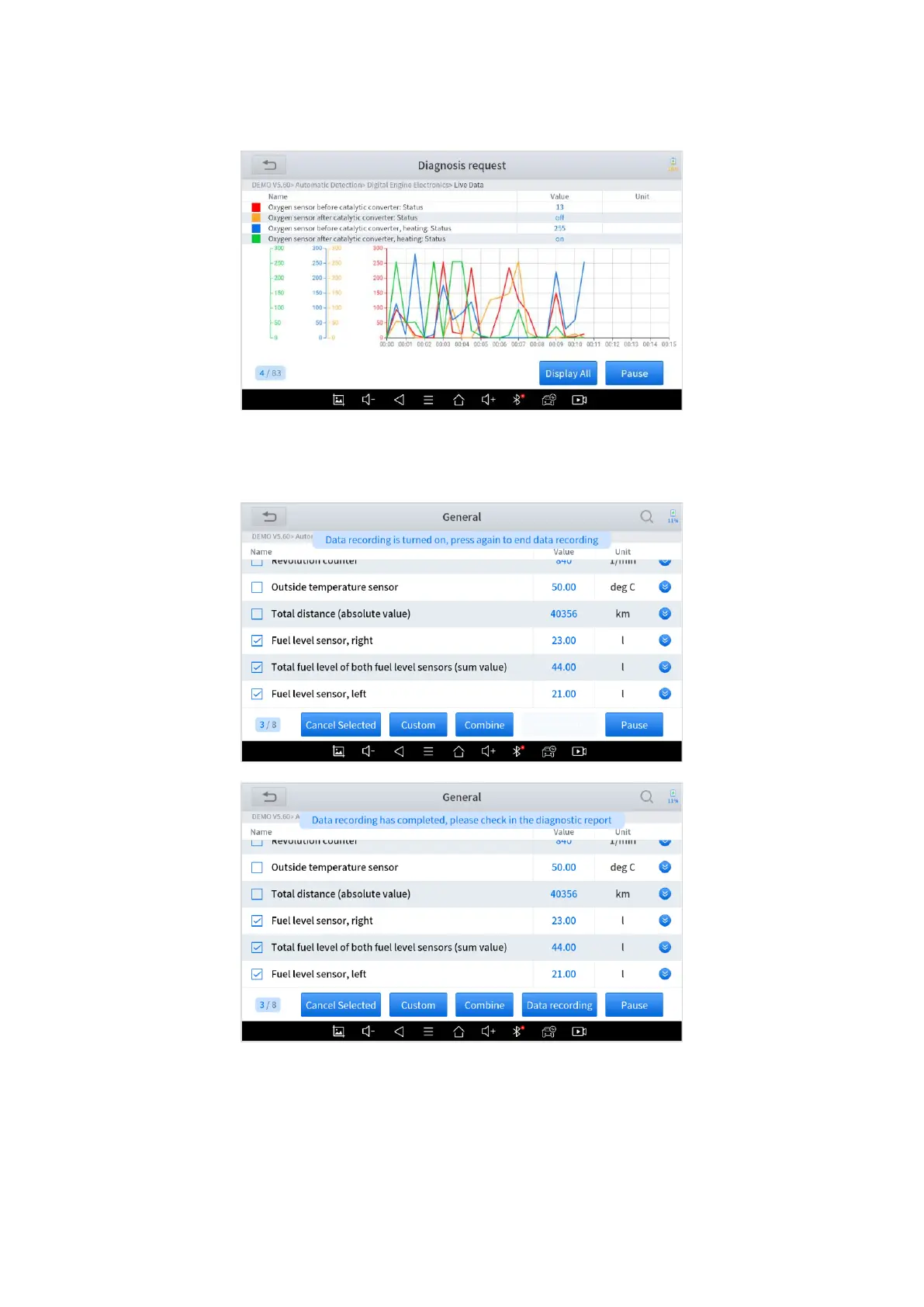

The scan tool includes support to select multiple PIDs and click Combine to combine different graphs into one chart.
⚫ Data recording
The scan tool supports recording the current data values in the form of text. You can view the recorded files in
Reports->Data Replay.
⚫ Pause
Click this button to pause the recording timeline
⚫ FREEZE FRAME
When the signal of the sensor is abnormal, the ECU will save the data at that moment of failure to form a freeze-frame. It is
usually used to analyze the reasons that may lead to component(?) failures.
