Xtool IP616 User Manual

27

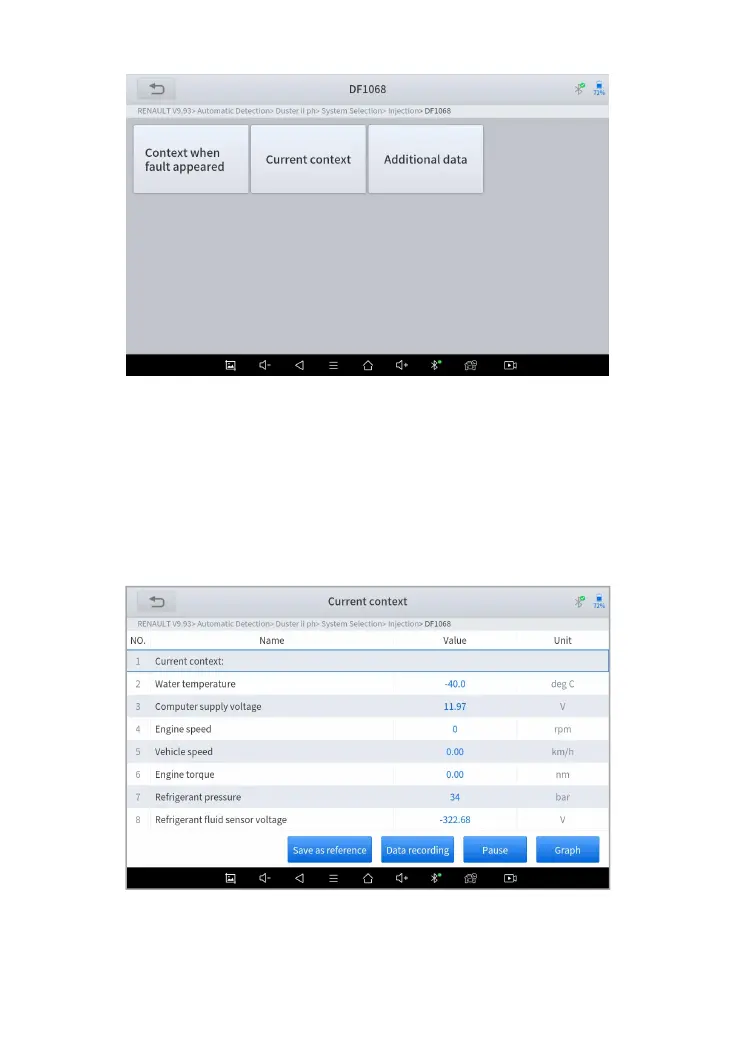

Figure 4-17 Sample of the Freeze frame for Renault Duster ii ph (Screen 2)
Context when fault appeared: record the live data when fault appeared
to help the user to know the vehicle status. *Some vehicles don't support
this function; users will get a prompt when they click the menu.
Current context: Displays the current live data stream associated with
the DTC
Figure 4-18 Sample of the Freeze frame for Renault Duster ii ph (Screen 3)
