Issue 2.0 – 10/12/15 - 1152 Longitudinal Transaxle Sportscar Gearbox Manual
© 2015 - Xtrac Limited, Gables Way, Kennet Park, Thatcham, Berkshire. RG19 4ZA.
Xtrac Inc, 6183 W. 80th Street, Indianapolis, IN 46278. United States
29
11. Appendix E – Oil Pumps and Flow
11.1. Oil Pump Pressure and Flow Rates

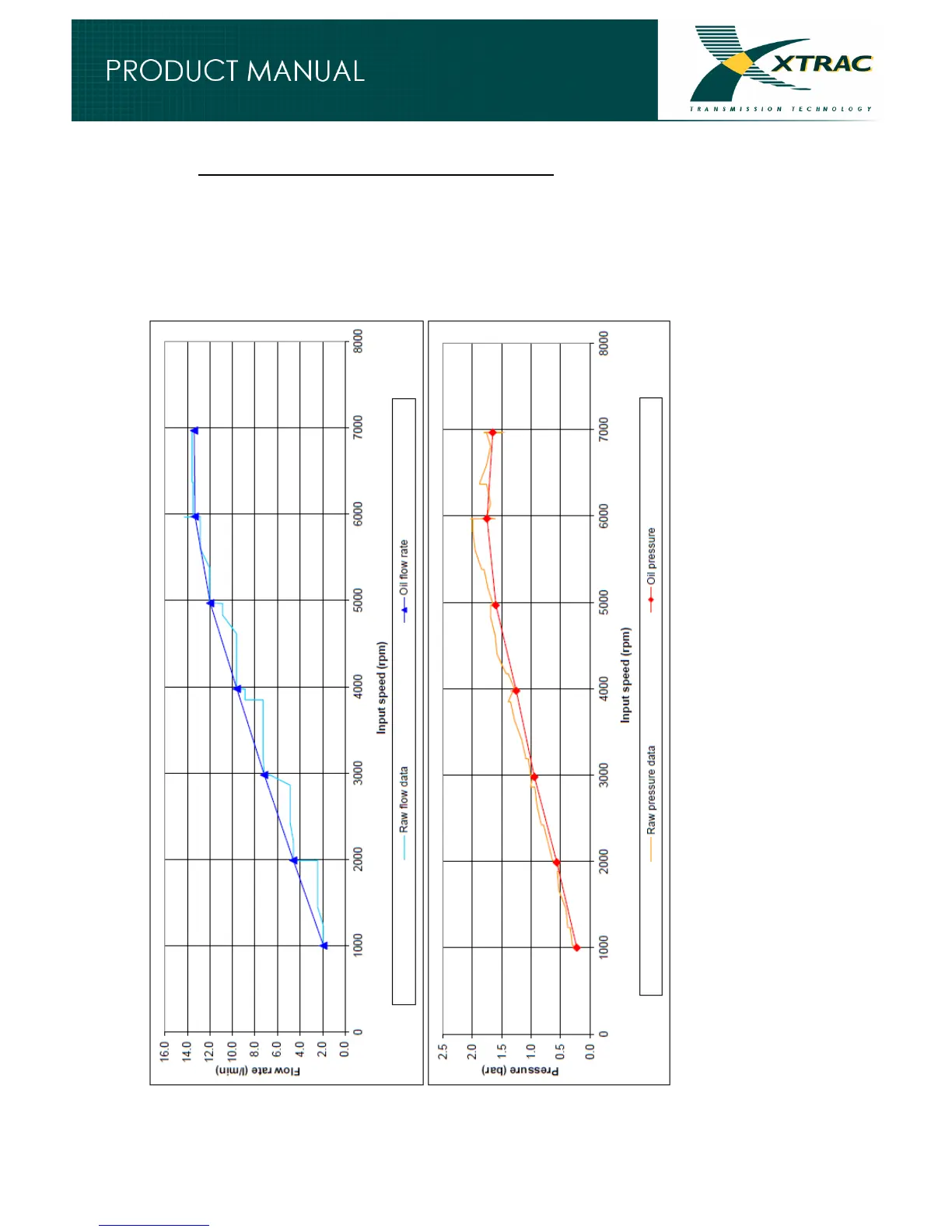

The graphs below show typical values of flow rate & pressure for the gearbox fitted
with the standard 9mm eccentric rotor pump assembly.
