Xtralis VESDAnet - Part Description and Installation

4 www.xtralis.com
VESDAnet Interface Card Product Guide Xtralis VESDA
®
3 Part Description and Installation
•1 Mounting Screw
• 1 Interface Cable
• 1 VESDAnet Interface Card PCB
• 2 connectors for VESDAnet connection
The VN Card is a printed circuit board with connectors on either end. It is
designed to be installed inside a smoke detector such as the VLF.

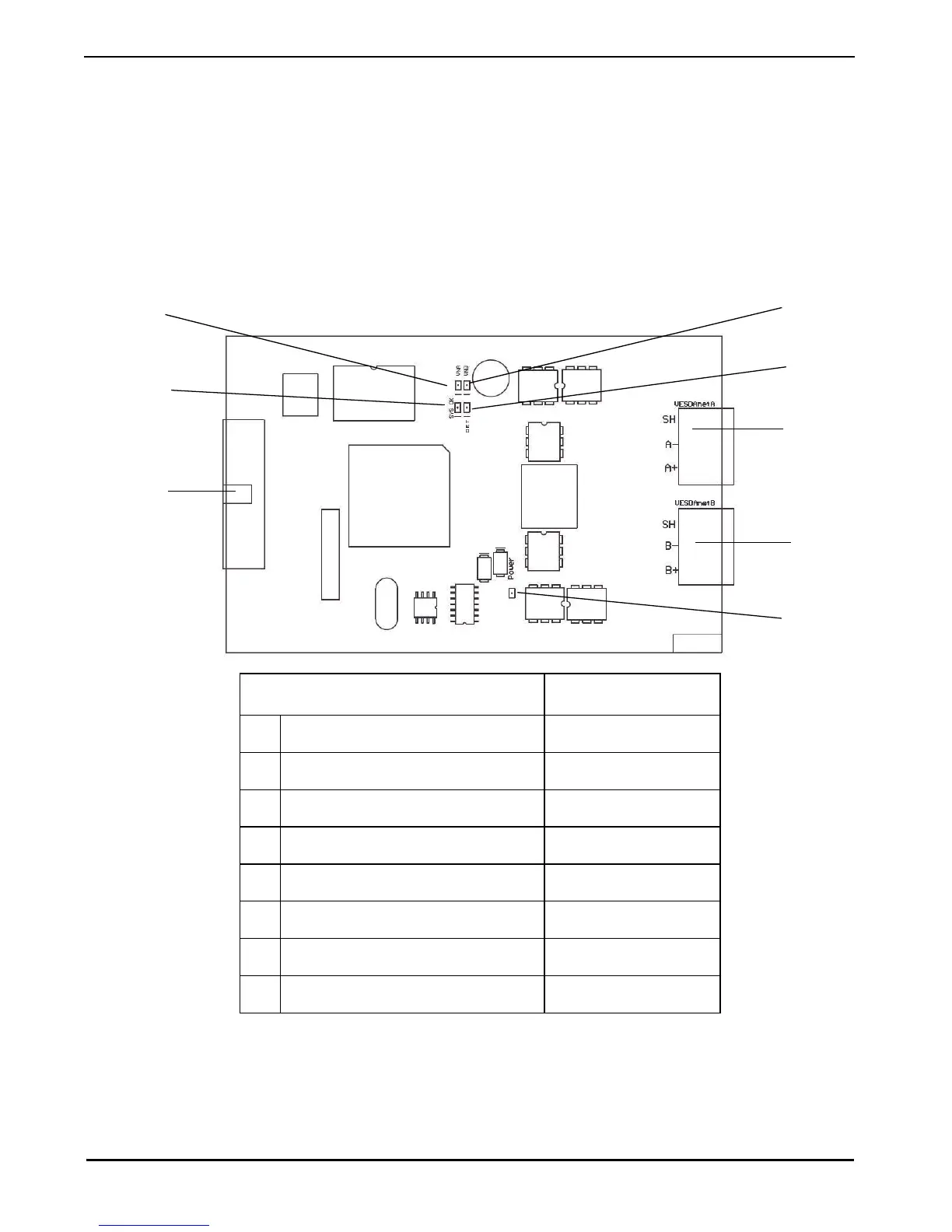

Figure 1 - VN Card Diagram showing major features
B
C
D
E
F
G
H
A
Legend Label on PCB
A Detector Interface Cable socket -
B System OK LED SYS OK
C VESDAnet Port A LED VN A
D VESDAnet Port B LED VN B
E Detector (Comms) LED DET
F VESDAnet Port A Socket VESDAnet A
G VESDAnet Port B Socket VESDAnet B
H Power Indicator LED Power
