DO NOT use attachments that are corroded
excessively.
• All the attachments should be stored in an appropriate
enclosure as to prevent corrosion and deterioration due
to environmental conditions.
• Inspect the forklift and the attachments periodically for
corrosion.
MODEL: XR1245
UNLADEN VEHICLE WEIGHT: 32,930 lbs
18241- 002
UNLADEN CENTER OF GRAVITY
AFT LIFT POINT
FORWARD LIFT POINT
124.0"
WHEEL BASE
70.0"
APPROX

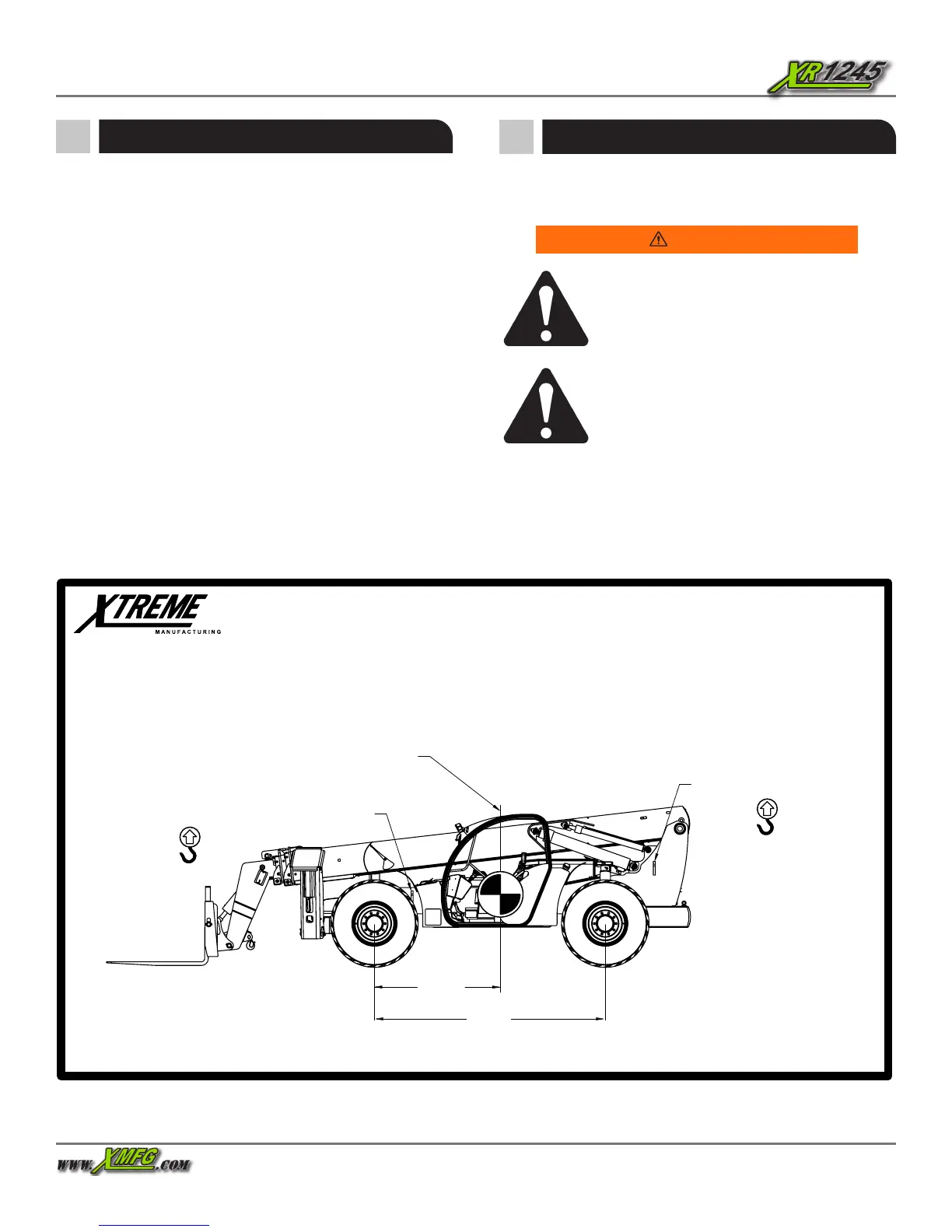

Figure 54. XR1245 Lifting Points
Forklift Lifting Points
The XR1245 lifting points are shown below (Figure 54). The
forklift should only be lifted if lifting points are installed.
Warning
Ensure that no one is in the work radius before
lifting forklift to avoid crushing hazard.
DO NOT try to lift or handle heavy
components without the use of appropriate
lifting equipment.
The Boom Maintenance Stand is an optional safety equipment
used to support the boom during any and
maintenance activities where the boom is raised and must
be stowed during normal operation. Boom stand usage
while driving or with the boom loaded is not permitted.
When preparing to set boom stand, make sure machine is on
a flat level ground and machine has no load on the forks.
• Raise machine boom to 40 degrees for clearance and
remove latch and pin from boom stand weldment.
• Position the boom stand in the upright position and re-
apply the pin to secure stand. Proceed by slowly lowering
machine boom to lay on stand.
When not in use, fold the support down and latch it in
place. When preparing to remove boom stand, make sure all
maintenance has been performed and area is clean.
• Raise machine boom to 40 degrees for clearance and
remove pin from stand weldment
• Lay boom stand in the down position and re-latch stand
to secure.
Boom Maintenance Stand (If Equipped)
