Operation
Operation Manual 68
Load Capacity Charts
Warning
DO NOT exceed rated capacity. Any attempt
to lift or carry loads in excess of those shown
on the load capacity charts could cause fork-
lift tip over, loss of load, or structural damage
which could result in death, serious injury, or
property damage.
All load ratings shown on load capacity charts are based
on the forklift being on rm, level ground, the forks being
evenly positioned on the carriage, the load being centered
on the forks, properly sized tires properly inated and/
or foam lled, and the forklift being in good operating
condition.
Load capacity charts, located on the left side of the dash
panel, are provided to assist the operator in determining how
to safely operate the boom to pick up, carry, and set down
a load with the forklift, including what angle, how high, and
how far to extend the boom.

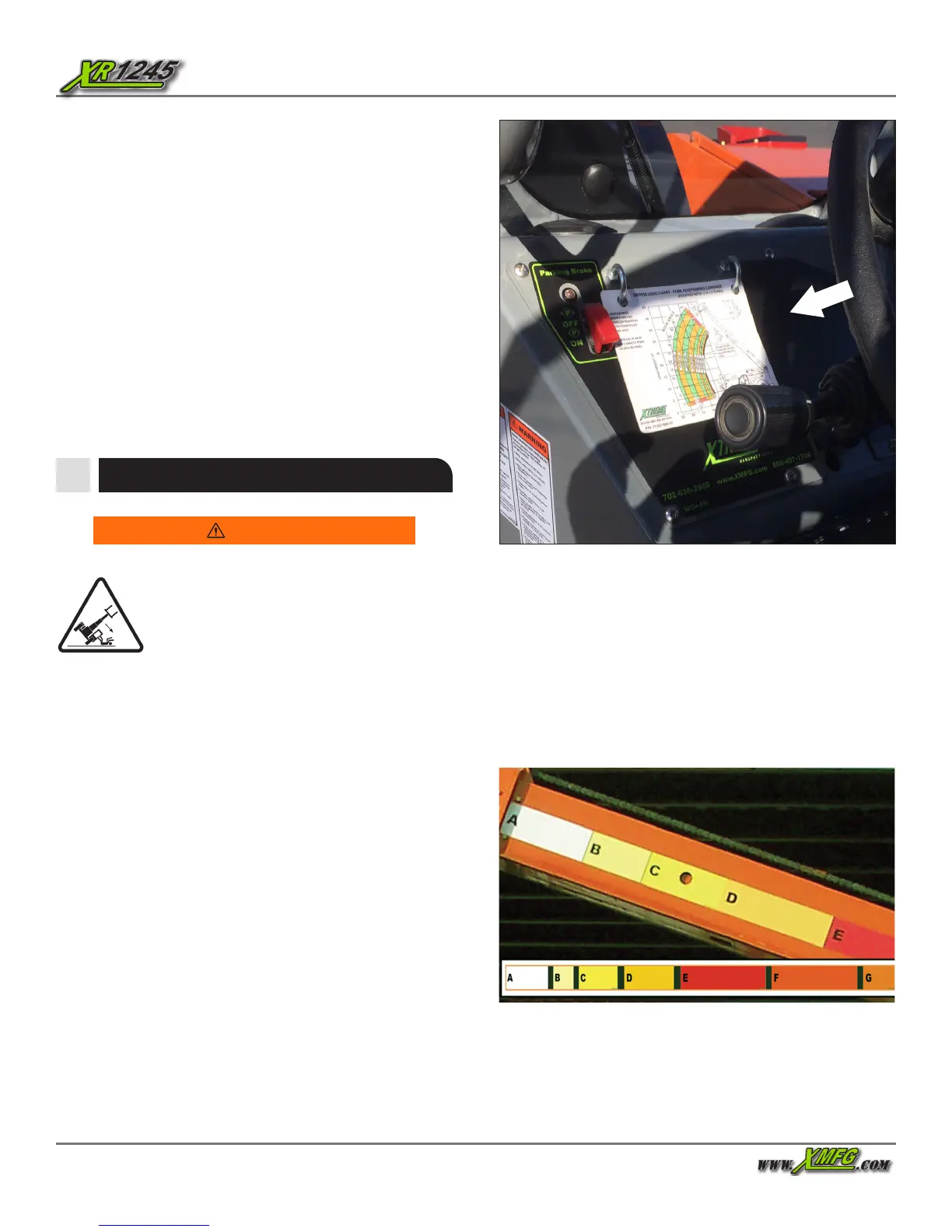

Figure 84. Load Capacity Chart
1. Use of railings, planks, ladder, etc. on the platform for
purpose of achieving additional reach or height is
prohibited.
2. Before elevating personnel, the area around and under
the work platform should be marked to warn anyone on
the ground that overhead work is being done.
3. The platform shall be lowered to ground level for
personnel to enter and exit. Personnel shall not climb
on any part of the rough terrain forklift in attempting to
enter and exit.
4. Protection must be provided for the personnel on the
work platform from pinch points or moving parts while in
their normal working position on the platform.
5. Provide overhead protection device as required by work
site conditions or if requested by the user of the platform.
Using Load Capacity Charts
The forklift includes two (2) indicators to assist the operator
for accurately using the load capacity charts. These indicators
are the Boom Extend Letters and the Boom Angle Indicator.
Figure 85. Boom Extend Letters
The boom angle indicator is located on the left side of the
boom and is visible from the operator’s seat. Use the boom
angle indicator to determine the boom angle when referring
to load capacity charts.
Boom extend letters are located on the left side of the boom
and visible to the operator as the boom is extended. These
letters indicate boom extension as it corresponds to the load
capacity charts.
NOTE: For example, when letter “A” rst appears, the boom
extension corresponds to the arc of line “A” throughout all the
load capacity charts.
