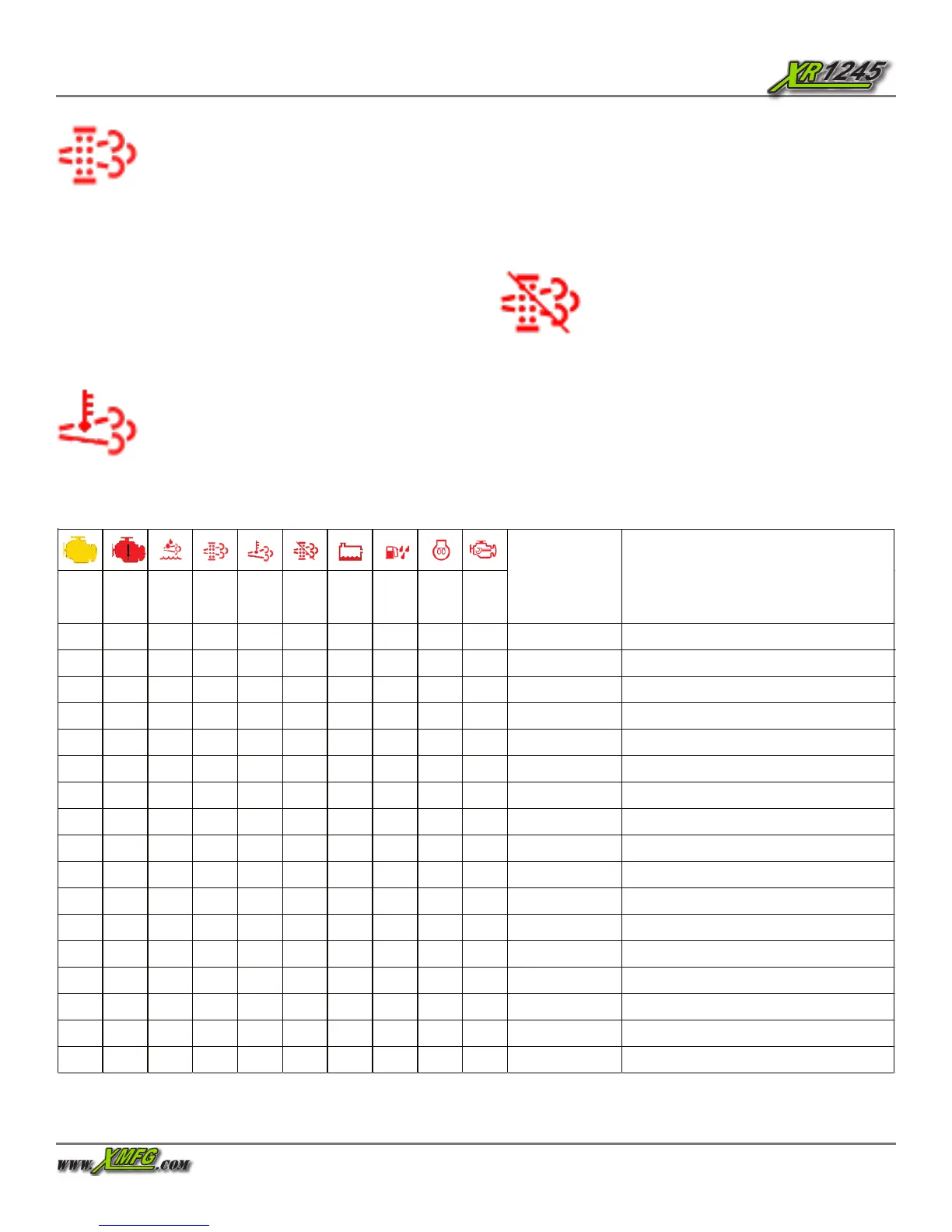

Figure 64. Engine Indicator Chart
CHECK
ENGINE
ENGINE
SHUT
DOWN
DEF LEVEL
EXHAUST
SYSTEM
CLEANING
(ESC)
HIGH
EXHAUST
TEMP
REGEN
DISABLED
LOW
COOLANT
LEVEL
WATER
IN FUEL
WAIT TO
START
ENGINE
SERVICE
NO FAULTS ENGINE OPERATING NORMALLY
ON MINOR FAULT ENGINE OPERATING NORMALLY
ON ON SEVERE FAULT ENGINE OPERATING WITH REDUCED POWER
ON FLASH VERY SEVERE FAULT
ENGINE OPERATING WITH MAX DE-RATE; SHUT ENGINE DOWN AS
SOON AS POSSIBLE. ENGINE MAY SHUT DOWN AUTOMATICALLY.
ON DEF LEVEL LOW ADD DEF
FLASH DEF LEVEL VERY LOW ADD DEF
ON FLASH DEF LEVEL CRITICALLY LOW
ENGINE POWER WILL BE DERATED SOON; ADD DEF AS SOON AS
POSSIBLE
ON ON FLASH DEF LEVEL IS ZERO
E
NGINE POWER DERATED OR LIMITED TO IDLE; ADD DEF
IMMEDIATELY
ON EXCESSIVE SOOT LOADING MANUAL ESC REGEN RECOMMENDED
ON ON SERIOUS SOOT LOADING
M
ANUAL ESC REGEN REQUIRED; ENGINE OPERATING WITH
REDUCED POWER
FLASH ON HIGH EXHAUST TEMP MANUAL ESC REGEN IN PROCESS
ON HIGH EXHAUST TEMP AUTO ESC REGEN IN PROCESS
ON ESC REGEN DISABLED ESC REGEN DISABLED DUE TO OPERATOR
ON LOW COOLANT LEVEL ADD COOLANT TO SURGE TANK
ON WATER IN FUEL DRAIN WATER FROM FUEL FILTER
ON WAIT TO START DO NOT START ENGINE UNTIL INDICATOR TURNS OFF
ON ENGINE SERVICE PERFORM ENGINE SERVICE
INDICATION DESCRIPTION
EXHAUST SYSTEM CLEANING (ESC)
INDICATOR
The ESC Indicator will be displayed by itself
when a manual regeneration is recommended.
The ESC Indicator will be displayed with
the Check Engine Indicator when a manual
regeneration is required. The engine is
operating with reduced power.
A ashing ESC Indicator will be displayed
with the HEST Indicator when the exhaust
temperature is elevated due to a manual
regeneration. The forklift must not be operated
in this condition.
HIGH EXHAUST TEMPERATURE (HEST)
INDICATOR
The HEST Indicator will be displayed by itself
when the exhaust temperature is elevated due
to an automatic regeneration. The forklift may
be operated in this condition as long as there
is no concern for operating with high exhaust
temperature.
The HEST Indicator will be displayed with
a ashing ESC Indicator when the exhaust
temperature is elevated due to a manual
regeneration. The forklift must not be operated
in this condition.
ESC REGEN DISABLED INDICATOR
The ESC Regen Disabled indicator will be
displayed if the ESC Regen has been manually
disabled by the user. The forklift should only be
operated in this condition if it is in an area where
the high exhaust temperature could cause
problems, such as near combustibles. As soon
as the concern for high exhaust temperature
subsides, the automatic regeneration should
be enabled by pressing the Enter button
or Regen soft button to bring up the After
Treatment Control menu and then pressing the
Regen Mode Auto soft button.
