Quick reference
If you want to use the product quickly, follo
w
these instructions.
Connection
Connect to input: XLR, RCA or Speaker input.
Select your local mains voltage with the powe
r
switch. Connect the power switch and turn the
main switch on.
INPUT SELECTOR
Choose one of: XLR, RCA or Speaker input.
Input gain
INPUT GAIN : Select the value 15.0dB
Subsonic Filter
Frequency: Select the value 20Hz
Slope: Select the value 24dB
High-Cut Filter
Frequency: Select the value 120Hz
Slope: Select the value 24dB

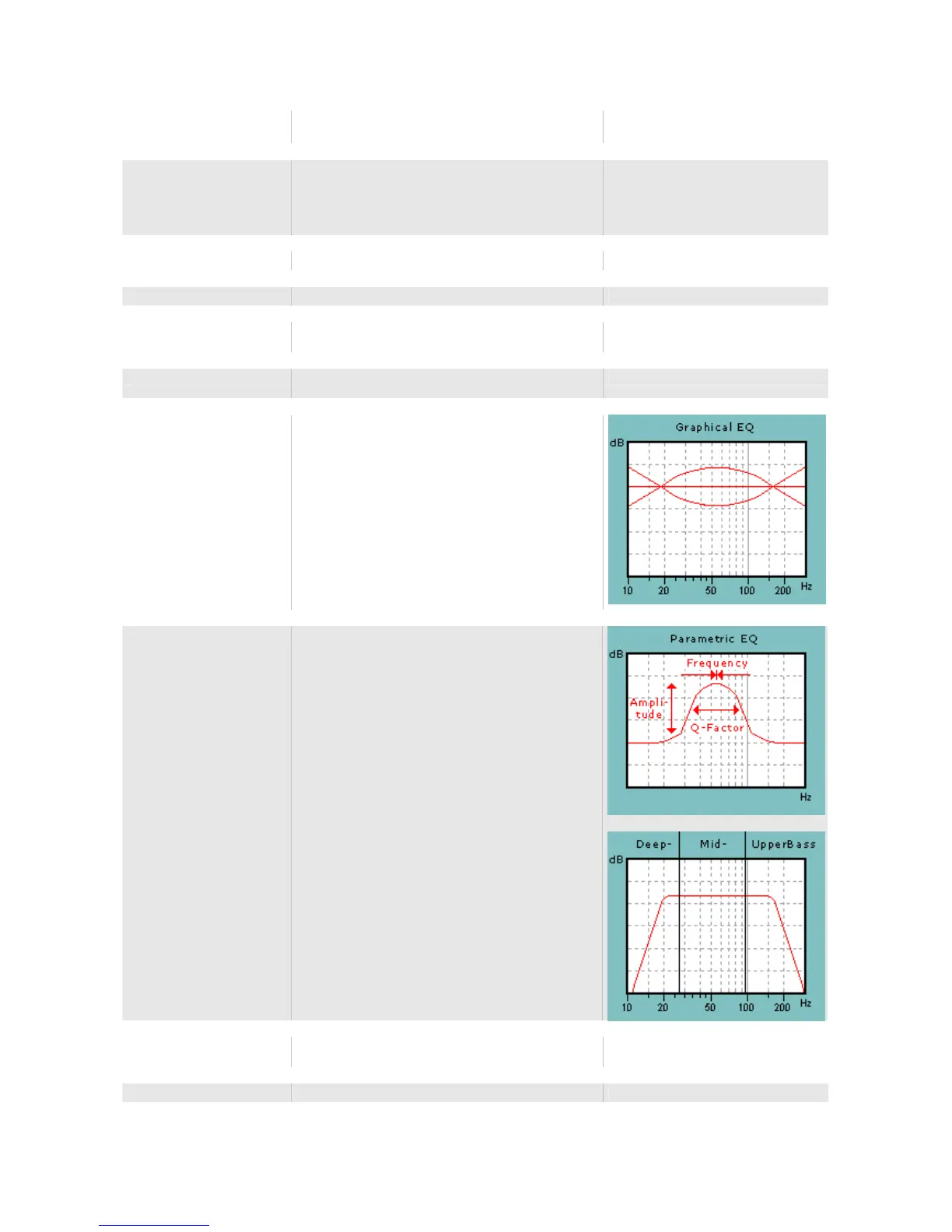

Graphical Equalizer
The graphical Equalizer is an easy and well-known
way to adjust the sound character.
Adjust the frequency response in functions 2-11.
The level can be adjusted in the range of ± 12dB
Select the frequency with the buttons
"FUNCTION". Select the level with the buttons
"VALUE".
It is also possible to do a setting with the
parametric equalizer and make a rough adjustment
to the sound character you like.
Read the next chapter.
Parametrical
Equalizer
It is possible to do a setting with the parametrical
equalizer and make a rough adjustment to the
character you like.
Do the following:
PE Q 1
Frequency : 40 Hz
Q-factor : 1.40
PE Q 2
Frequency : 90 Hz
Q-factor : 1.40
PE Q 3
Frequency : 140 Hz
Q-factor : 1.40
Adjust the levels on PEQ 1, 2 and 3 to the sound
character that you like.
W
ith this setting the bass frequency is split in to 3
bands:
PEQ 1 =deep bass,
PEQ 2 = mid bass,
PEQ 3 = upper bass.
Bass ports
Take out both bass-plugs out of the bass reflex
ports.
Level adjustment
Adjust the main volume with the volume knob ( 8 )
