Functional reference

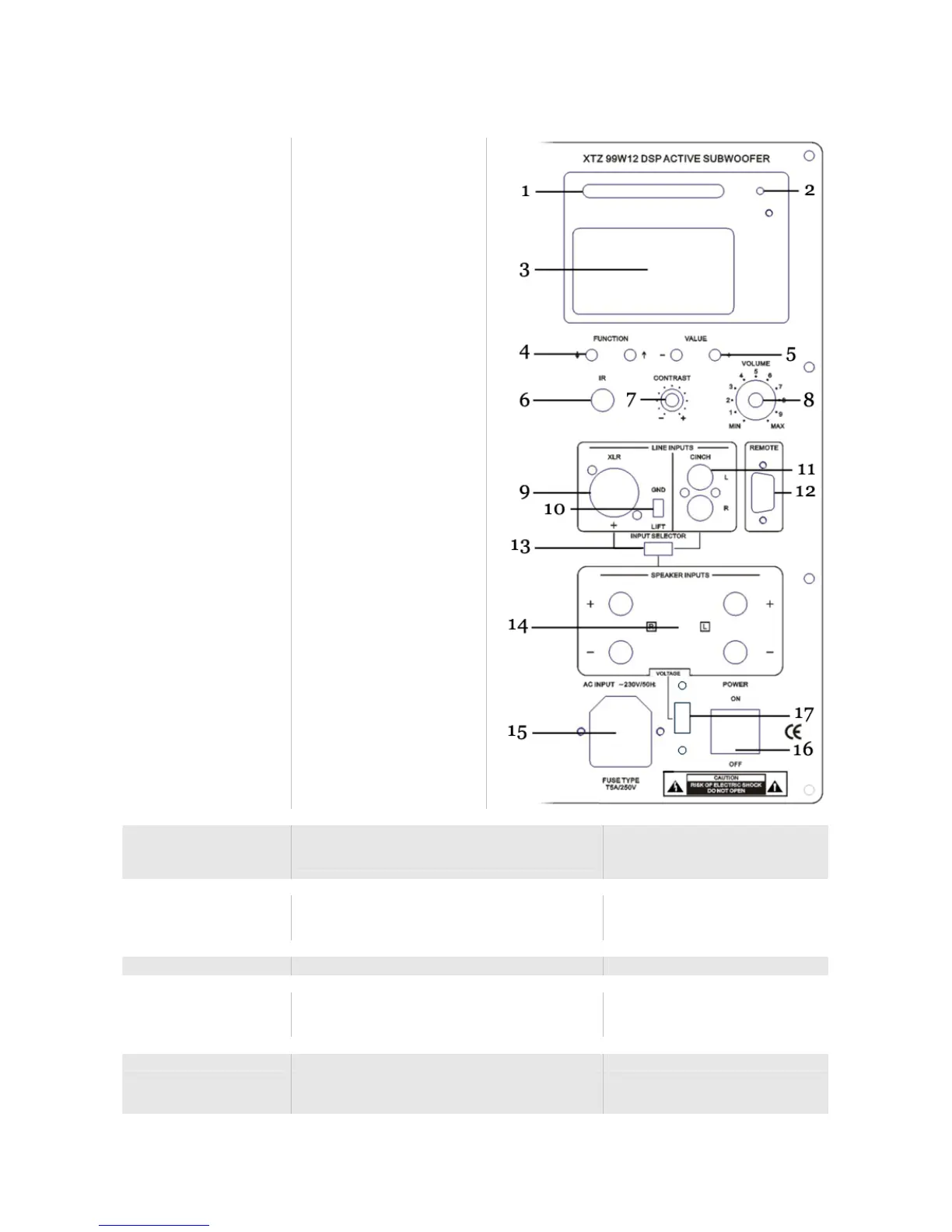

Rearpanel
1. Input gain meter
2. Standby indicators
3. LCD display
4. Function button
5. Value buttons
6. IR port
7. Contrast adjustments for
LCD Display
8. Volume knob
9. Balanced input
10. Ground choices
11. Low level input
12. RS-232 PC connector
13. Input selections
14. High level input
(speaker input)
15. Power connector
16. Main switch
17. Power select
1 Input gain
INPUT GAIN METER
Indicate the input level.
Should be as high as possible but without
getting the red INPUT GAIN diode
flashing; this gives the best signal/noise
ratio.
2 Standby indicator
Turns red in standby.
Turns blue in when the subwoofer is on.
3 LCD display
LCD Display that shows all functions and values.
4 Function button
FUNCTION
Select function with this two buttons.
5 Value buttons
VALUE
Select value with this two buttons to adjust the
functions.
