Xvive U3 User Manual

16
1 XLR OUT: XLR output jack
2 Power switch: switches the unit on and o
3 Channel status LED: indicates selected channel
4 Channel switch: selects channels 1-6
5 USB Port: connects to 5V USB power for charging the battery
6 RF Status LED:
ON = Transmitter is on and connection is established
Flashing = Signal connection interference
OFF = Transmitter is o or unlinked
7 Power status LED:
LED o = 100% ~ 30%
Solid red = 29% ~ 11%
Flickering red = less than 10%
8 Antenna

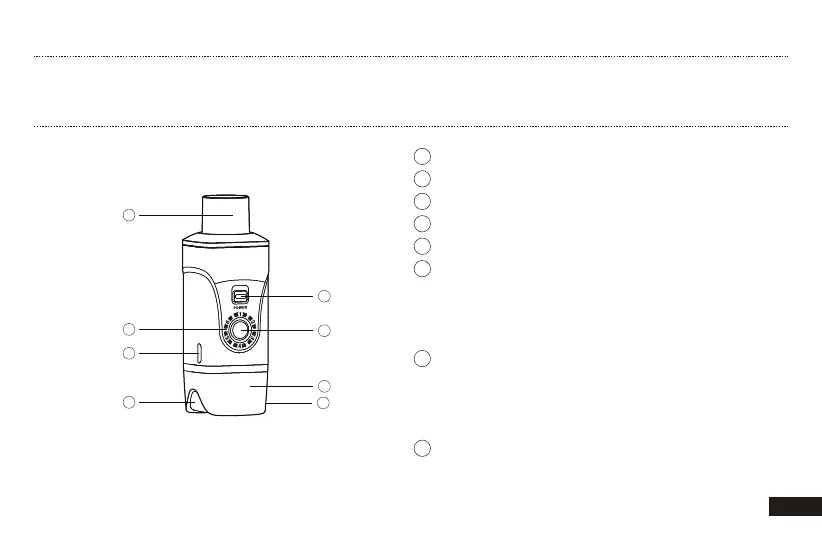

OVERVIEW:
U3 RECEIVER
1
4
6
2
8
7
5
3

Xvive U3 Specifications

General

Frequency Response	20Hz - 20kHz
Latency	<5ms
Battery Life	Up to 5 hours
Frequency Band	2.4 GHz
Dynamic Range	110dB
Type	Digital Wireless Microphone System
Channels	6
Audio Output	Balanced XLR
Operating Range	Up to 30 meters
