RED
BROWN YELLOW
BROWN
YELLOW
RED
RED
RED
BROWN
YELLOW
To Waste Pump
Positive (Orange)
Motor Lead
To Solenoid
Valve/Siphon
Breaker
To Positive

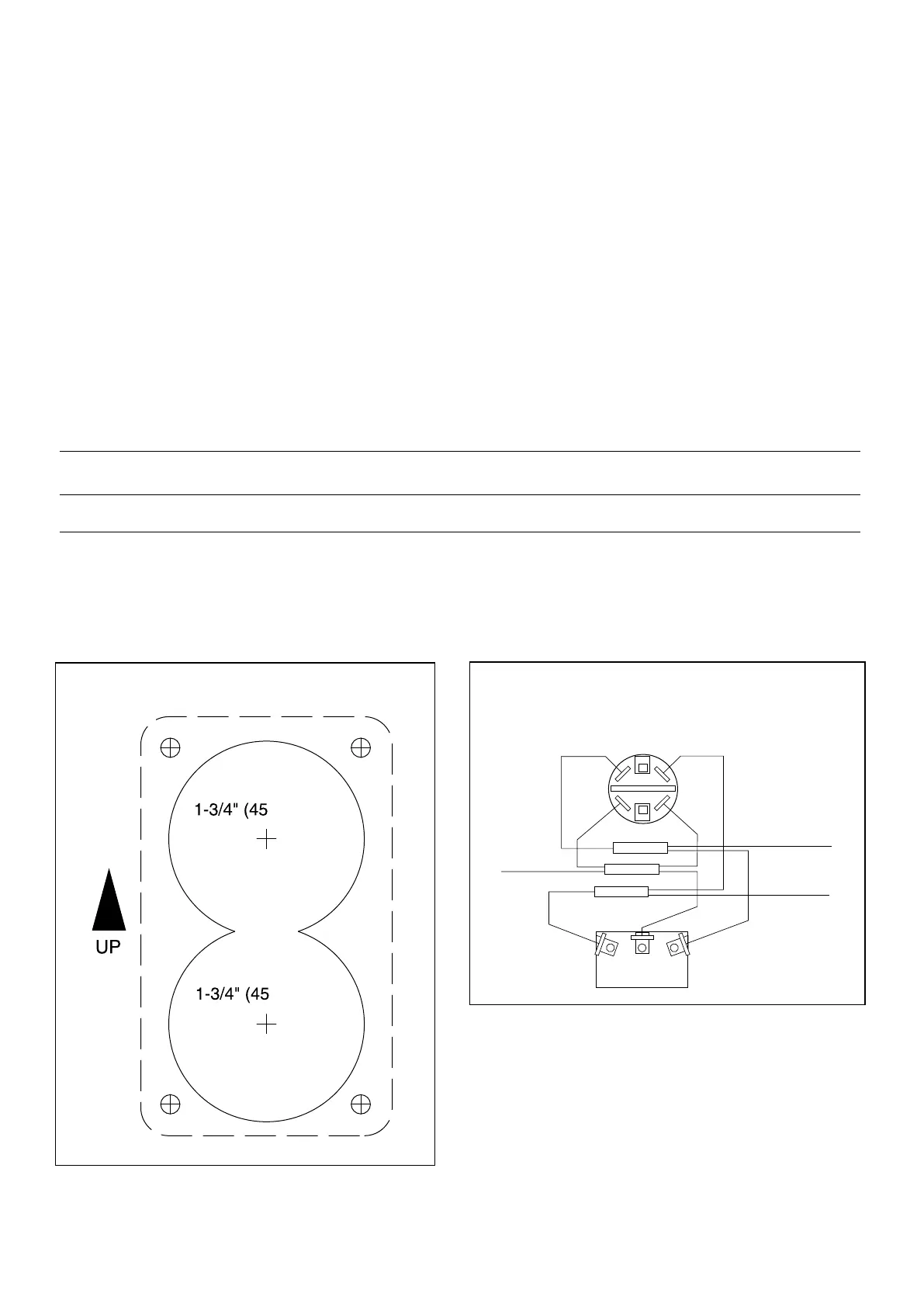

WIRING DIAGRAM
mm) DIA
mm) DIA
TEMPLATE
ELECTRICAL SPECIFICATIONS
Amp Fuse Wire Size Per Feet Of Run*
Voltage Draw Size 0'-10' 10'-15' 15'-25' 25'-40' 40'-60'
12 Vdc 10 25 #16 #14 #12 #10 #8
24 Vdc 5 15 #16 #16 #16 #14 #12
* Length of run is total distance from power source to product and back to ground.
ELECTRICAL
The electrical wiring should be independent of all other
accessories. It should be made with marine grade
copper stranded wire of the gauge specified in the
electrical specifications chart. Make all wire connections
with mechanical locking type connectors (crimp type butt
connectors and terminals). Ensure the circuit is protect-
ed by a proper sized fuse or circuit breaker determined
from the electrical specifications chart. Secure all wires
to a solid surface approximately every eighteen inches
(1/2m) along their entire length of run.
Wire the switch panel to the solenoid valve/siphon break-
er and toilet pump assembly as per the following wiring
diagram. Select a location for the switch panel that is
convenient to the toilet user and will also allow access to
run the wires from the switch panel to both the toilet’s
motor and the solenoid valve/siphon breaker as well as
from the electrical power source to the switch panel. The
red lead from the panel should be connected to an over-
current protected positive power source. Connect the
brown lead from the panel to the waste pump positive
(orange) motor lead. Connect the black waste pump
motor lead to battery negative. Connect the yellow lead
from the panel to a solenoid valve terminal. Connect the
remaining solenoid valve terminal to battery negative.
The solenoid valve is not polarity sensitive.
To install the switch panel, drill two 1-3/4" (45mm)
diameter holes (slightly over-lapping) through the select-
ed switch mounting surface per the attached template.
Ensure the template is oriented correctly because it is
not symmetrical. Also, drill four appropriate sized holes
for the fasteners selected to secure the switch panel to
its mounting surface.
