PROCEDURE FOR REPLACING FILTERS
SOLDER COLLECTOR FILTERS
1. Be sure the iron/filter assembly have cooled.
2. Hold iron as in Figure 10, press/turn red knob on the butt of iron.
3. Remove solder collector (see Figure 11).
4. Disassemble the solder collector into 2 pars (see Figures 15 & 16).

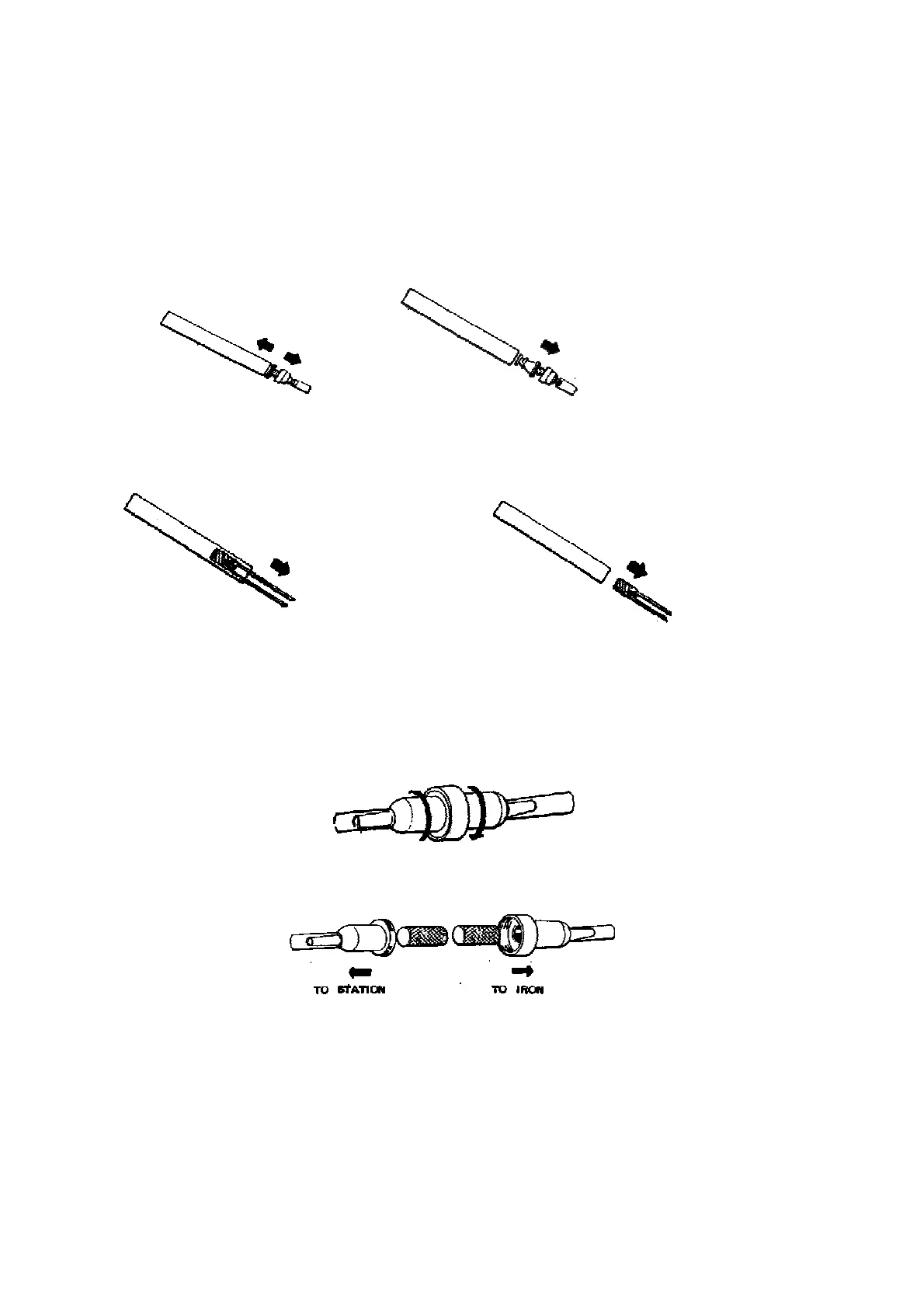

FIG-15 FIG-16
5. Remove old cotton filter and replace (see Figures 17 & 18).
FIG-17 FIG-18
IN LINE FILTERS
1. Unscrew in line filter (see Figure 19) and then pull apart (Figure 20).
FIG-19
FIG-20
