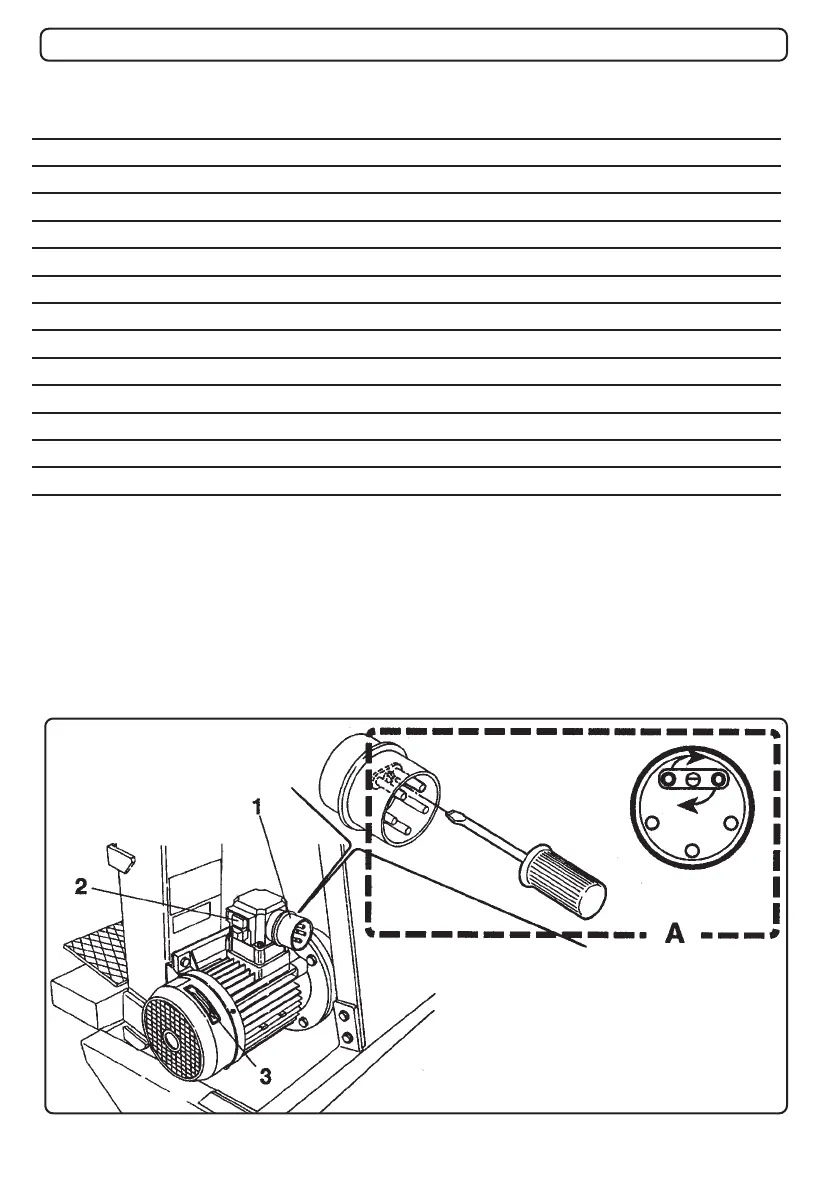

Fig. 4
ONLY FOR THREE-PHASE MODELS
Before installation check the rotation direction
of the electric motor.
To do this it is necessary to:
1) Carry out electric connection with the
engine plug (1 Fig. 4). For supply voltage
see “Transmission” in table 1.4 TECHNICAL
FEATURES, according to the wood-cutter
model.
2) Power the motor for one or two seconds
with the green push button located on top
110HYD 120T 120+PTO 120T+PTO 120HYD
Idraulico 400/3,0 Cardano 400 / 3,0 Idraulico
10 13 13 13 13
55-70-110 55-70-110 55-70-110 55-70-110 55-70-110
2-7 8 2-7-8
14 14 14
300 300 300 305 300
300 300 300 300 300
78.0 78.0 78.0 78.0 78.0
97.3 97.3 97.3 97.3 97.3
1600 1600 1600 1600 1600
1100 1100 1100 1100 1100
730 730 730 730 730
