Yaesu FC-902 - Rear Panel Connections; ANT 1, ANT 2, ANT 3 Connectors; WIRE Terminal; GND Terminal

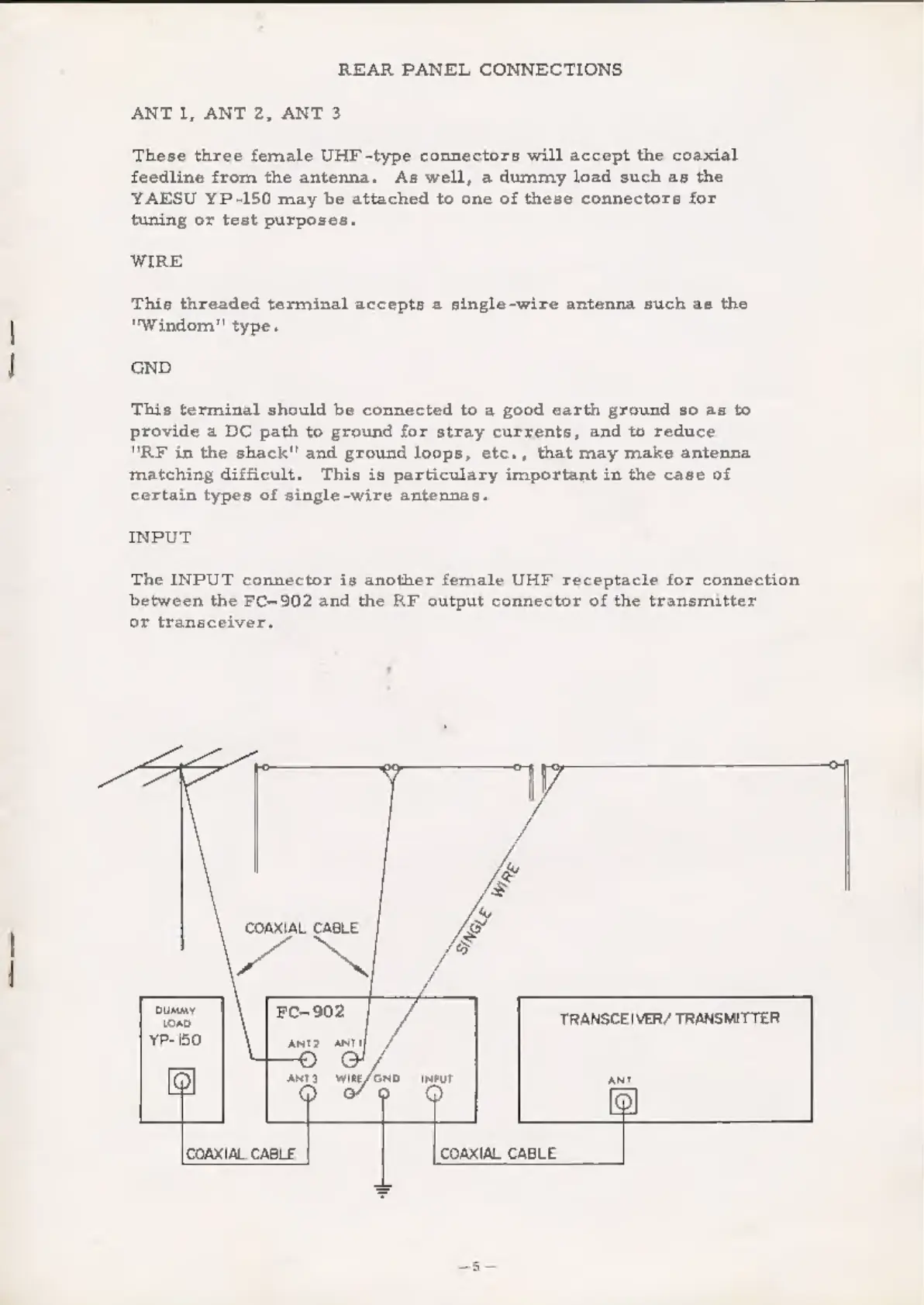

REAR PANEL CONNECTIONS
ANT 1, ANT 2, ANT 3
These three female UHF -type connectors will accept the coaxial
feedline from the antenna. As well, a dummy load such as the
YAESU YP-150 may be attached to one of these connectors for
tuning or test purposes.
WIRE
This threaded terminal accepts a single-wire antenna such as the
"Windom" type.
GND
This terminal should be connected to a good earth ground so as to
provide a DC path to ground for stray currents, and to reduce
“RF in the shack" and ground loops, etc., that may make antenna
matching difficult. This is particulary important in the case of
certain types of single-wire antennas.
INPUT
The INPUT connector is another female UHF receptacle for connection
between the FC-902 and the RF output connector of the transmitter
or transceiver,
COAXIAL CABLE
\
pA
ord
HEED
rh
TRANSCEIVER/
TRANSMITTER
YP-150
anta
anni]
/
1
“3
al
asta
witt/on>wyput
ant
10)
(9)
6)
COAXIAL CABLE COAXIAL CABLE
