It is recommended that the FL-2000B is operated from its own 220 volt 10 amp or
greater circuit. If 117 or 100 volts is all that is available, it should be fused for 20
Amps, circuit conductors should be larger than #10 and no other equipment should
be operated from this circuit. Do NOT, under any circumstances, operate the FL-
2000B from a 115 volt lighting circuit, as the circuit conductors are not large enough
to carry this load.

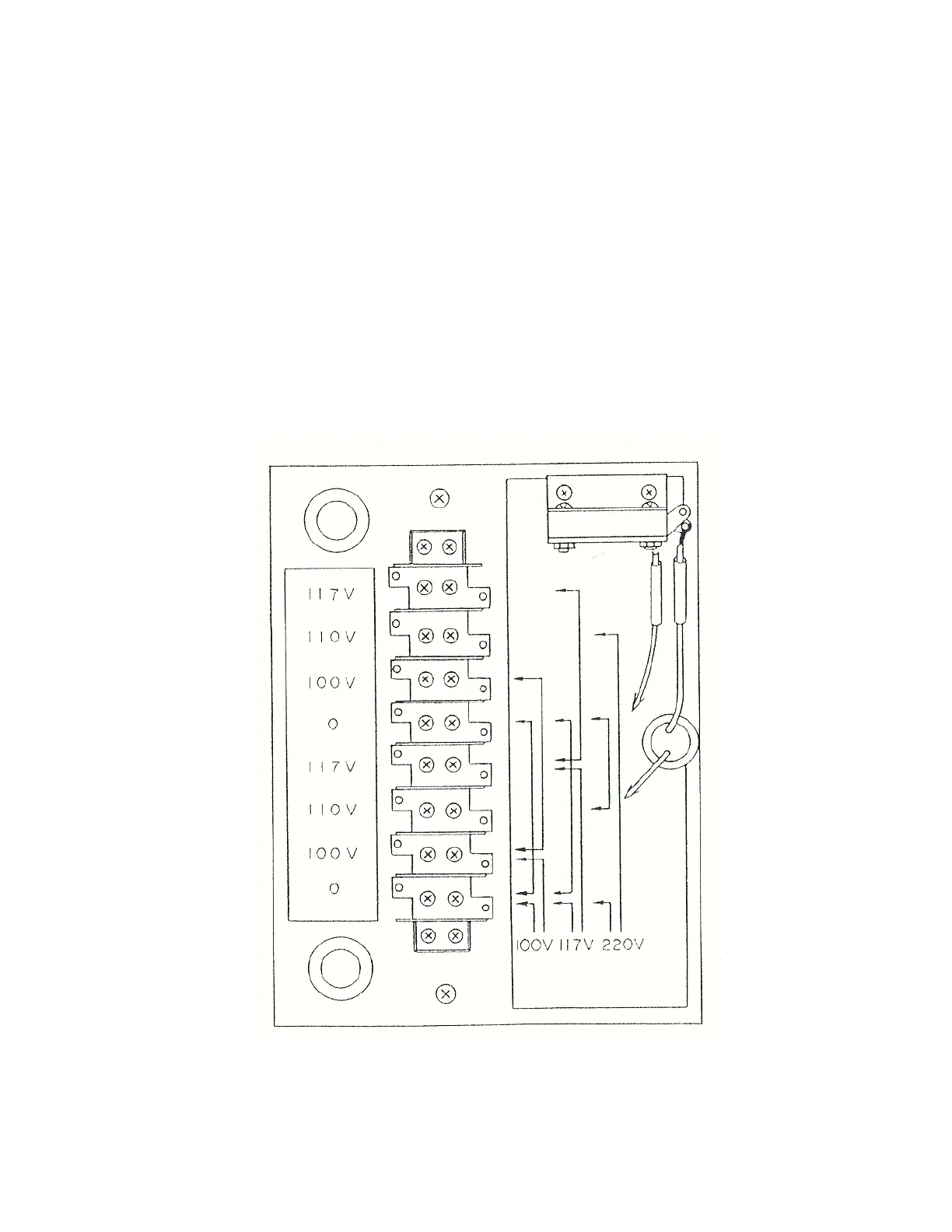

The following diagram shows the wiring connections for 1 10, 1 15 and 220 volt
operation. Connections must be made as shown or serious damage may result.
