Page 4

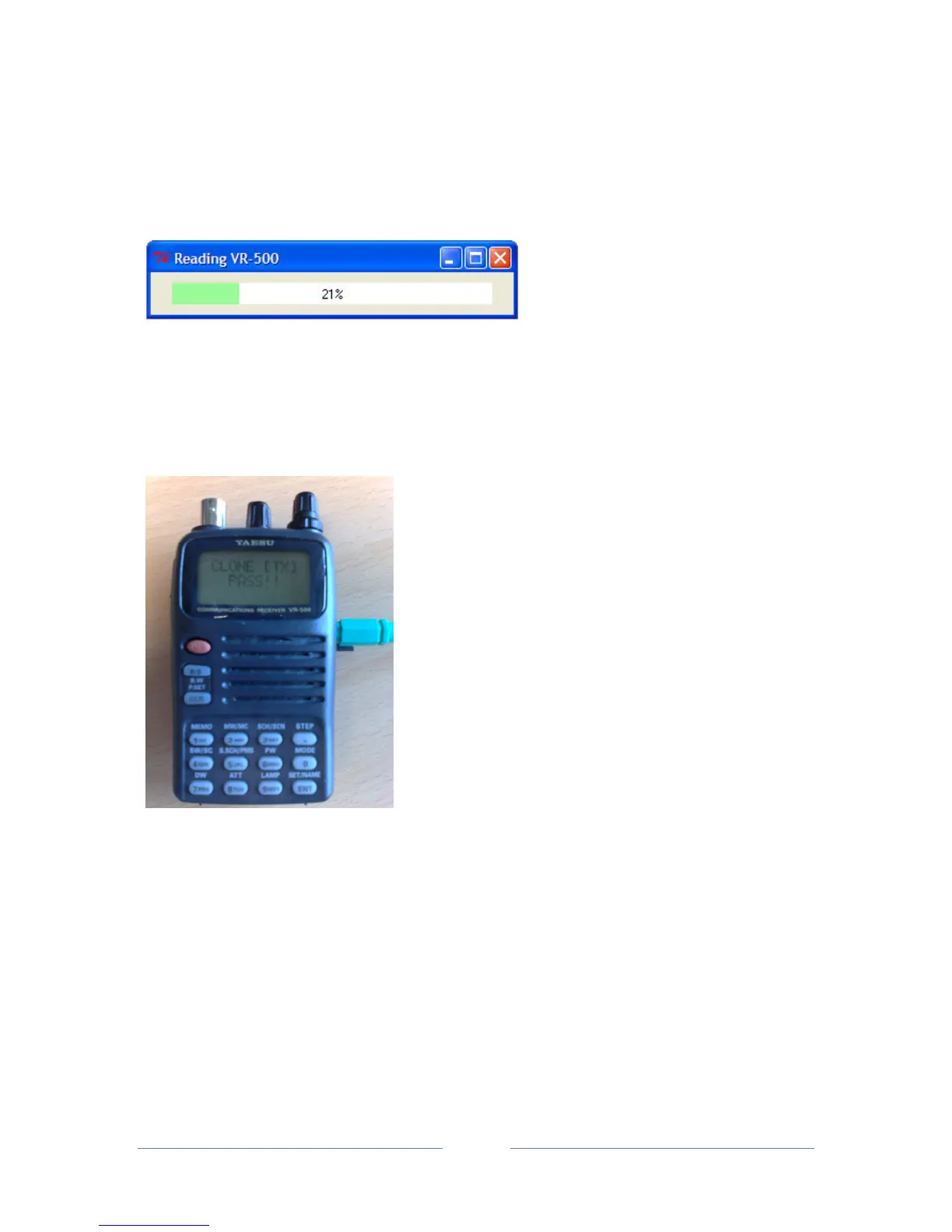

• The tk500 software will now copy the memory and config data from the VR-500. A window
will open in the tk500 software showing the read progress:
• When the read process is complete, a ‘Transfer Complete’ message will open in the tk500
software and the VR-500 will show the message ‘CLONE [TX] PASS!!’.
• Press ‘ ENT’ on the VR-500 and click the ‘OK’ button in the tk500 software.
• To save this data, go to File, Save As and name the file (this will have a .tk5 extension). The
memory channel information (frequency list) can be exported separately to a .csv file by
going to ‘File’ and choosing ‘Export memory channels’. Give the file the same name as the
.tk5 file.
