VX-8DR/DE OPERATING MANUAL 3

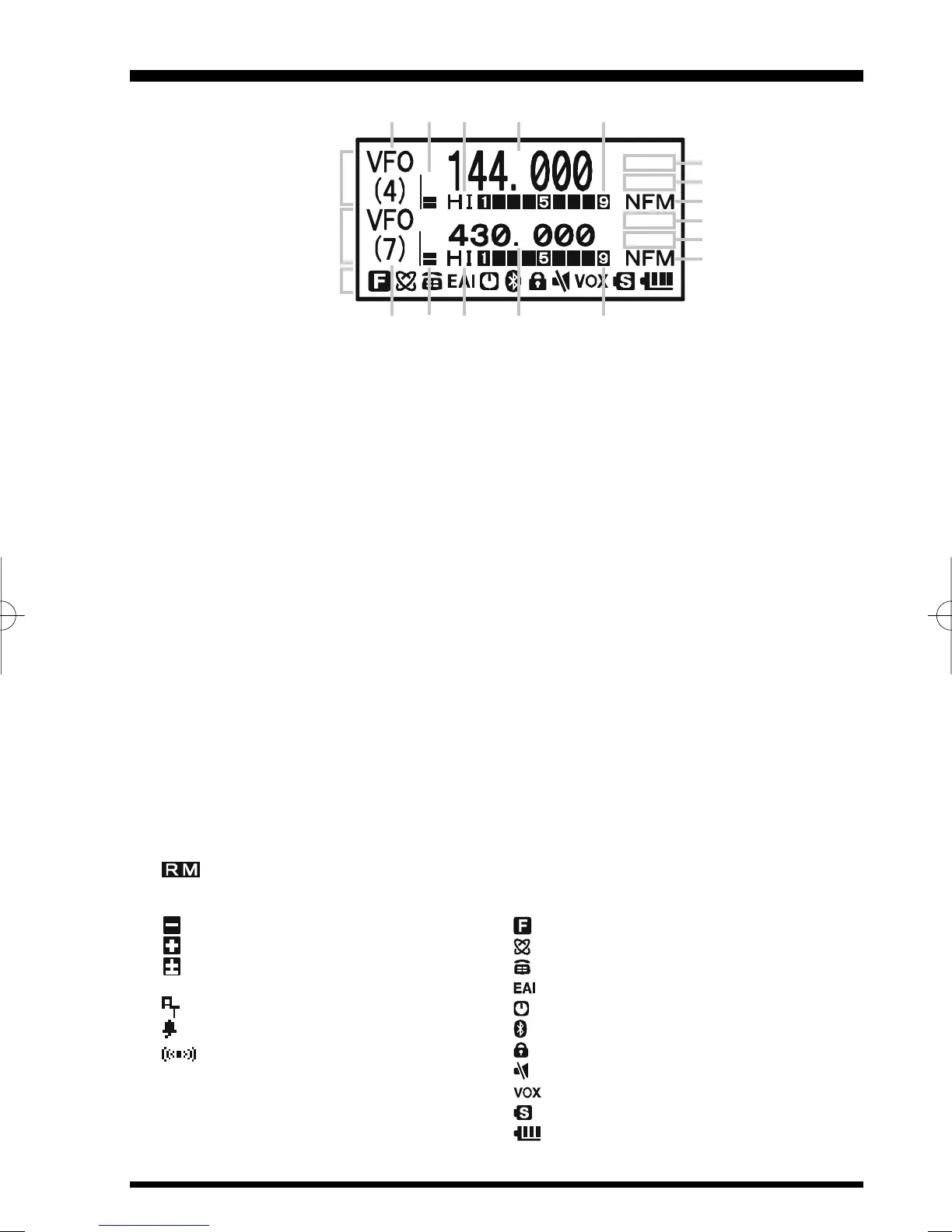

DISPLAY ICONS & INDICATORS
!
FREQUENCY CONTROL
VFO:VFO Mode
MR:Memory Mode
MT:Memory Tune Mode
HOM:Home Channel Memory
PMS:Programmable Memory Scan Mode
VDW:Dual Watch Active
(VFO-Memory Channel)
MDW:Dual Watch Active
(Memory Channel-Memory Channel)
"
SQUELCH TYPE & RADIO MODE
TN:Tone Encoder Active
TSQ:Tone Squelch Active
DCS:Digital Code Squelch Active
RTN:Reverse Tone Squelch Active
PR:User Programmed Reverse CTCSS Decoder Active
PAG:Enhanced Paging & Code Squelch (EPCS) Active
MSG:Message Feature Active
DC:Split Tone Feature Active (DCS Encode only)
T-D:Split Tone Feature Active (Encodes a CTCSS Tone and Decodes a DCS Code)
D-T:Split Tone Feature Active (Encodes a DCS Code and Decodes a CTCSS Tone)
A12:APRS
®
Feature Active (1200 bps)
A96:APRS
®
Feature Active (9600 bps)
:AM/FM Broadcast Reception
#
MISCELLANEOUS SETTING
:Repeater Shift Direction (Minus Shift)
:Repeater Shift Direction (Plus Shift)
:Independent Transmit Frequencies
(Odd Splits)
:Attenuator Active
:Bell Alarm Active
:Receiving an FM Stereo Signal
$
OPERATING MODE
NFM: FM
WFM: Wide FM
AM: AM
%
VOLUME LEVEL
&
TX POWER LEVEL
HI:High Power (5 W)
L3:LOW3 Power (2.5 W)
L2:LOW2 Power (1 W)
L1:LOW1 Power (0.02 W)
'
OPERATING FREQUENCY
(
S&PO METER
ICON
:Secondary Keypad Active
:Internet Connection Feature (WiRES
TM
) Active
:DTMF Autodialer Active
:Emergency Automatic ID (EAI) Feature Active
:Automatic Power-Off Active
: Bluetooth
®
Active
:Key Lock Active
:Mute Feature Active
:VOX Feature Active
:Battery Saver Active
:Battery Indicator
“B” Band
Display
Icon
"
#
$
"
#
$
!%&' (
&%!'(
“A” Band
Display
