Yale Electric Chain Hoist CPE
Yale
electric
14
1
9
7
4
8
6
3
2
5
15
19
21
24
28
17
25
29
12
13
15
20
18
21
20
11
10
14
26
27
22
23
16
22
23

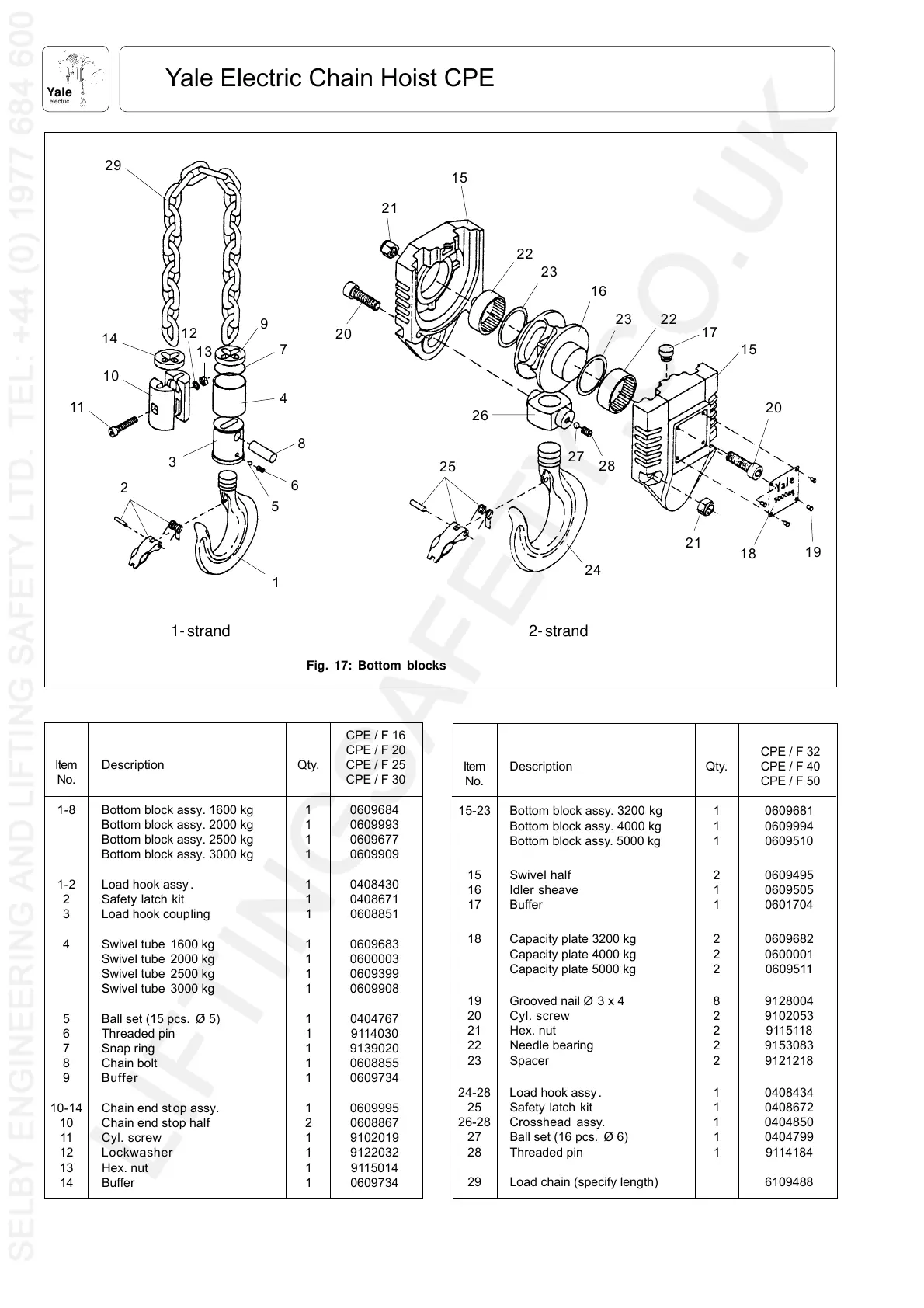

Fig. 17: Bottom blocks
1- strand
2- strand
CPE / F 16
CPE / F 20
Item Description Qty. CPE / F 25
No. CPE / F 30
1-8 Bottom block assy. 1600 kg 1 0609684
Bottom block assy. 2000 kg 1 0609993
Bottom block assy. 2500 kg 1 0609677
Bottom block assy. 3000 kg 1 0609909
1-2 Load hook assy .10408430
2 Safety latch kit10408671
3 Load hook coupling 1 0608851
4 Swivel tube 1600 kg 1 0609683
Swivel tube 2000 kg 1 0600003
Swivel tube 2500 kg 1 0609399
Swivel tube 3000 kg 1 0609908
5 Ball set (15 pcs. Ø 5) 1 0404767
6 Threaded pin 1 9114030
7 Snap ring 1 9139020
8 Chain bolt 1 0608855
9 Buffer 1 0609734
10-14 Chain end st op assy.10609995
10 Chain end stop half20608867
11 Cyl. screw 1 9102019
12 Lockwasher 1 9122032
13 Hex. nut 1 9115014
14 Buffer 1 0609734
CPE / F 32
Item Description Qty. CPE / F 40
No. CPE / F 50
15-23 Bottom block assy. 3200 kg 1 0609681
Bottom block assy. 4000 kg 1 0609994
Bottom block assy. 5000 kg 1 0609510
15 Swivel half 2 0609495
16 Idler sheave 1 0609505
17 Buffer 1 0601704
18 Capacity plate 3200 kg 2 0609682
Capacity plate 4000 kg 2 0600001
Capacity plate 5000 kg 2 0609511
19 Grooved nail Ø 3 x 4 8 9128004
20 Cyl. screw 2 9102053
21 Hex. nut 2 9115118
22 Needle bearing 2 9153083
23 Spacer 2 9121218
24-28 Load hook assy .10408434
25 Safety latch kit10408672
26-28 Crosshead assy. 1 0404850
27 Ball set (16 pcs. Ø 6) 1 0404799
28 Threaded pin 1 9114184
29 Load chain (specify length) 6109488
