Yale CPEF User Manual

Yale Electric Chain Hoist CPE
electric
Yale
19
28
5
11
10
12
9
2
1
18
19
8
6
15
16
22
17
27
24
29
32
30
24
4
3
7
1
12
15 + 18

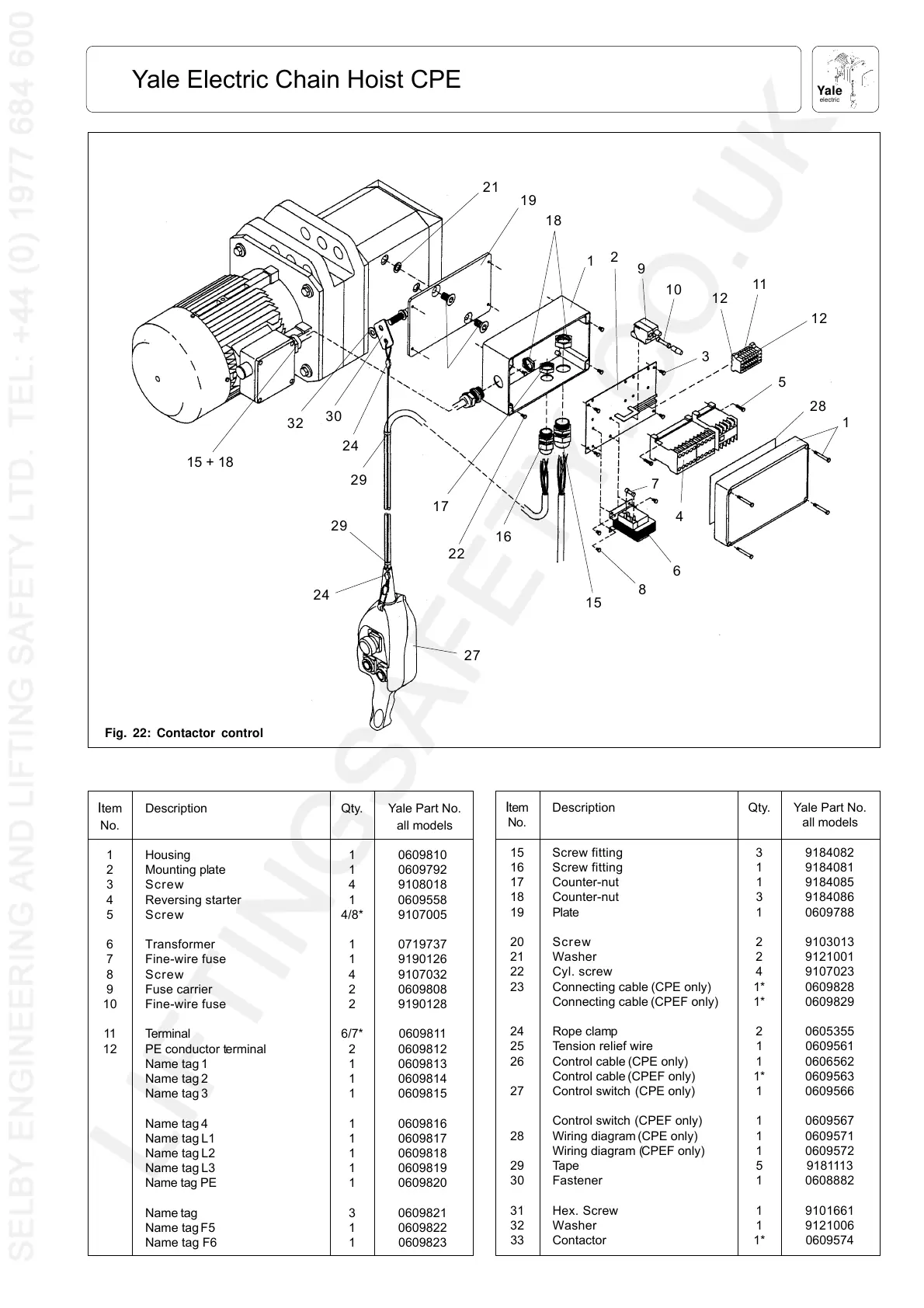

Fig. 22: Contactor control
29
21
Item Description Qty. Yale Part No.
No. all models
1 Housing 1 0609810
2 Mounting plate 1 0609792
3 Screw 4 9108018
4Reversing starter 1 0609558
5 Screw 4/8* 9107005
6 Transformer 1 0719737
7 Fine-wire fuse 1 9190126
8 Screw 4 9107032
9 Fuse carrier 2 0609808
10 Fine-wire fuse 2 9190128
11 Terminal 6/7* 0609811
12 PE conductor terminal 2 0609812
Name tag 110609813
Name tag 210609814
Name tag 310609815
Name tag 410609816
Name tag L1 1 0609817
Name tag L2 1 0609818
Name tag L3 1 0609819
Name tag PE 1 0609820
Name tag 3 0609821
Name tag F5 1 0609822
Name tag F6 1 0609823
Item Description Qty. Yale Part No.
No. all models
15 Screw fitting 3 9184082
16 Screw fitting 1 9184081
17 Counter-nut 1 9184085
18 Counter-nut 3 9184086
19 Plate 1 0609788
20 Screw 2 9103013
21 Washer29121001
22 Cyl. screw 4 9107023
23 Connecting cable (CPE only) 1* 0609828
Connecting cable (CPEF only) 1* 0609829
24 Rope clamp20605355
25 Tension relief wire 1 0609561
26 Control cable (CPE only) 1 0606562
Control cable (CPEF only) 1* 0609563
27 Control switch (CPE only) 1 0609566
Control switch (CPEF only) 1 0609567
28 Wiring diagram (CPE only) 1 0609571
Wiring diagram (CPEF only) 1 0609572
29 Tape 5 9181113
30 Fastener 1 0608882
31 Hex. Screw 1 9101661
32 Washer19121006
33 Contactor 1* 0609574
