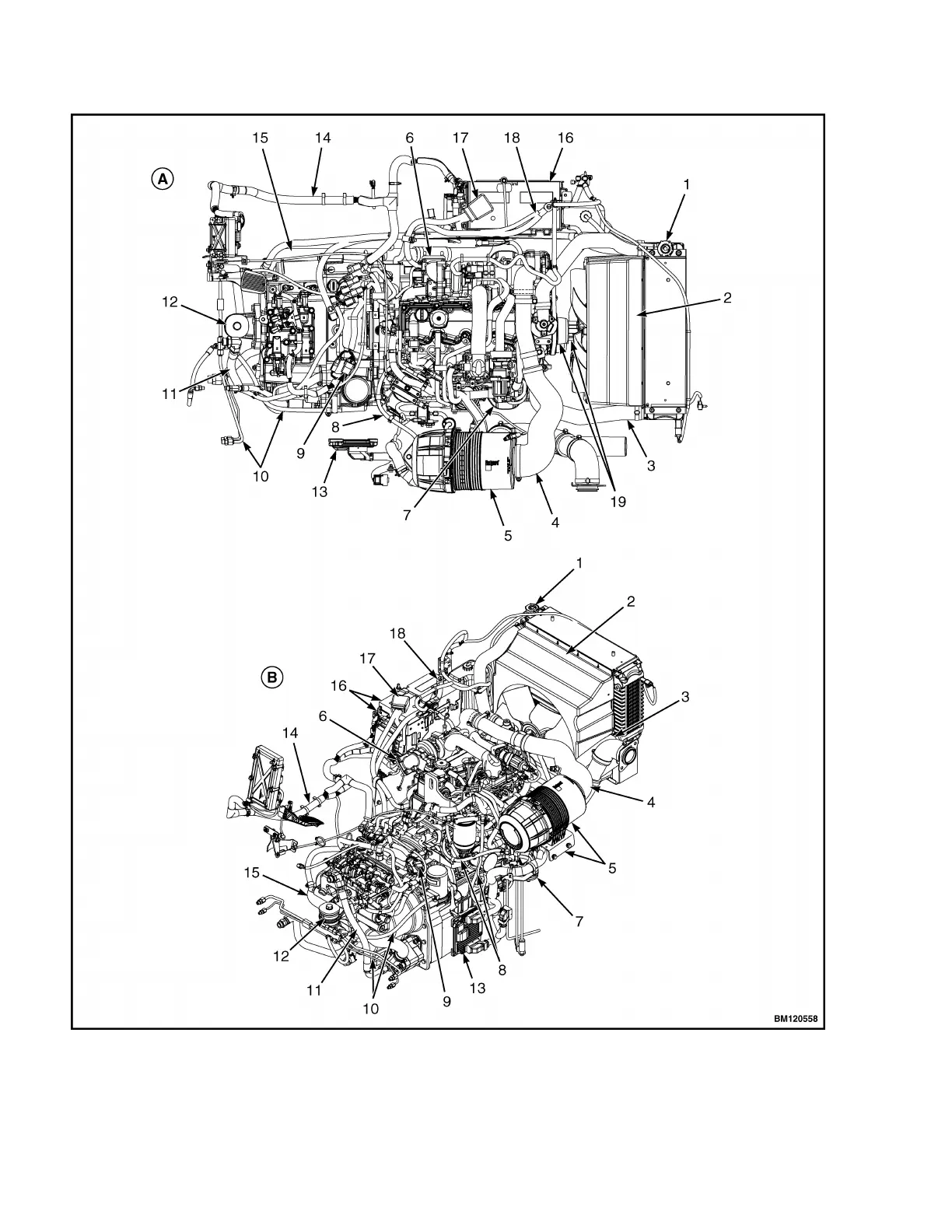

Figure 29. Kubota 3.8L Engine and Transmission for Lift Truck Models GLP/GDP40VX5/VX6; GLP/
GDP45SVX5,GLP/GDP45VX6, GLP/GDP50-55VX (GP/GLP/GDP080, 090, 100, 110, 120VX) (H813)
Manufactured After February, 2012.
Engine Replacement
0100 YRM 1243
40
43
45
