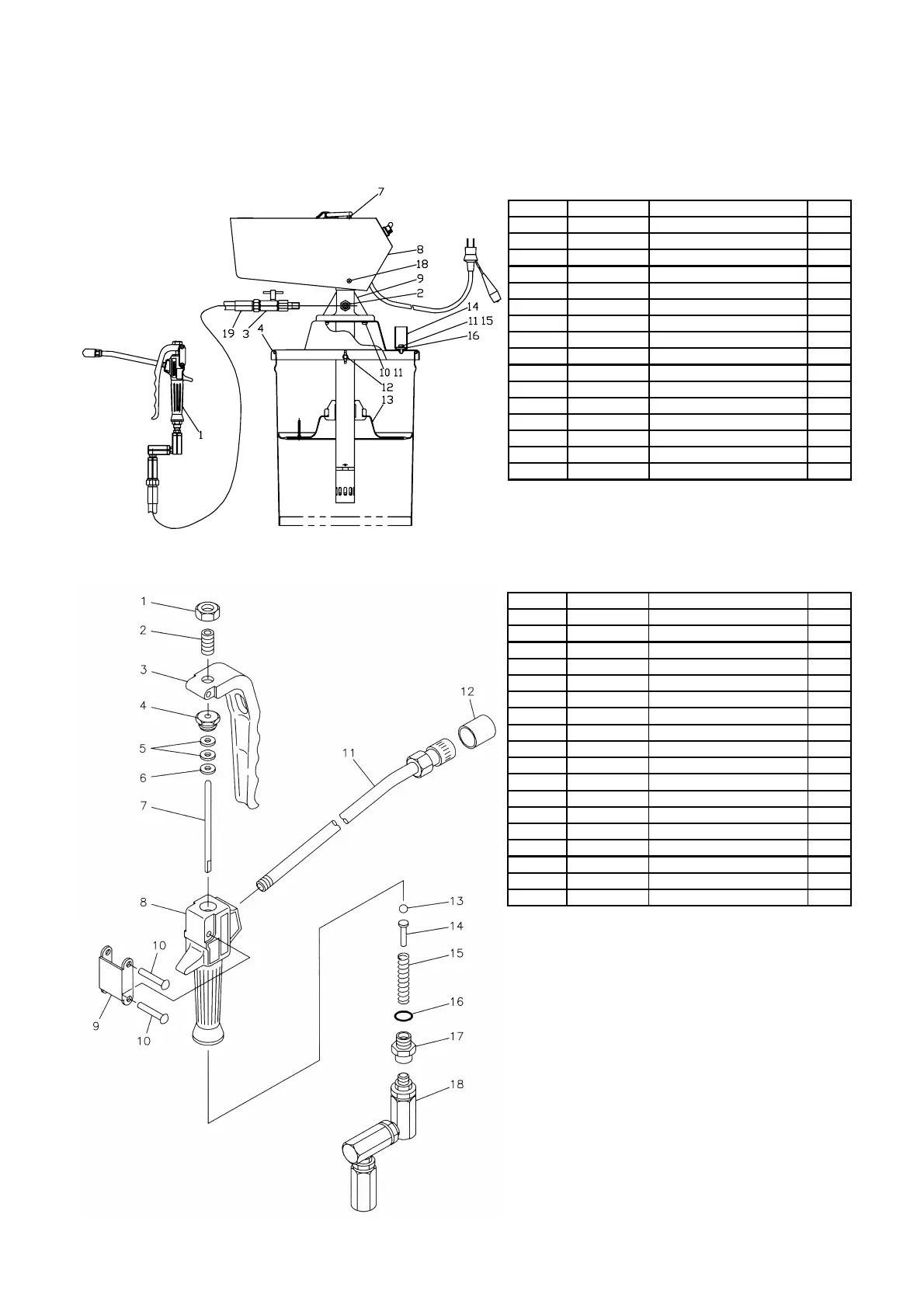

6. Parts Disassembly Drawing and Parts List
6.1 880899 EPL-100
6.2 851985 Grease gun
REF.No.
Parts No.
Descri
p
tion Q't
y
1 851985 Grease gun assembly 1
2 680080 Union adapter 1
3 803903 Valve kit 1
4 710915 Lid 1
7 683347 Screw with washe
r
2
8 803662 Cover assembly 1
9 852902 Grease pump assembly 1
10 602296 Pan-head screw 3
11 631418 Spring lock washe
r
4
12 610623 Wing bolt 3
13 803085 Follower plate assembly 1
14 707937 Gun holde
r
1
15 602298 Pan-head screw 1
16 707880 Plain washe
r
1
18 683860 Screw with washe
r
2
19 695034 Hose 1
REF.No.
Parts No.
Descri
p
tion Q't
y
1 627641 Nut 1
2 711750 Bolt 1
3 711354 Lever 1
4 711444 Retaining nut 1
5 772160 Packing 2
6 713638 Washer 1
7 711357 Rod 1
8 711352 Body 1
9 711351 Link 1
10 683201 Rivet 2
11 800531 Nozzle assembly 1
12 685728 Cap 1
13 630314 Ball 1
14 711445 Spring retainer 1
15 711446 Spring 1
16 640011 O ring 1
17 710971 Union 1
18 802910 Swivel joint assembly 1
REF No.3,8,9 and No.10 are undissolution.
