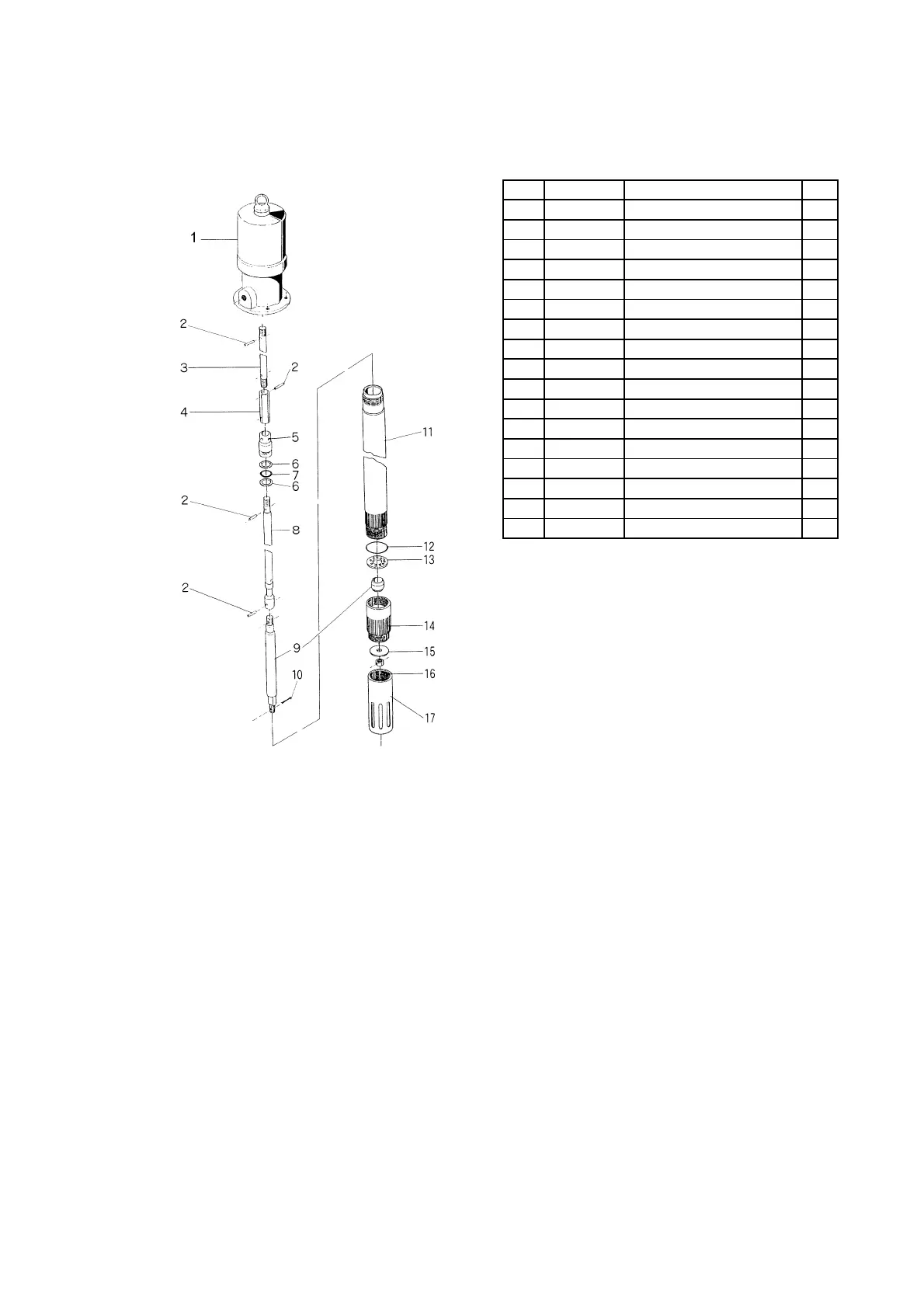

6.3 Pump Ass’y (851779)
<Note>
- If disassembly is required, ask the dealer to disassemble the air motor.
- As for the specialist of the dissolution, refer to the instruction manual.
(Separately APP 001 U : Maintenance Manual for Grease Pump )
No. Parts No. Descriptions Q’ty
1 802497 Air motor Ass’y 1
2 632773 Spring pin 4
3 710745 Conn. rod 1
4 710736 Socket 1
5 710619 Piston 1
6 771367 Back-up ring 2
7 682926 O-ring 1
8 710737 Connecting rod 1
9 802499 Plunger Ass’y 1
10 632032 Cotter pin 1
11 710739 Cylinder 1
12 682922 O-ring 1
13 701600 Valve stopper 1
14 710620 Valve case 1
15 710622 Shovel 1
16 627012 Nut 1
17 710621 Booster cover 1
