2-13
GB
EMD63110

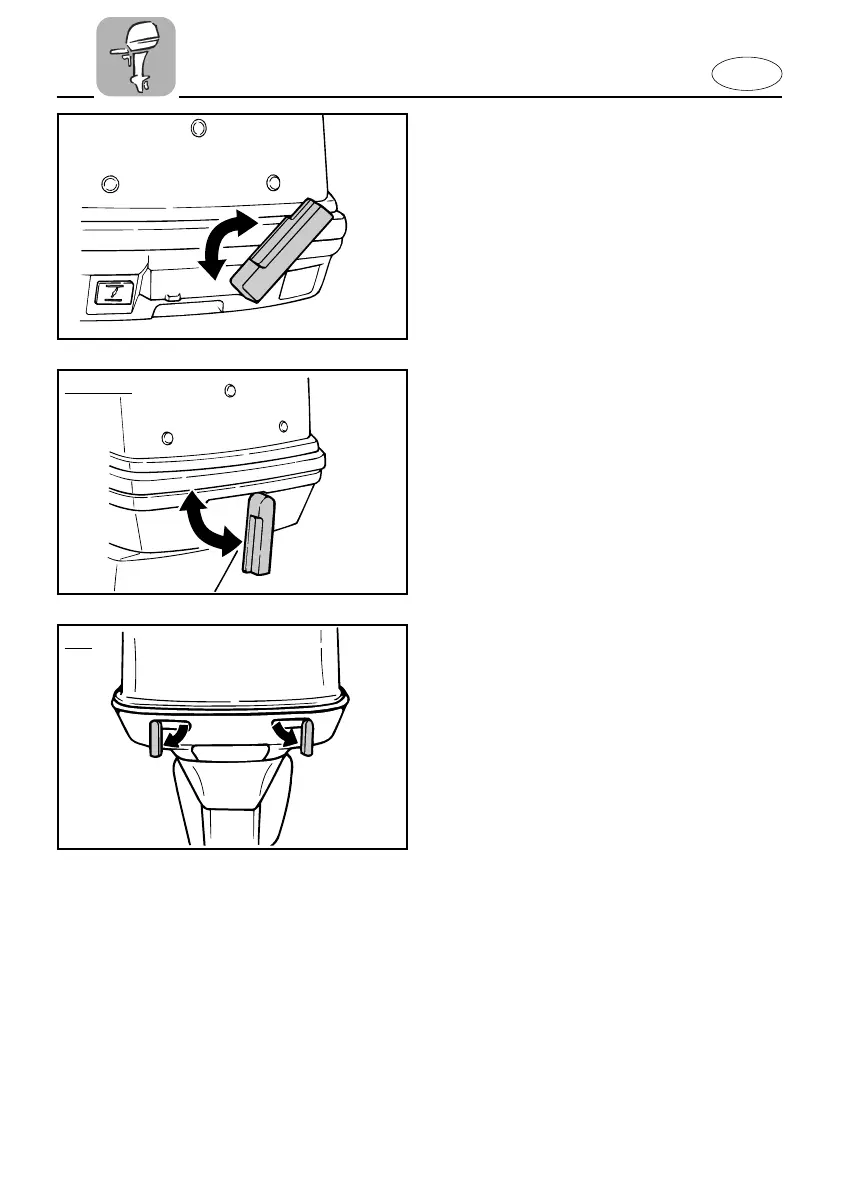

TOP COWLING LOCK LEVERS
To remove the engine top cowling, pull
up the front lock lever and push the rear
lock lever(s) down. Then lift off the cowl-
ing. When replacing the cowling, check to
be sure it fits properly in the rubber seal.
Then lock the cowling again by returning
the levers to the locked position.
301042
301041
55/75/85
301043
115
697-9-75 (GB,F,ES)2B 5/8/01 2:53 PM Page 18
