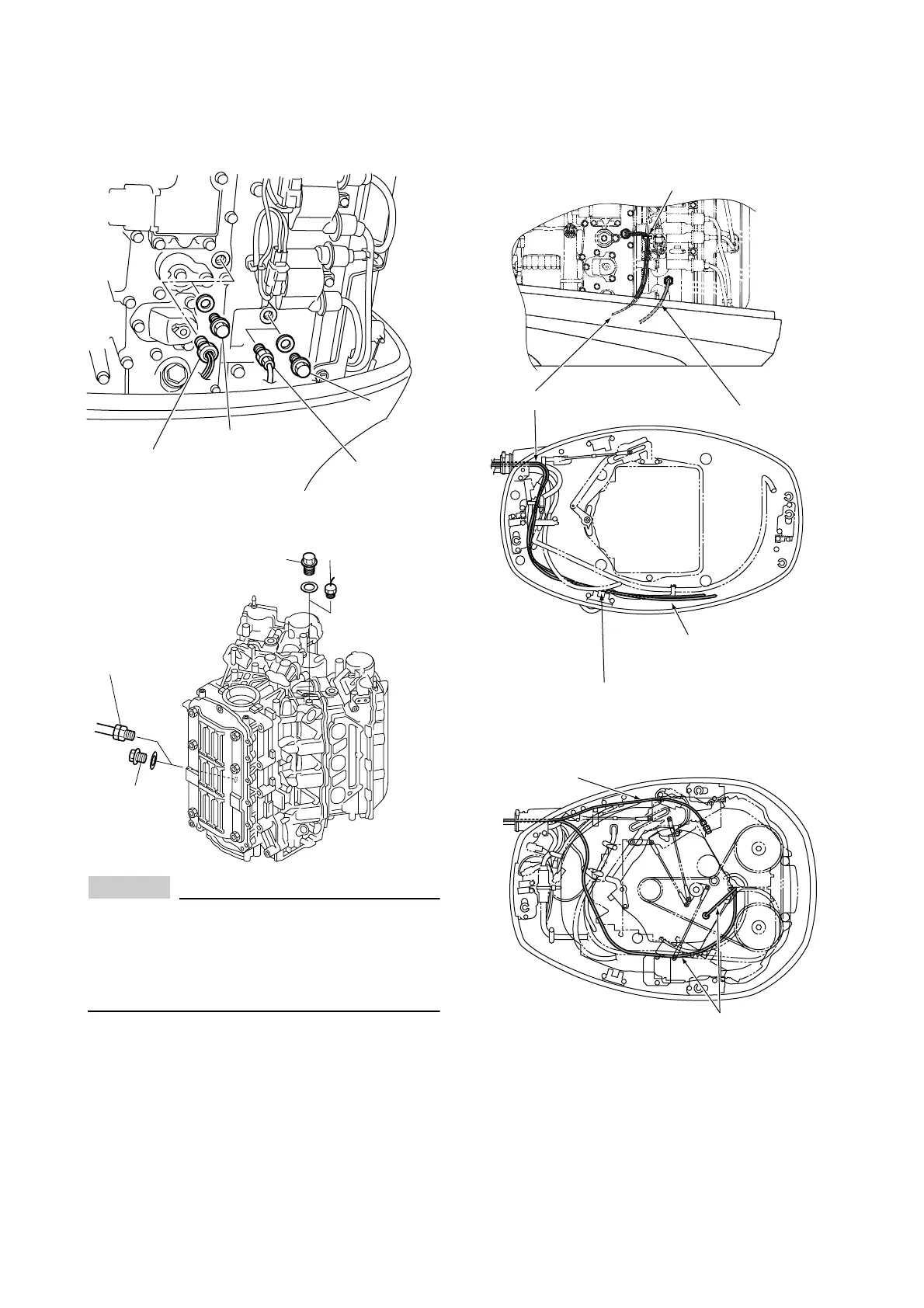

COOLANT TEMP. METER
SENDER INSTALLATION
F150
F200, F225
NOTICE
Install the coolant pressure sender on the
port side cylinder. If it is installed on the
top of the starboard side cylinder, the
sender tube could cause a damage by hard
bending.
ROUTING THE COOLANT TEMP. LEAD
& COOLANT PRESS. TUBE
F150
F200, F225
(1)
(2)
(1)
(2)
Coolant temp.
sender
Coolant press.
sender
(1)
(1)
(2)
Coolant press.
sender
(2)
Coolant press.
sender
Coolant temp. lead
Coolant press. tube
Water press. tube
Secure with clamp coolant temp. lead first
Secure with clamp
Coolant press. tube
Coolant temp. lead

Yamaha 130BETO Specifications

General

Horsepower	130 hp
Full Throttle RPM Range	5, 000 - 6, 000 rpm
Starting System	Electric
Displacement	1832 cc
Max Power Output	130 HP @ 5, 500 RPM
Fuel Tank Capacity	N/A (External)
Shaft Length	20 in (Long shaft)
Gear Ratio	2.15:1
Alternator Output	35 A
Engine Type	4-Stroke, SOHC
Cylinder(s)	4
