Yamaha 130BETO User Manual

5-42
Fuse
Trim meter
6Y7-83670-40 (BLK)
-50 (WHT)
Lamp switch
SpeedometerCharge
warning unit
Water pressure
meterVoltage meterDigital hour meter
Mechanical
hour meterFuel meter
Thermo sender Fuel sender
Engine is
running
Main switch is
“ON”
Water temperature
meter
Charge lamp
Tachometer
6Y7-83540-80 (BLK)
-90 (WHT)
Y
A
MA
H
A
6Y5-83553-00 (2.5 m)
6Y5-83653-00 (5 m)
-10 (6 m) -20 (7 m) -30 (8 m)
-40 (9 m) -50 (10.5 m)
6Y5-82521-00 6Y5-82149-00 6Y5-82117-00
688-82520-00

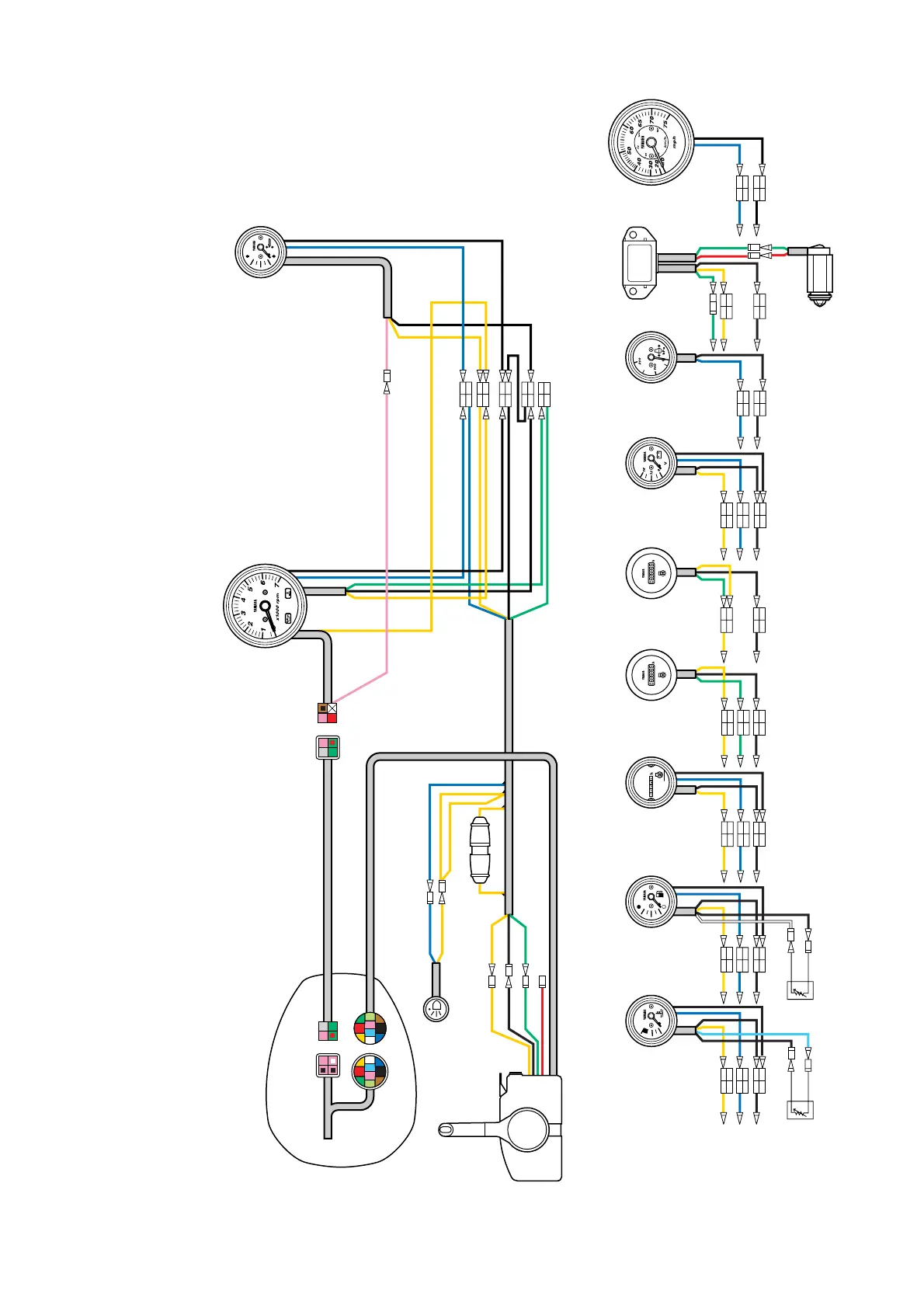

WIRING DIAGRAMS
ANALOG METER (6Y7)
2- AND 4-STROKE ENGINES
40 [3-cyl.]-300 w/ oil injection (except L/250G),
F30-F250

Yamaha 130BETO Specifications

General

Horsepower	130 hp
Full Throttle RPM Range	5, 000 - 6, 000 rpm
Starting System	Electric
Displacement	1832 cc
Max Power Output	130 HP @ 5, 500 RPM
Fuel Tank Capacity	N/A (External)
Shaft Length	20 in (Long shaft)
Gear Ratio	2.15:1
Alternator Output	35 A
Engine Type	4-Stroke, SOHC
Cylinder(s)	4
