REMOTE CONTROL APPLICATIONS

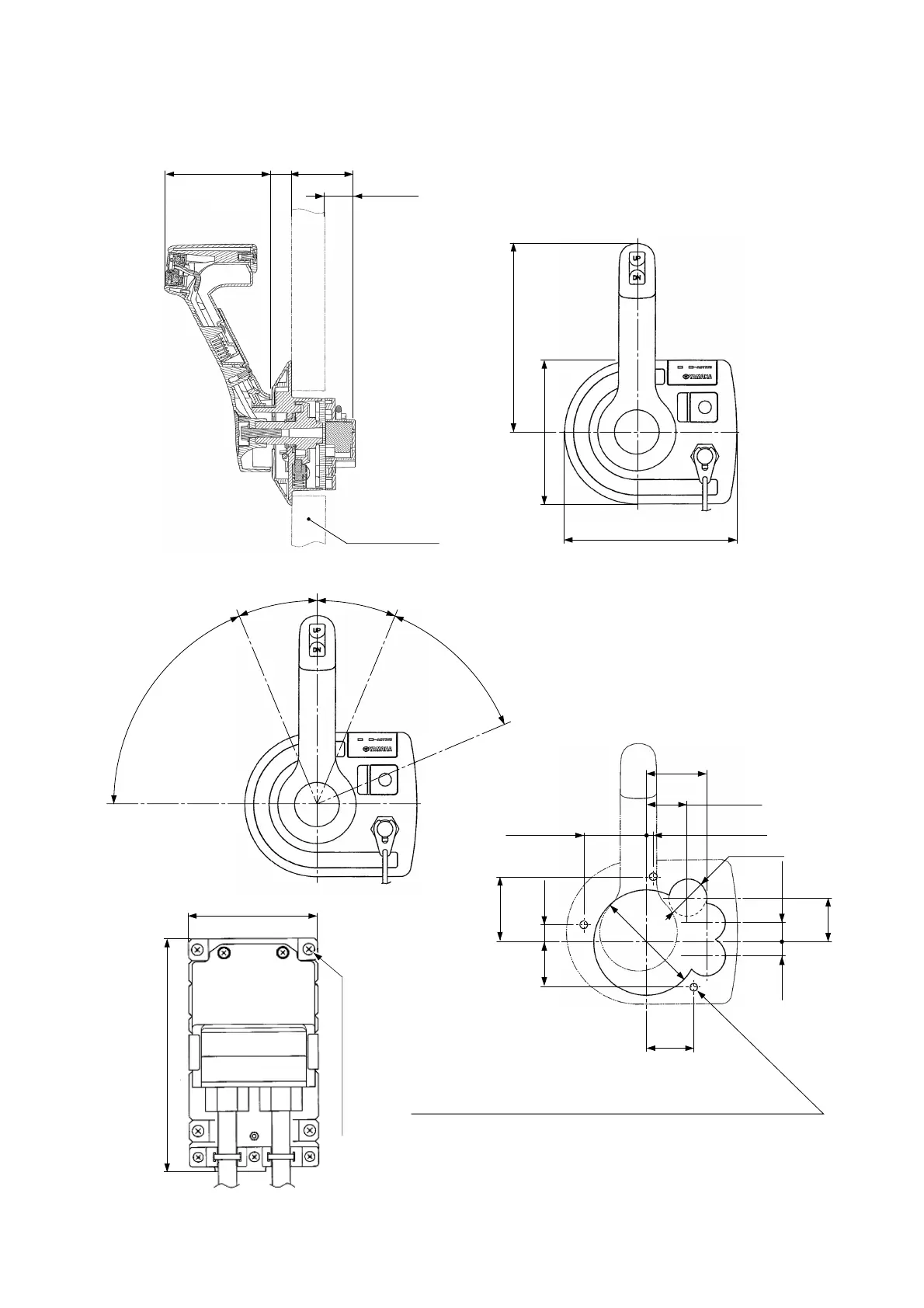

6X7 REMOTE CONTROL DIMENSIONS
213 (8.39)
ECM bracket
116 (4.57)
M6 tapping mount screw
F
N
R
Throttle range
Throttle range
Shift
range
Shift
range
22.5
deg.
22.5
deg.
Max.
67 deg.
Max.
90 deg.
Template
* Wire-harness length:
approx. 2 m (6.5 ft)
170 (6.69)
130 (5.12)
155 (6.10)
59.5 (2.34)
16.5
(0.65)
40.5
(1.59)
43
(1.69)
56.5 (2.22) 6.4 (0.25)
35 (1.38)
38 (1.50)
54.4
(2.14)
Make three 7 mm (9/32 in) holes for mounting with bolts and nuts.
Drill 4 mm (5/32 in) holes for tapping screws, if the board is thicker
than 20 mm (0.79 in).
12.7
(0.50)
17.5
(0.69)
39.5
(1.56)
27 (1.06)
57
(2.24)
18
(0.71)
96.2
(3.79)
95 (3.74) 95 (3.74)
Mount board
mm (in.)

Yamaha 130BETO Specifications

General

Horsepower	130 hp
Full Throttle RPM Range	5, 000 - 6, 000 rpm
Starting System	Electric
Displacement	1832 cc
Max Power Output	130 HP @ 5, 500 RPM
Fuel Tank Capacity	N/A (External)
Shaft Length	20 in (Long shaft)
Gear Ratio	2.15:1
Alternator Output	35 A
Engine Type	4-Stroke, SOHC
Cylinder(s)	4
