1-8
GEN
INFO
E

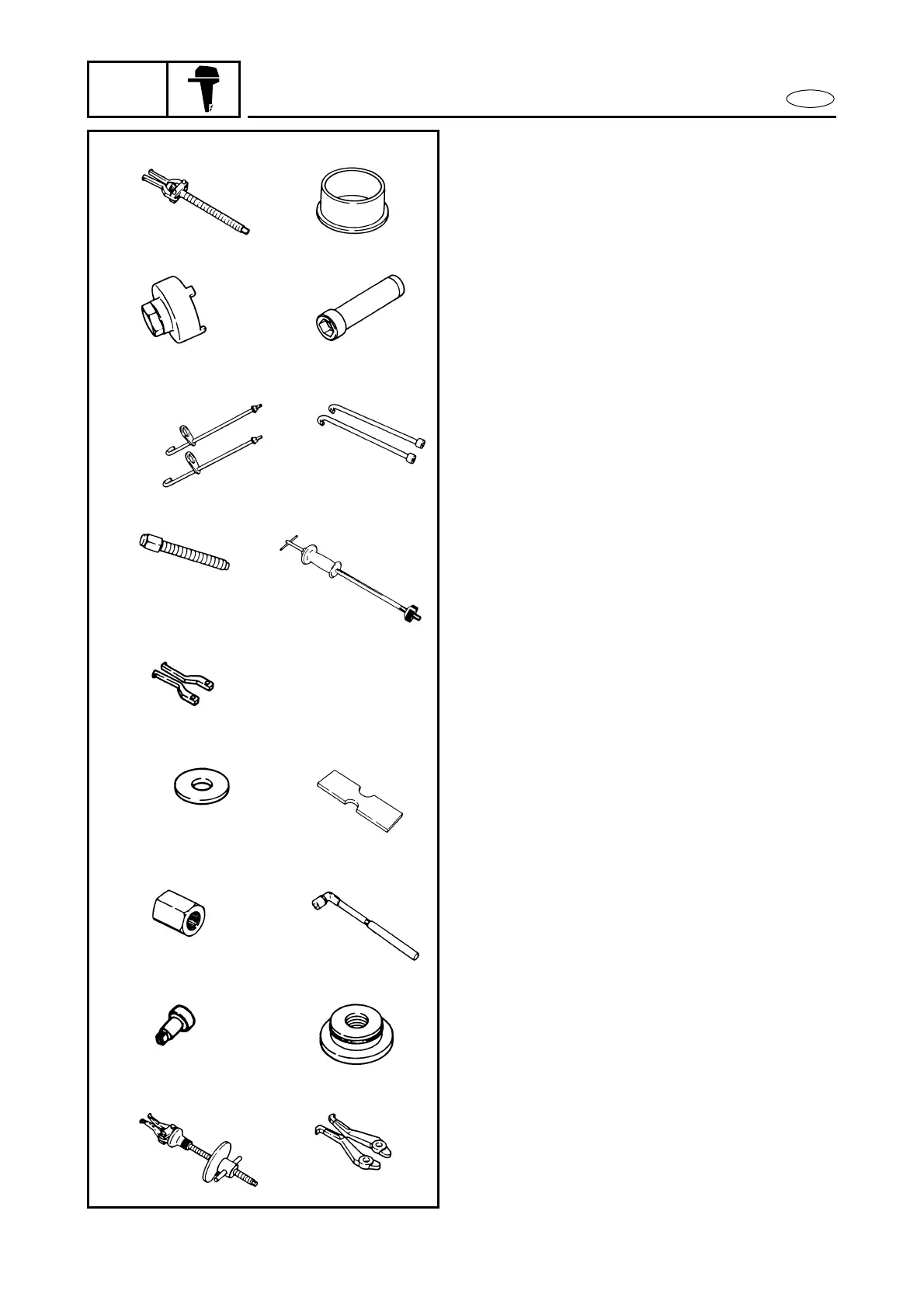

SPECIAL TOOLS
A Bearing puller
P/N. 90890-06535
B Bearing/oil seal attachment
P/N. 90890-06659, 90890-06660,
90890-06661, 90890-06662
C Ring nut wrench
P/N. YB-34447
90890-06512
D Ring nut wrench extension
P/N. YB-06513
90890-06513
E Propeller shaft housing puller
P/N. YB-06207 ................................ a
YB-06502 ................................ b
90890-06502
F Center bolt
P/N. 90890-06504
G Slide hammer
P/N. YB-06096
90890-06531
H Small universal claws
P/N. 90890-06536
I Bearing/oil seal depth plate
P/N. YB-06213, YB-34474 .............. a
90890-06603 ........................... b
J Drive shaft holder
P/N. YB-06201
90890-06520
K Pinion nut holder
P/N. 90890-06505
L Pinion nut holder attachment
P/N. 90890-06508
M Bearing/oil seal attachment
P/N. 90890-06609, 90890-06612,
90890-06631, 90890-06633,
90890-06636, 90890-06653
N Bearing puller
P/N. YB-06029, YB-06247
90890-06523
O Large universal claws
P/N. 90890-06532
AB
CD
FG
H
JK
LM
NO
E
ba
I
ba
