3-2
E
INSP
ADJ

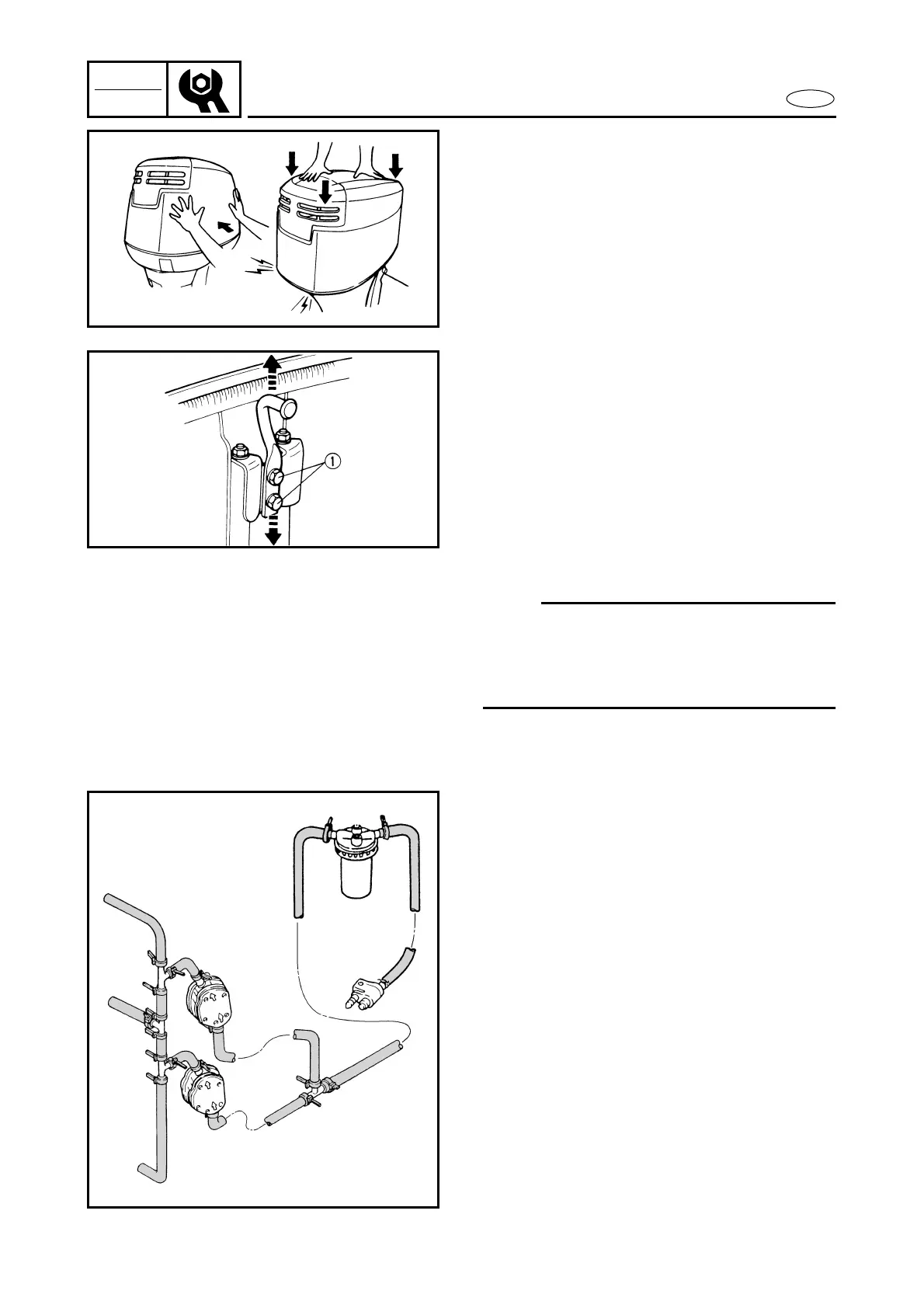

TOP COWLING/FUEL SYSTEM
TOP COWLING 3
INSPECTING THE TOP COWLING FIT 3
1. Inspect:
• Top cowling fitting
Loose/unlatched
→
Adjust the top
cowling hook.
3010
2. Adjust:
• Top cowling hook position
Adjustment steps
(1) Loosen the bolts
1
approximately 1/4
of a turn.
(2) Move the top cowling hook either up
or down slightly.
(3) Secure the bolts.
(4) Check the top cowling fitting and
repeat the adjustment if necessary.
NOTE:
• Moving the latch towards the seal will
loosen the top cowling.
• Moving the latch away from the seal will
tighten the top cowling.
3020
FUEL SYSTEM 3
INSPECTING THE FUEL LINE 3
1. Inspect:
• Plastic locking tie
Loosen
→
Retighten or replace.
2. Inspect:
• Fuel line
Cracks/damage/leaks
→
Replace.
Refer to “FUEL JOINT AND FUEL FIL-
TER” on page 4-1.
Refer to “FUEL PUMP” on page 4-6.
3030
