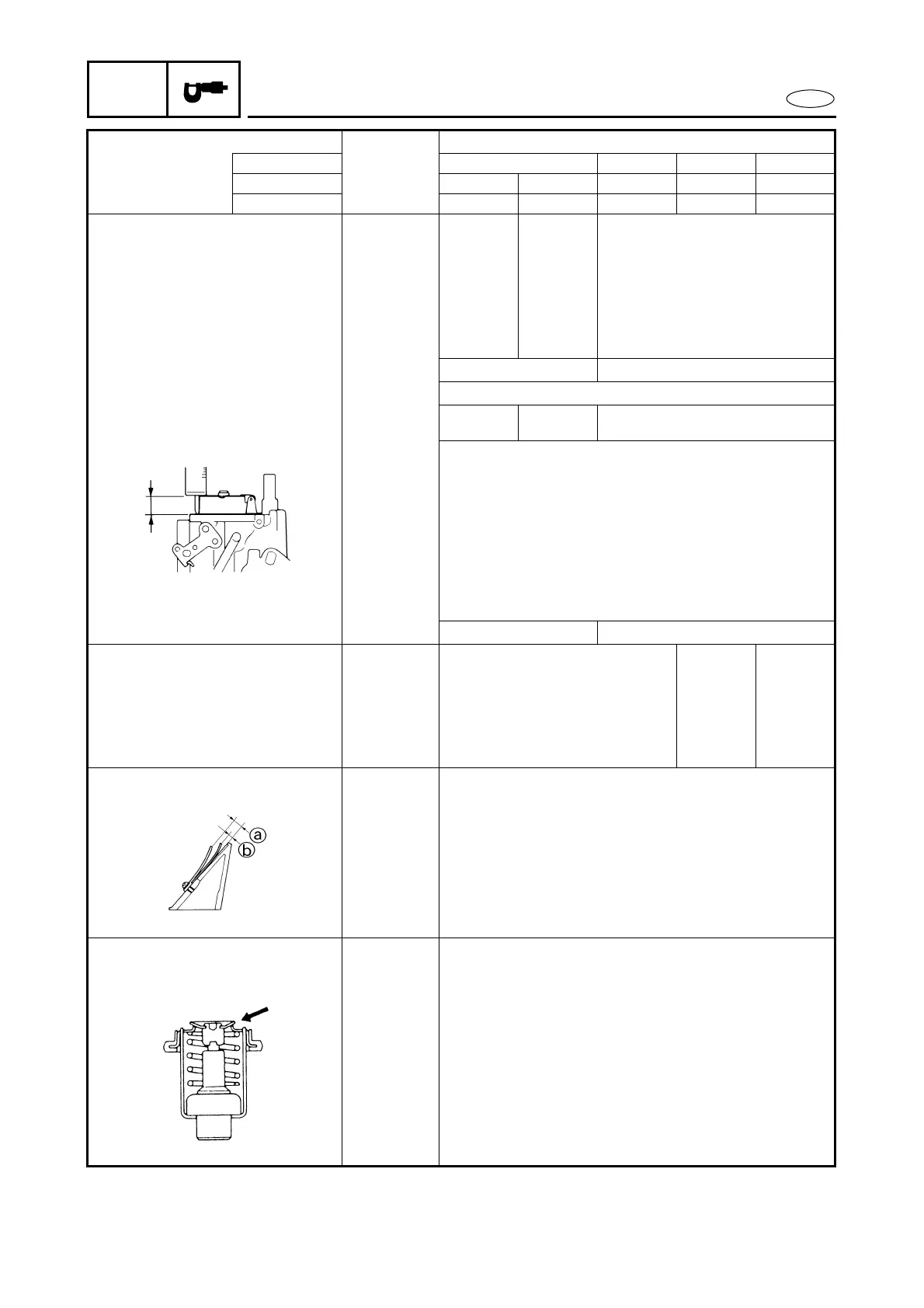

MAINTENANCE SPECIFICATIONS
Item Unit
Model
Worldwide L200FETO 200GETO 225DET 225DETO
USA — L200TR P200TR — —
Canada — — P200TR — —
CARBURETORS
ID mark 64E00 64ES0 64F00
Main jet #
150,152 (SL)*,
154 (PU, PM)*,
158 (PL)*
146 150, 154 (PU, PM)*,
158 (PL)*
Main air jet # 270 310 260
Main nozzle (inside diameter) mm (in)
4.5 (0.18) 4.0 (0.16)
4.5 (0.18)
Pilot jet # 84 80
Pilot air jet # 60
Pilot screw Turn out
1-1/8 ± 1/4 1-1/8 ± 1/4 (S)*
5/8 ± 1/4 (P)*
1-1/4 ± 1/4 (S)*
3/4 ± 1/4 (P)*
Float height mm (in) 16.0 ± 0.5 (0.63 ± 0.02)
Valve seat diameter mm (in) 1.2 (0.05)
Idling speed r/min 700 ± 25
Trolling speed r/min 575 ± 25 600 ± 25
OIL INJECTION PUMP
ID mark 6R510 — 6R510
Oil discharge (for 3 minutes)
cm
3
(US oz,
Imp oz) @
1,500 r/min
4.8 ± 1.1
(0.162 ± 0.037, 0.169 ± 0.039)
—
4.8 ± 1.1
(0.162 ± 0.037,
0.169 ± 0.039)
Bleeding Screw type —
Screw type
REED VALVES
Reed valve stopper height a mm (in) 6.5 ± 0.3 (0.26 ± 0.01)
Warpage limit b mm (in) 0.2 (0.008)
THERMOSTATS
Opening temperature ˚C (˚F) 48 - 52 (118 - 126)
Full-open temperature ˚C (˚F) 60 (140)
Valve open lower limit mm (in) 3 (0.12)
*: (P) Port (PM) Port middle (S) Starboard
(PL) Port lower (PU) Port upper (SL) Starboard lower
