5 - 46
CHAS
EC560000

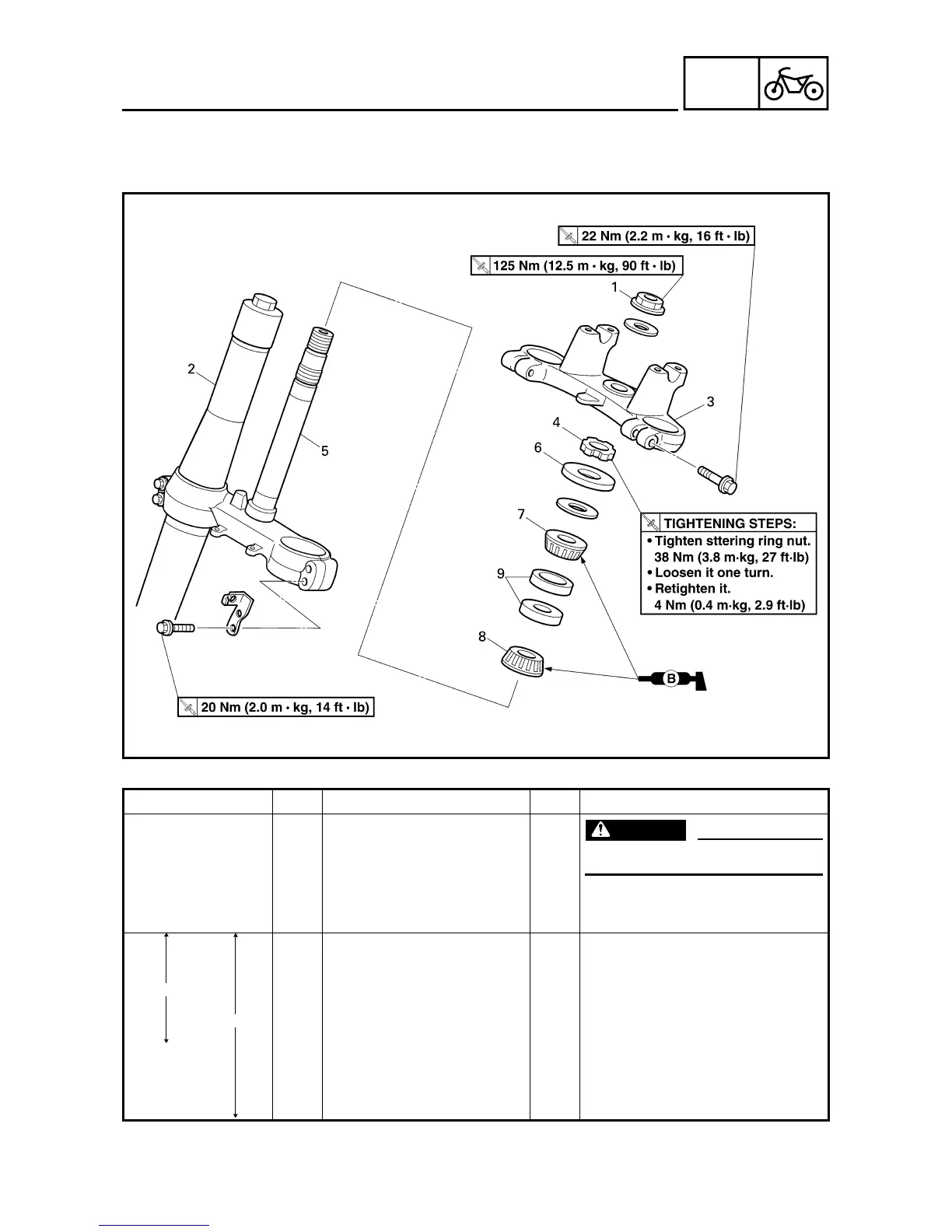

STEERING
5PAR0017
Extent of removal:
1
Lower bracket removal
2
Bearing removal
Extent of removal Order Part name Q’ty Remarks
STEERING REMOVAL
WARNING
Support the machine securely so there is no
danger of it falling over.
Refer to “HANDLEBAR” section.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
Number plate
Handlebar
Cable guide
Front fender
1 Steering stem nut 1
2 Front fork 2 Refer to “FRONT FORK” section.
3 Upper bracket 1
4 Steering ring nut 1 Use special tool.
Refer to “REMOVAL POINTS”.
5 Lower bracket 1
6 Ball race cover 1
7 Upper bearing 1
8 Lower bearing 1 Refer to “REMOVAL POINTS”.
9Ball race 2Refer to “REMOVAL POINTS”.
2
1
STEERING

Yamaha 2003 yz85 Specifications

General

Displacement	84.7cc
Ignition	CDI
Final Drive	Chain
Front Tire	70/100-17
Rear Tire	90/100-14
Bore x Stroke	47.5 mm x 47.8 mm
Transmission	6-speed
Front Brake	Single disc
Rear Brake	Single disc
