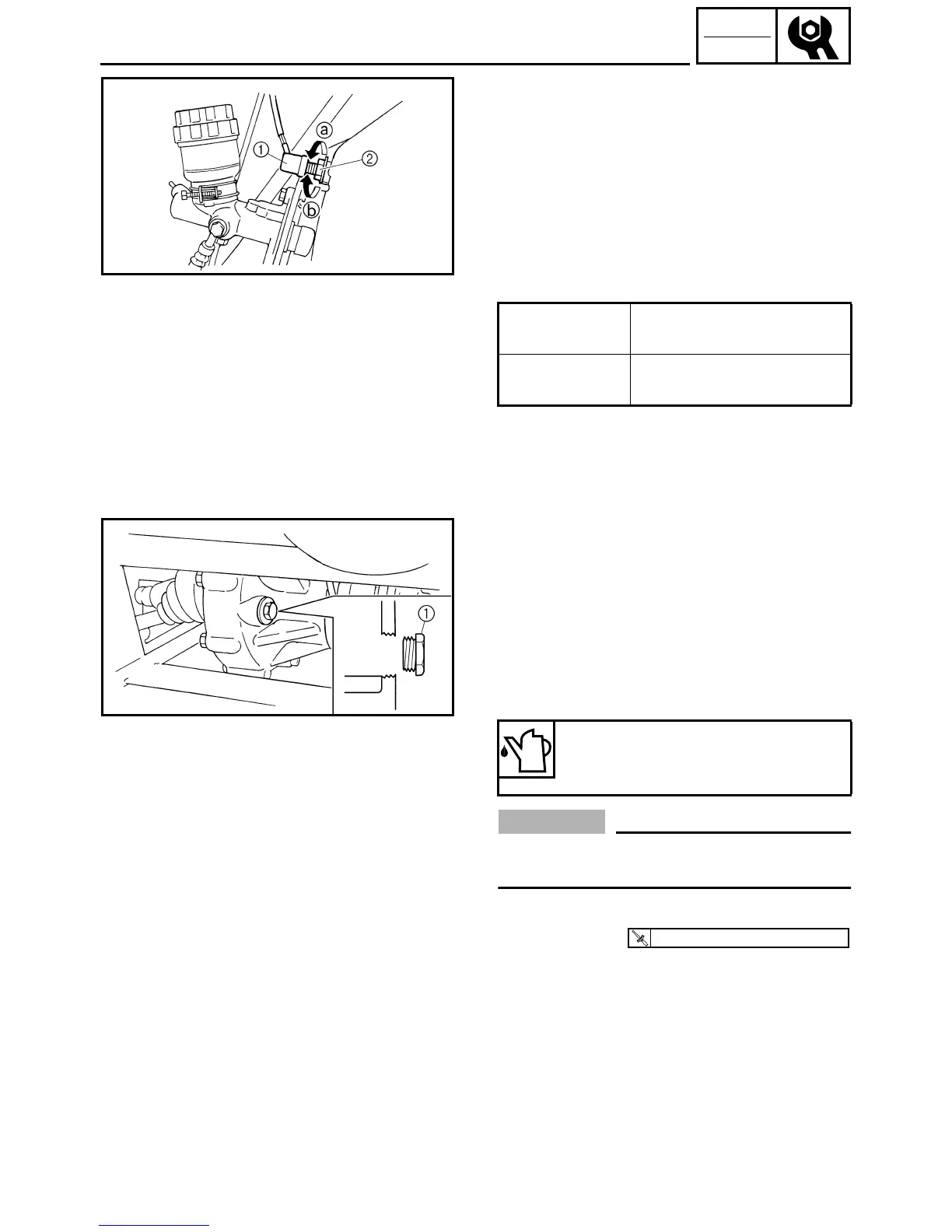

ADJUSTING THE BRAKE LIGHT SWITCH/
CHECKING THE FINAL GEAR OIL LEVEL
1. Check:
• brake light operation timing
Incorrect → Adjust.
2. Adjust:
• brake light operation timing
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Hold the main body 1 of the brake light
switch so that it does not rotate and turn the
adjusting nut 2 in direction a or b until the
brake light comes on at the proper time.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Direction
a
Brake light comes on
sooner.
Direction
b
Brake light comes on
later.
CHECKING THE FINAL GEAR OIL LEVEL
1. Place the vehicle on a level surface.
2. Remove:
• oil filler plug 1
3. Check:
• oil level
Oil level should be up to the brim of the
hole.
Oil level low → Add oil to the proper level.
CAUTION:
Take care not allow foreign material to
enter the final gear case.
4. Install:
• oil filler plug
Recommended oil
SAE 80 API “GL-4” Hypoid gear
oil
T
R
.
.
23 Nm (2.3 m
·
kg, 17 ft
·
lb)
