CHAS

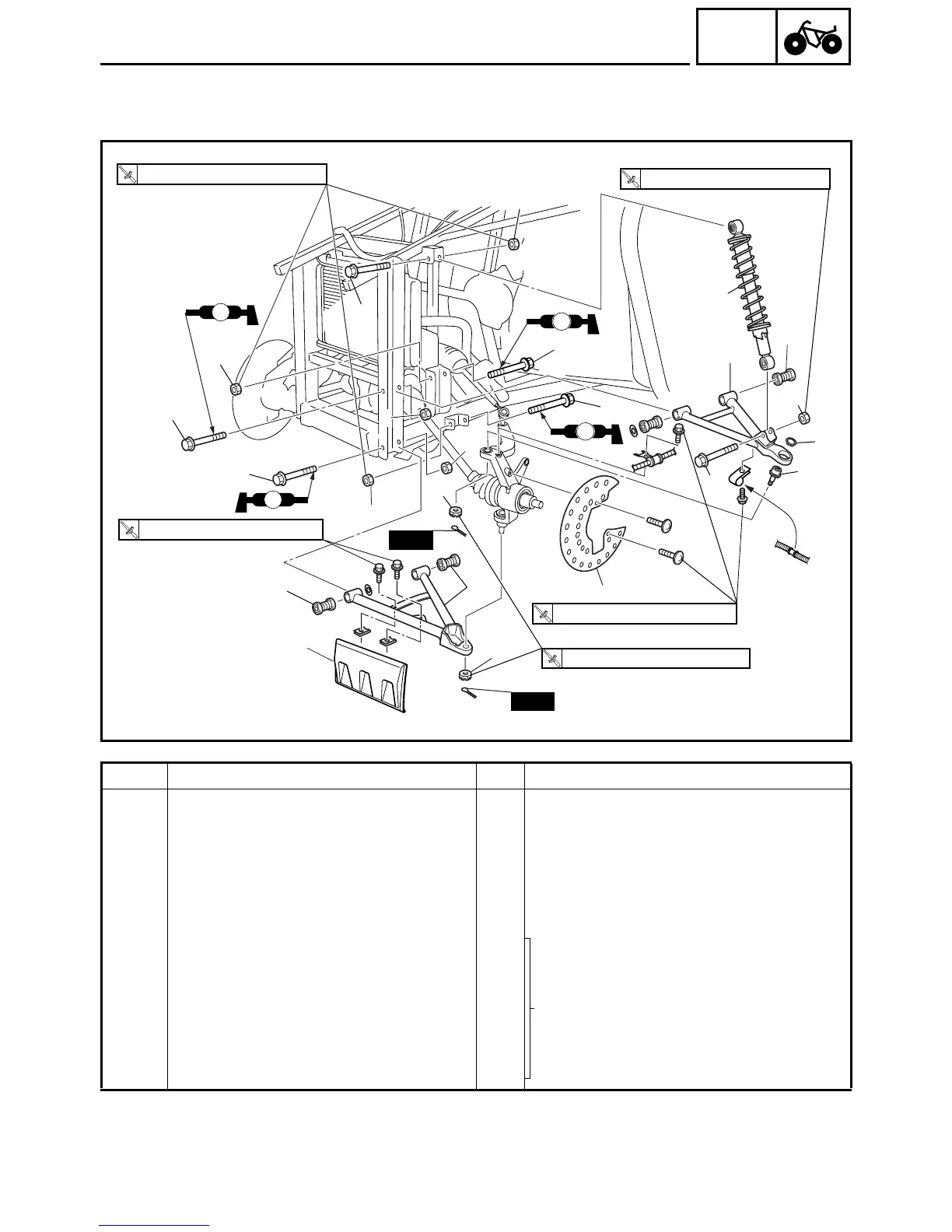

FRONT ARMS AND FRONT SHOCK ABSORBERS
FRONT ARMS AND FRONT SHOCK ABSORBERS
6
8
8
4
3
4
4
5
5
1
6
9
6
10
11
9
7
6
New
LS
New
4
LS
8
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
45 Nm (4.5 m
•
kg, 32 ft
•
Ib)
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
T
R
.
.
45 Nm (4.5 m
•
kg, 32 ft
•
Ib)
3
2
LS
LS
8
Order Job/Part Q’ty Remarks
Removing the front arms and front
shock absorbers
Remove the parts in the order listed.
Front wheel/brake disc Refer to “FRONT WHEELS AND BRAKE
DISCS”.
1 Brake disc guard 1
2 Front arm protector 1
3Nut 2
Refer to “REMOVING THE FRONT
ARMS” and “INSTALLING THE FRONT
ARMS AND FRONT SHOCK
ABSORBER” in chapter 8.
(Manual No.: 5UG-F8197-10)
4 Bolt/nut 2/2
5 Front lower arm/bushing 1/2
6 Nut/bolt 2/2
7 Front shock absorber 1
8 Bolt/nut 2/2
9 Front upper arm/bushing 1/2
