Components
11
EMU2579M

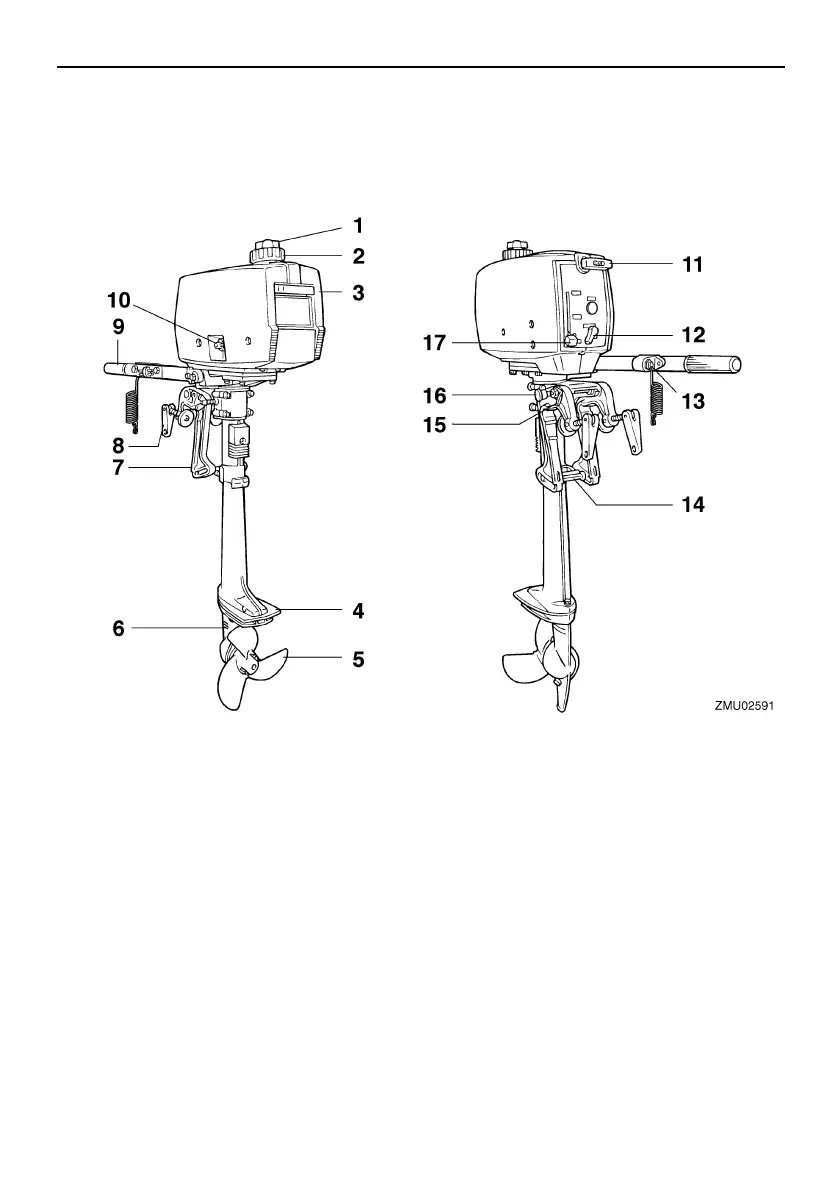

Components diagram
IP:
* May not be exactly as shown; also may not be included as standard equipment on all models.
2C
EMU25821
Fuel tank
If your model included a fuel tank, its parts
and functions are as follows.
1. Air vent screw
2. Fuel tank cap
3. Top cowling
4. Anti-cavitation plate
5. Propeller
6. Cooling water inlet
7. Clamp bracket
8. Clamp screw
9. Tiller handle
10.Fuel cock
11.Manual starter handle
12.Choke knob
13.Engine stop button/Engine shut-off switch
14.Trim rod
15.Restraint cable attachment
16.Tilt support knob
17.Throttle lever
U6A12RE0.book Page 11 Friday, February 27, 2009 10:26 AM
