2. Keep cable length to a minimum
Naturally, the longer the cables the more
bends they usually have and this results in
more end play. Follow these recommenda-
tions:
MAXIMUM LENGTH JUNCTION
UNIT TO ENGINE . . . . . . . . . . . . . . 26 FEET
MAXIMUM LENGTH JUNCTION
UNIT TO UPPER STATION . . . . . . . 22 FEET
MAXIMUM LENGTH JUNCTION
UNIT TO LOWER STATION . . . . . . 22 FEET
MAXIMUM LENGTH ACTUATOR
TO ENGINE . . . . . . . . . . . . . . . . . . 26 FEET
TOTAL LENGTH OF
ALL THREE THROTTLE CABLES . 50 FEET

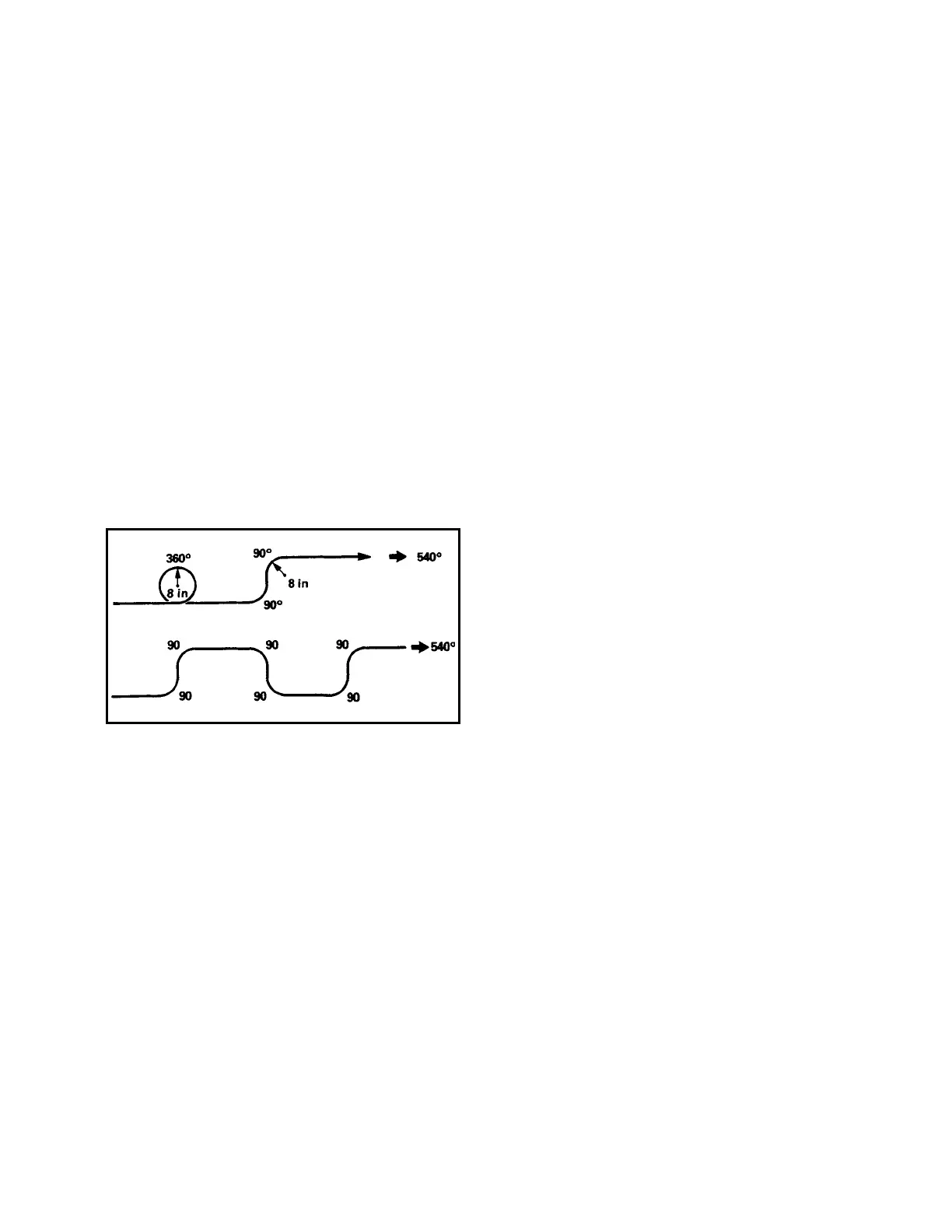

3. Avoid excessive bends in cables
The following recommendations are for
quality YAMAHA cables.
MAXIMUM BENDS IN ONE CABLE . . . 1-1/2
TURNS or 6~90° TURNS or 540°
MINIMUM BEND RADIUS . . . . . . 8 INCHES
10A-13
