Yamaha 9.9 Rigging Guide

5-14
Outboard Rigging Guide - 2001 Trim Meter

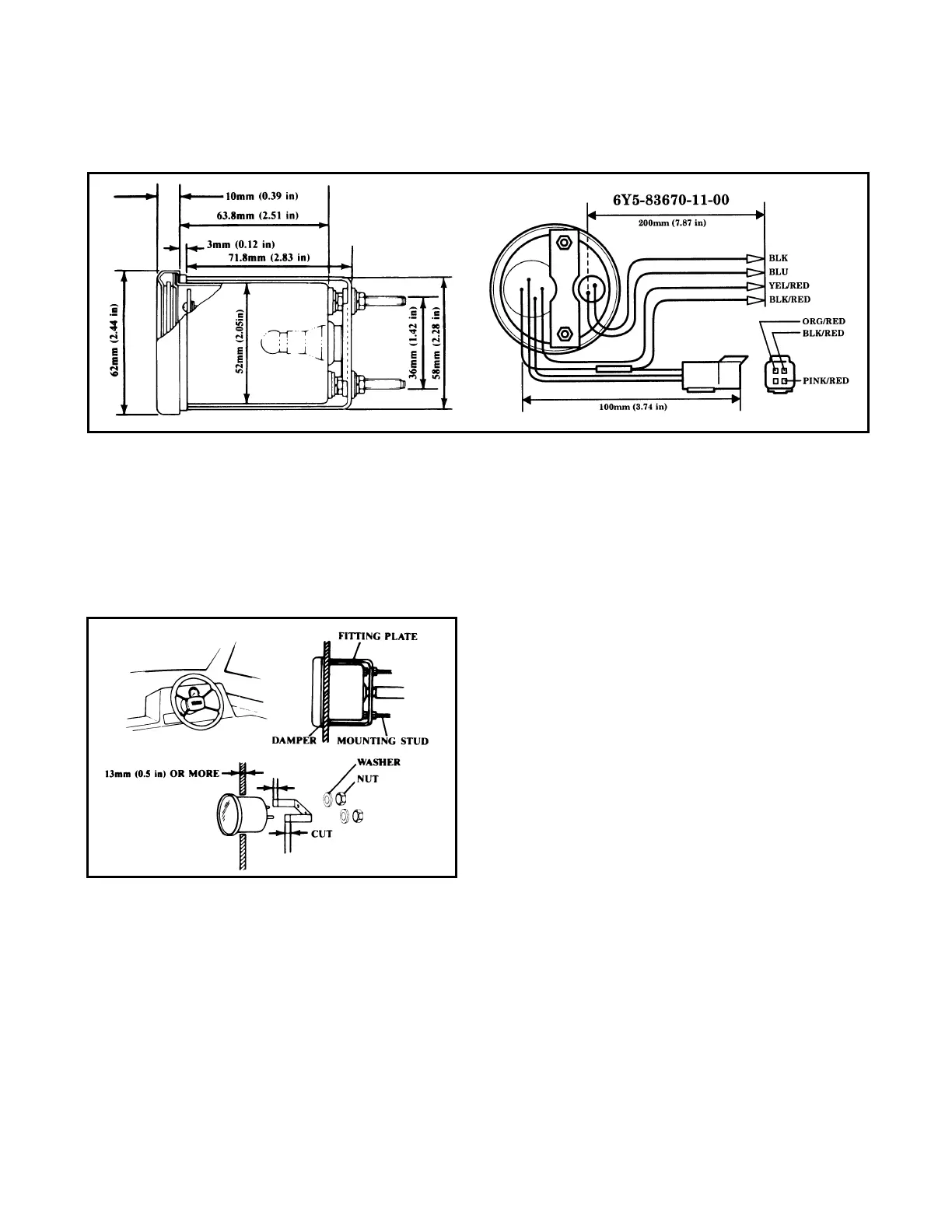

Trim Meter Installation
Mounting
1. Select a mounting location so the meter is
easy to read from the helm. Be sure there is
sufficient clearance behind the panel for the
meter.
2. Make a 2-1/6 in. hole in the desired location.
3. Remove the fitting plate from the meter, fit
the meter into the panel, and install over the
mounting studs.
4. Place the washers over the studs, and then
evenly tighten the mounting nuts until the
meter can no longer be rotated by hand.
NOTE: If the instrument panel has a thickness of
more than 13mm (0.5 in) and it is impossible to
secure the meter with the fitting plate, cut the fit-
ting plate so the meter can be installed.

Yamaha 9.9 Specifications

General

Fuel Induction System	Carburetor
Prop Shaft Horsepower	9.9 hp
Starting System	Manual
Shaft Length	15 in
Steering	Tiller
Fuel Tank Capacity	External tank
Bore x Stroke	50.0 x 43.0 mm (1.97 x 1.69 in.)
