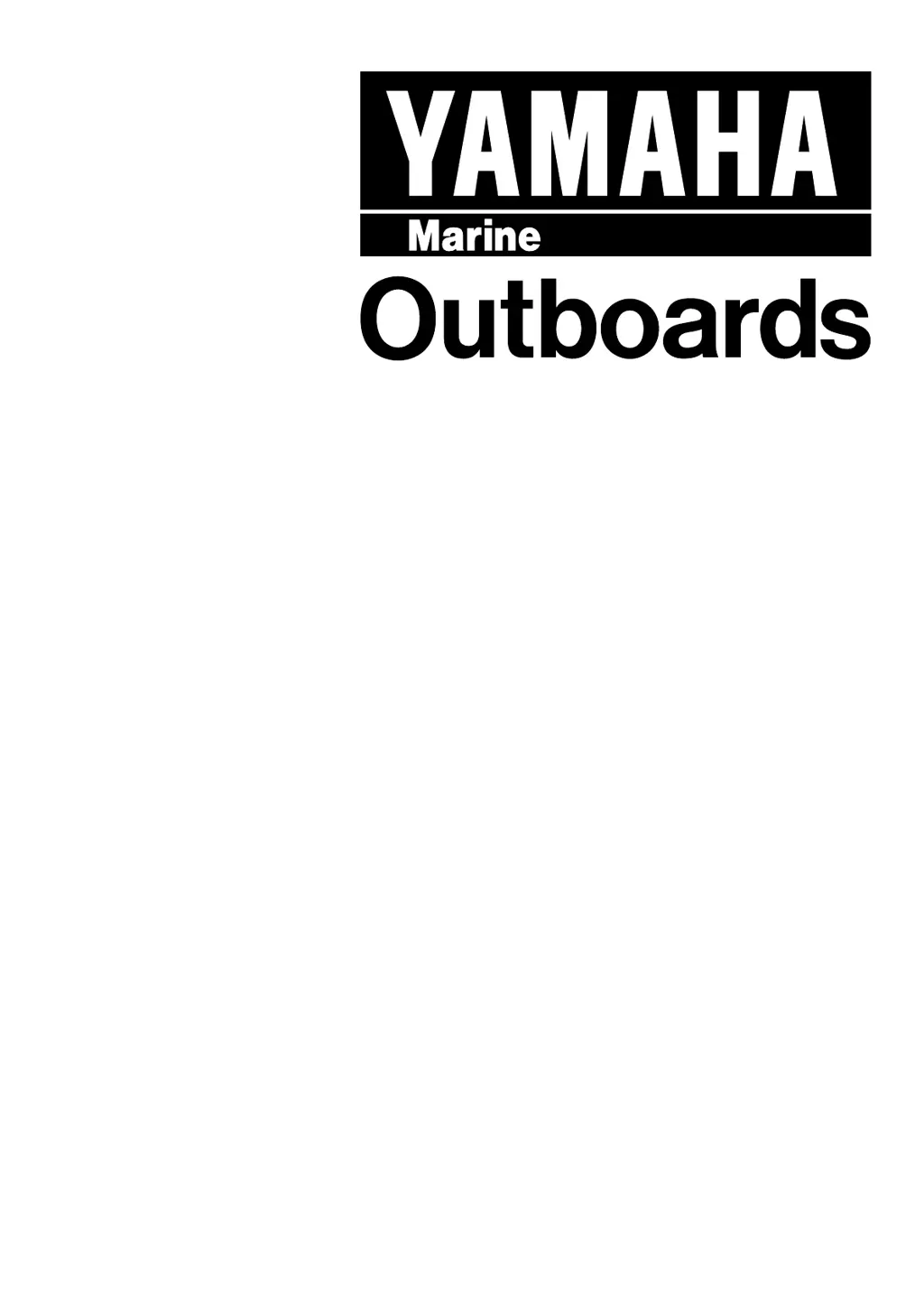

Yamaha 90A - Service Manual

Other manuals for Yamaha 90A

Owner's Manual222 pages

Questions and Answers

O
oroblesAug 14, 2025
Why Yamaha 90A starter will not operate?
- J
  Jose RodriguezAug 15, 2025
  If your Yamaha Outboard Motor's starter won't operate, several factors could be at play. The battery capacity might be weak or low, requiring you to check its condition and potentially use a battery with the recommended capacity. The battery connections could be loose or corroded; ensure you tighten the battery cables and clean the terminals. A blown fuse in the electric start circuit could also be the culprit, so check for any electric overload, repair it, and replace the fuse with one of the correct amperage. Other potential causes include faulty starter components (have these serviced by a Yamaha dealer), the engine stop switch lanyard not being attached (attach the lanyard), or the shift lever being in gear (shift to neutral).
M
marilyn27Aug 21, 2025
What to do if Yamaha 90A engine will not start but starter operates?
- M
  Morgan FisherAug 21, 2025
  If your Yamaha Outboard Motor engine won't start but the starter operates, here's what to check: The fuel tank may be empty, so fill it with clean, fresh fuel. The fuel could be contaminated or stale, requiring you to replace it with clean, fresh fuel. A clogged fuel filter needs cleaning or replacement. Make sure you are using the correct starting procedure. Inspect, clean, or replace fouled or incorrect spark plugs with the recommended type. Ensure spark plug caps are correctly fitted. Check for wear or breaks in the ignition wires, tighten loose connections, and replace worn or broken wires. Also, attach the engine stop switch lanyard and shift to neutral. For fuel pump malfunctions, faulty ignition parts, damaged engine inner parts, have it serviced by a Yamaha dealer.
S
Susan ZavalaAug 25, 2025
How to troubleshoot a Yamaha 90A Outboard Motor when the starter will not operate?
- S
  sarahperezAug 26, 2025
  If the starter on your Yamaha Outboard Motor won't operate, begin by checking the battery. Ensure it's in good condition and has the recommended capacity. Tighten any loose battery cables and clean corroded terminals. Inspect the fuse for the electric start circuit and replace it if blown, after addressing the cause of the overload. Ensure the engine stop switch lanyard is attached and the shift lever is in neutral.
M
Michael NguyenSep 12, 2025
How to fix excessive vibration in Yamaha 90A?
- D
  Dr. Rachel WoodsSep 12, 2025
  Excessive vibration in your Yamaha Outboard Motor can stem from several issues. A damaged propeller should be repaired or replaced. A damaged propeller shaft or steering pivot requires servicing by a Yamaha dealer. Remove any weeds or foreign matter tangled on the propeller. Check for and tighten any loose motor mounting bolts. Also, tighten or have serviced a loose or damaged steering pivot by a Yamaha dealer.
M
Mr. Eddie CruzNov 17, 2025
Why does the warning buzzer sound on my Yamaha Outboard Motor?
- R
  Ricardo ThorntonNov 17, 2025
  If the warning buzzer sounds or the indicator lamp lights on your Yamaha Outboard Motor, it could be due to several reasons. The cooling system might be clogged, so check the water intake for any restrictions. The engine oil level could be low, requiring you to fill the oil tank with the specified engine oil. An incorrect heat range of the spark plug necessitates inspecting and replacing it with the recommended type. Ensure you are using the specified engine oil and replace it if it's contaminated or deteriorated. If the oil filter is clogged or the oil feed/injection pump malfunctions, have it serviced by a Yamaha dealer. Improper load distribution on the boat can also trigger the warning, so distribute the load evenly. Lastly, a faulty water pump or thermostat should be serviced by a Yam...
M
Mary BoydNov 27, 2025
What to do if my Yamaha 90A Outboard Motor engine will not start but the starter operates?
- H
  howardstacyNov 27, 2025
  If the Yamaha Outboard Motor's starter operates but the engine doesn't start, several factors could be at play. Ensure the fuel tank isn't empty and that you're using clean, fresh fuel. A clogged fuel filter could also be the culprit, so clean or replace it. Check the spark plugs for fouling or incorrect type, and inspect the spark plug caps for proper fitting. Also, make sure the engine stop switch lanyard is attached and the shift lever is in neutral. Poor connections or damaged ignition wiring can also prevent starting, so inspect for wear or breaks and tighten any loose connections. If the starting procedure is incorrect, consult the 'STARTING ENGINE' section. For fuel pump malfunctions, faulty ignition parts, or damaged engine inner parts, it is best to have your Yamaha dealer service...
A
Amy DavisDec 1, 2025
Why does my Yamaha Outboard Motor engine idle irregularly or stall?
- M
  Mary AndersonDec 1, 2025
  If your Yamaha Outboard Motor idles irregularly or stalls, possible causes include fouled or incorrect spark plugs (inspect, clean, or replace them), obstructions in the fuel system (check for pinched fuel lines), or contaminated/stale fuel (replace with fresh fuel). A clogged fuel filter can also cause this issue, so clean or replace it. Ensure the spark plug gap is correct and that there are no poor connections or damaged ignition wiring. Also, make sure the air vent screw on the fuel tank is open, the motor angle is at normal operating position, the fuel joint connection is correct and the battery lead is securely connected. If the warning system is activated, identify and correct the cause. Using the specified engine oil is also important; check and replace if necessary. For failed ign...

Summary

Specifications

Tightening Torque

Specifies torque values for various fasteners and assembly points.

Chapter 3 Periodic Inspection and Adjustment

Ignition Timing Adjustment

Procedures for adjusting the ignition timing plate position.

Oil Injection Pump Test

Operational test procedure for the oil injection pump.

Chapter 4 Fuel System

Carburetor Service

Exploded diagrams, disassembly, inspection, and assembly of carburetors.

Oil Injection System Service

Exploded diagrams and service procedures for the oil injection system.

Chapter 5 Power Unit

Power Unit Disassembly

Step-by-step instructions for disassembling the power unit.

Power Unit Inspection

Inspection procedures for key power unit components.

Power Unit Assembly and Adjustment

Instructions for reassembling and adjusting power unit parts.

Chapter 6 Lower Unit

Lower Unit Disassembly

Step-by-step instructions for disassembling the lower unit.

Lower Unit Inspection

Inspection procedures for lower unit components.

Lower Unit Assembly and Adjustment

Instructions for reassembling and adjusting lower unit parts.

Chapter 7 Bracket Unit

Hydraulic Tilt Unit Service

Inspection and service procedures for the hydraulic tilt unit.

Power Trim and Tilt Unit Service

Removal, disassembly, inspection, and assembly of the PTT unit.

Power Trim and Tilt Motor Service

Disassembly, inspection, and assembly of the PTT motor.

Chapter 8 Electrical Systems

Electrical Wiring Diagrams

Provides wiring diagrams for various models and systems.

Electrical Analysis and Troubleshooting

Starter Motor Service

Chapter 9 Trouble Analysis

Trouble Analysis Chart

Yamaha 90A Specifications

General

Engine Type	2-Stroke
Horsepower	90 hp
Cylinders	3
Starting System	Electric
Steering	Remote
Full Throttle Operating Range	4500 - 5500 rpm
Gear Ratio	2.0:1
Fuel Induction System	Carburetor
