Yamaha 90A - Power Trim and Tilt Motor Service

7-31
E
BRKT
POWER TRIM AND TILT MOTOR
POWER TRIM AND TILT MOTOR

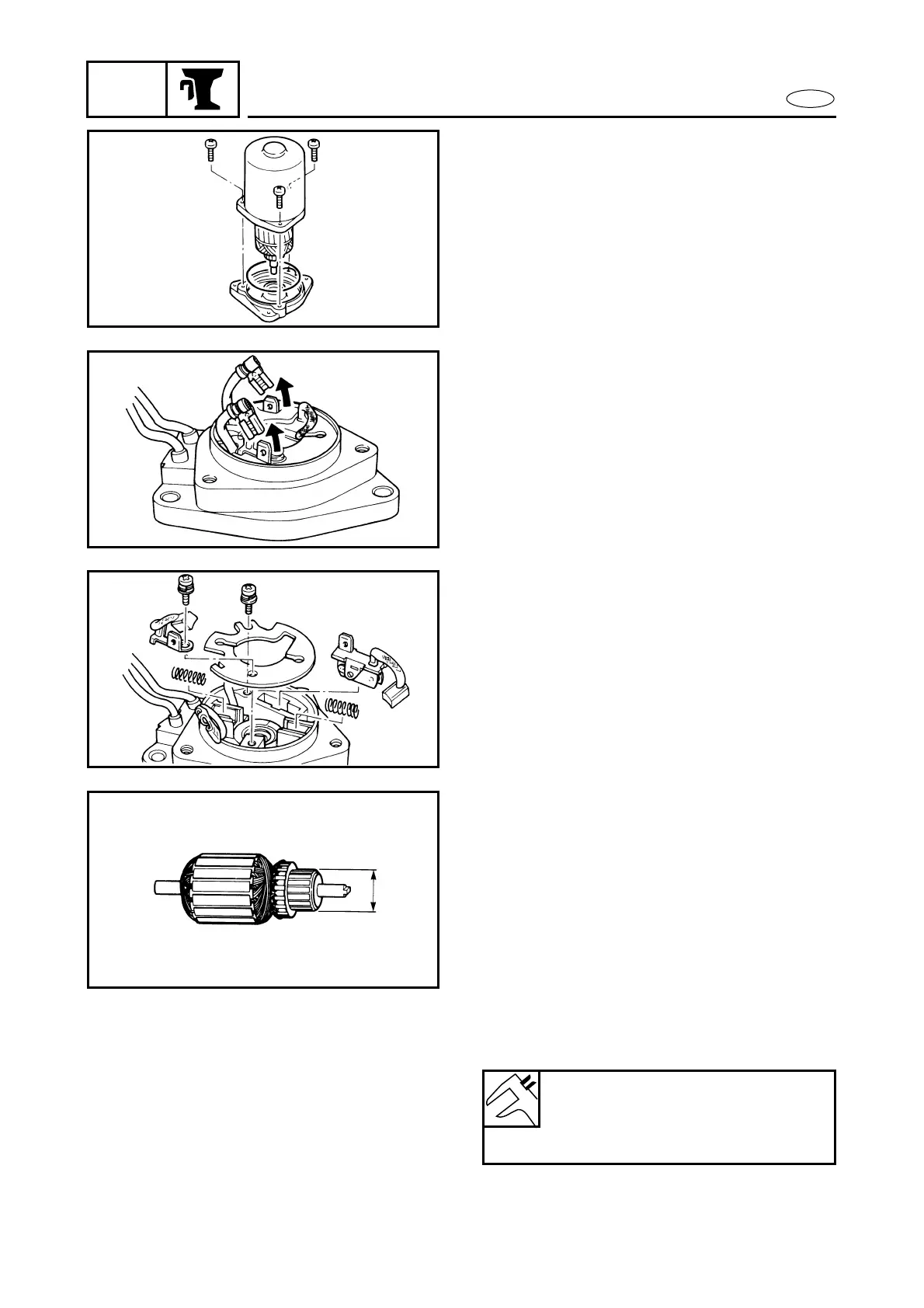

DISASSEMBLY
1. Loosen the screws and remove the sta-
tor, O-ring and the armature.
2. Disconnect the connector.
3. Loosen the screw and remove the
brush, cover plate, circuit breaker and
the spring.
K62001-0*
INSPECTION
ARMATURE COIL
1. Visually inspect the commutator sur-
face and if it shows signs of roughness,
polish it with 600-grit wet-or-dry sand-
paper.
2. Measure the outside diameter of the
commutator by use of a vernier caliper.
If the diameter is less than the specified
minimum outside diameter, replace the
whole armature.
Armature minimum outside
diameter:
Standard: 22 mm (0.87 in)
Minimum: 21 mm (0.83 in)
