Yamaha 90A - Chapter 7 Bracket Unit; Exploded Diagram; Manual Handle; BRACKET UNIT (Manual Tilt Model)

7-1
E
BRKT
BRACKET UNIT
BRACKET UNIT

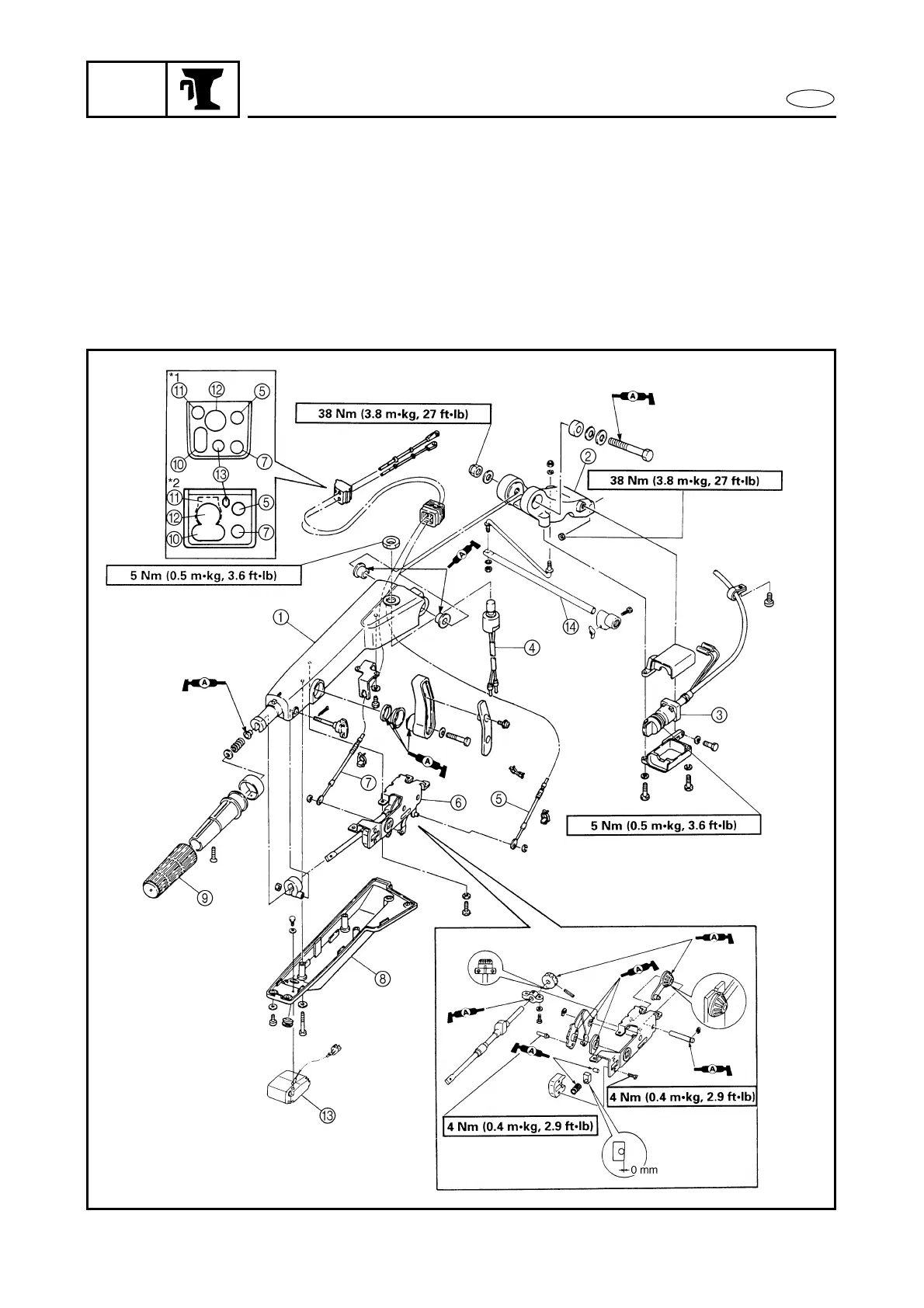

EXPLODED DIAGRAM
MANUAL HANDLE
P60TH/60FEHTO
*1
, P75TH/75CEHTO, 90AEHD
*2
1 Steering handle
2 Bracket
3 Main switch
4 Engine stop switch
5 Throttle cable
6 Link assembly
7 Shift cable
8 Cover
9 Grip
0 Battery cable
A Main switch lead
B Extension wire lead
C PTT switch (PTT model)
D Steering friction
(PTT model)
