7-11
E
BRKT
HYDRAULIC TILT UNIT/
POWER TRIM AND TILT UNIT

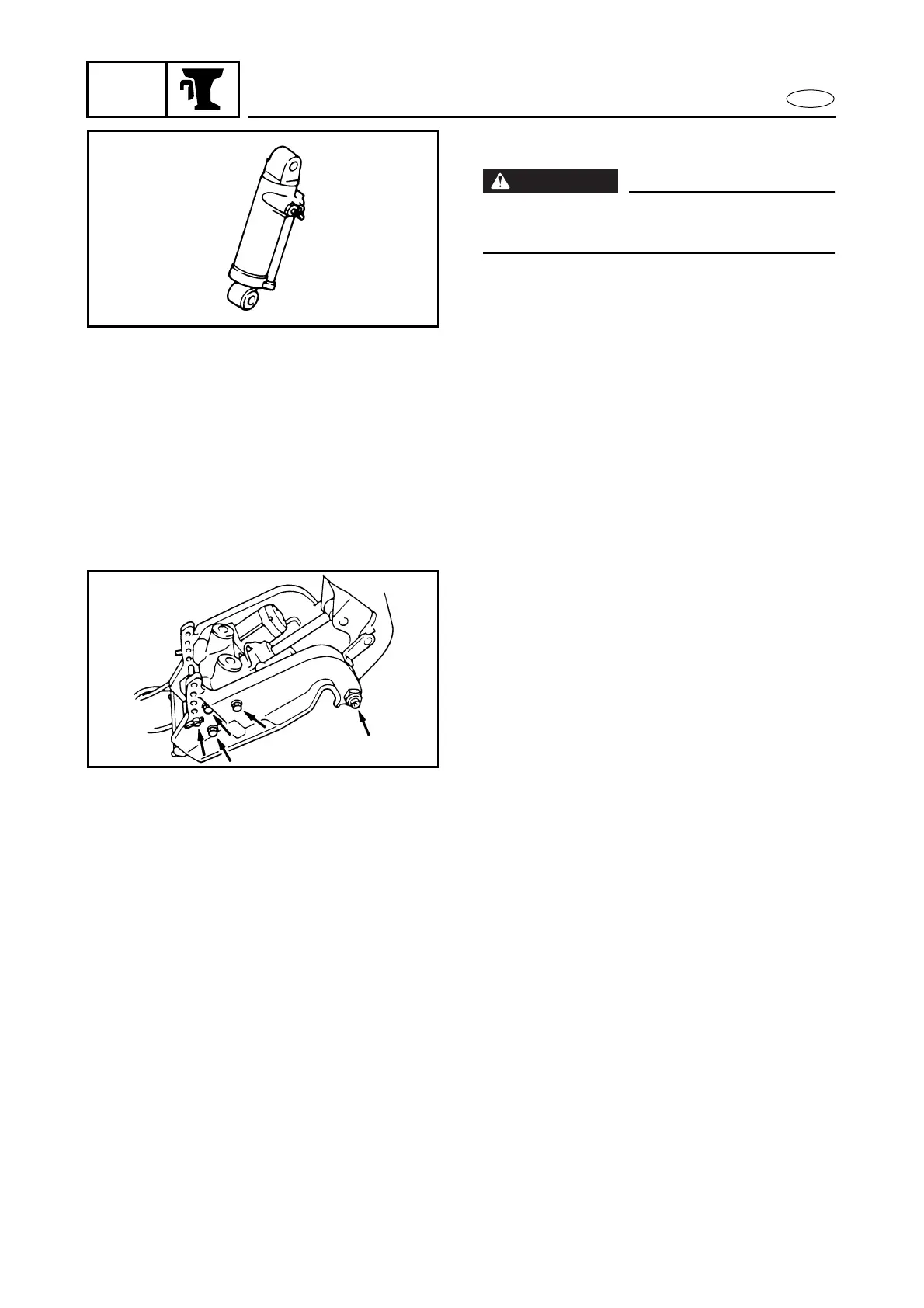

HYDRAULIC TILT UNIT
WARNING
This cylinder is highly pressurized. There-
fore, never overhaul or damage it.
INSPECTION
1. Inspect the tilt cylinder assembly for
scratches or corrosion.
If any scratches are found, replace the
tilt cylinder assembly.
POWER TRIM AND TILT UNIT
REMOVAL
1. Disconnect the leads from the relay in
the bottom cowling.
2. Remove the tilt-rod, bolts and nut, and
the clamp-bracket.
3. Remove the circlip and the complete
power trim and tilt unit.
To Next Page
