Yamaha 90A - EXPLODED DIAGRAM (for C60 ER, C60 TR, C75 TR)

204 pages

To Next Page

To Previous Page

4-7

FUEL

CARBURETOR

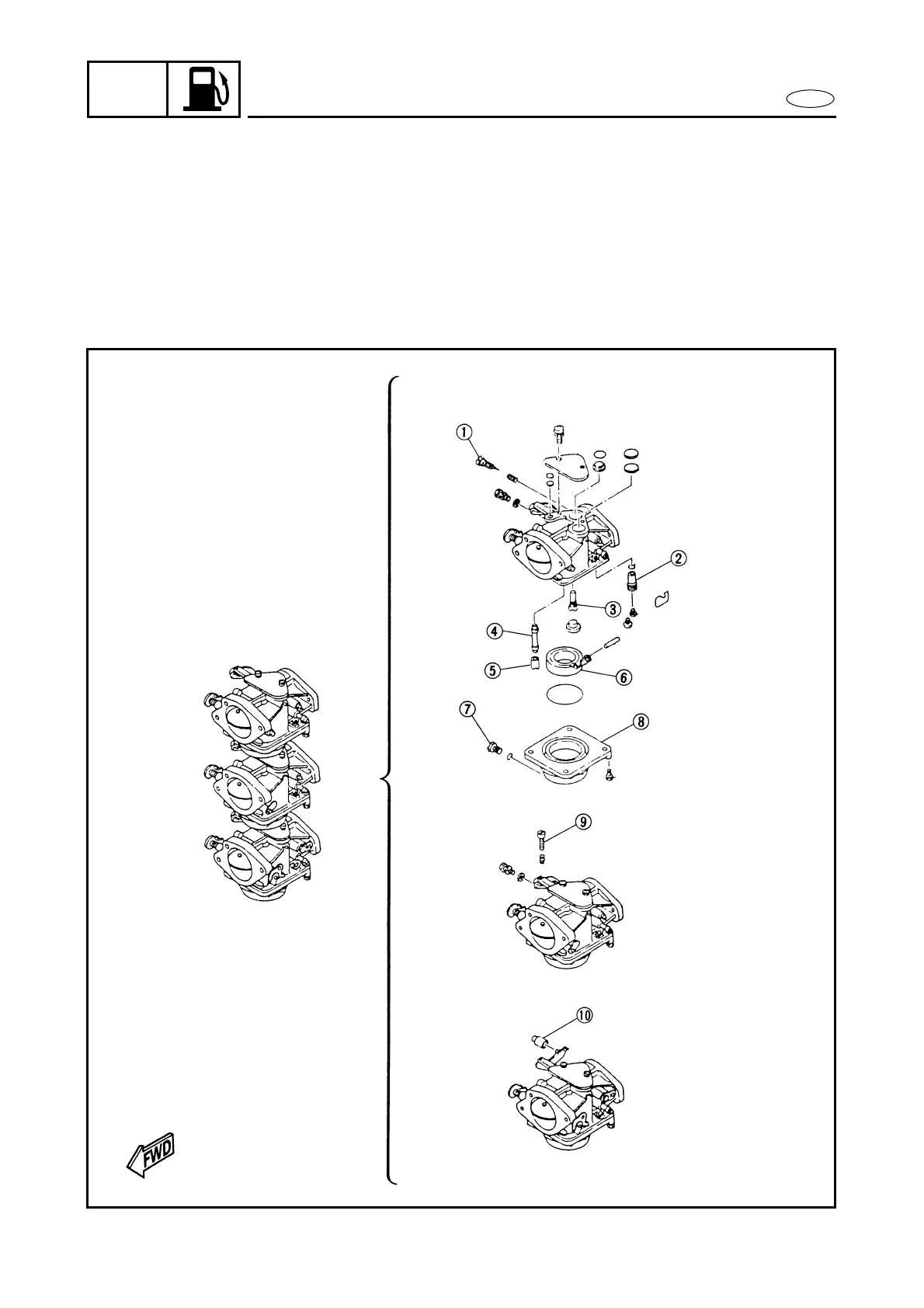

EXPLODED DIAGRAM (For C60ER, C60TR, C75TR)

1 Pilot screw

2 Needle valve

3 Pilot jet

4 Main nozzle

5 Main jet

6 Float

7 Drain screw

8 Float chamber

9 Throttle stop screw

0 Collar
