Components
17
EMU2579M

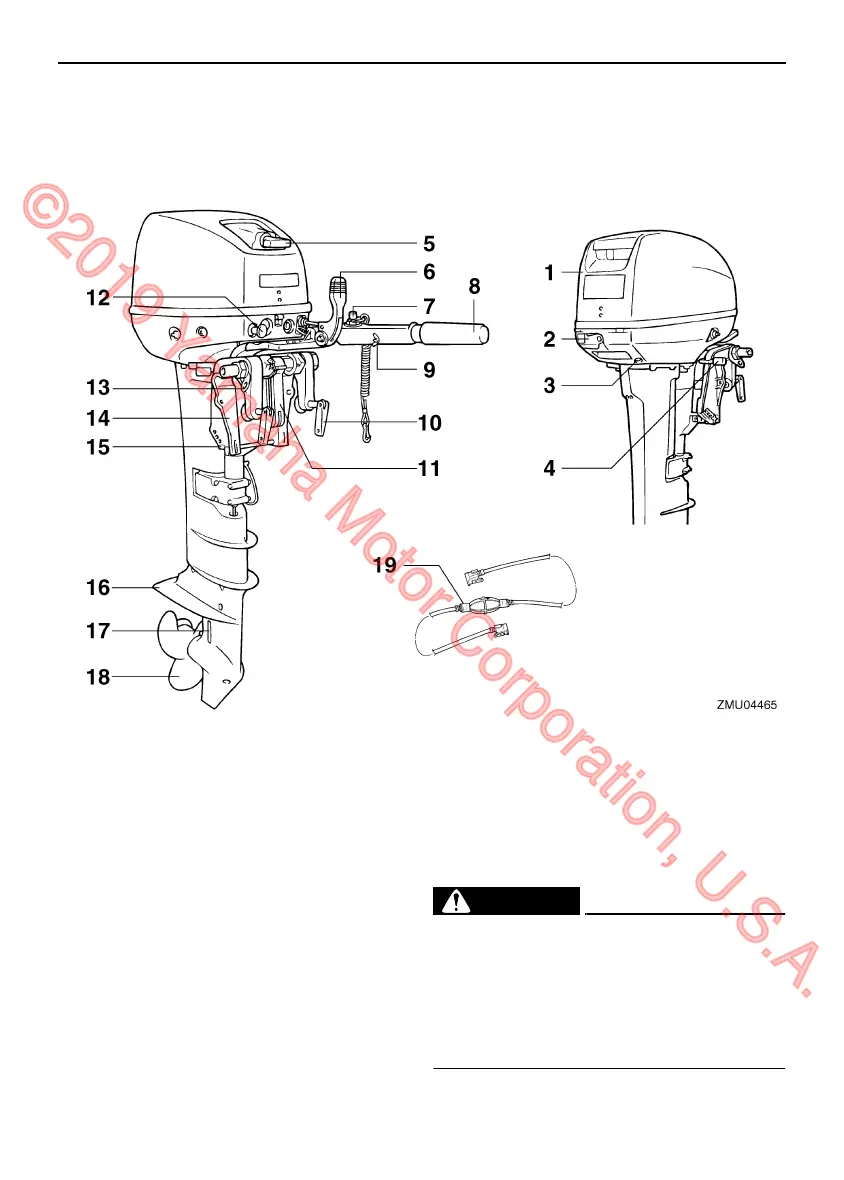

Components diagram
T
IP:
* May not be exactly as shown; also may not be included as standard equipment on all models.
9.9, 15
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
mercial users should conform to relevant
licensing or approval authority regula-
tions.
1. Top cowling
2. Cowling lock lever
3. Cooling water pilot hole
4. Tilt lock lever
5. Manual starter handle
6. Gear shift lever
7. Engine stop button/Engine shut-off switch
8. Tiller handle
9. Throttle friction adjuster
10.Clamp screw
11.Carrying handle
12.Choke knob
13.Restraint cable attachment
14.Clamp bracket
15.Trim rod
16.Anti-cavitation plate
17.Cooling water inlet
18.Propeller*
19.Fuel hose
U63V1EE0.book Page 17 Tuesday, March 3, 2009 10:50 AM
