Yamaha AR190 2012 User Manual

Equipment operation
50

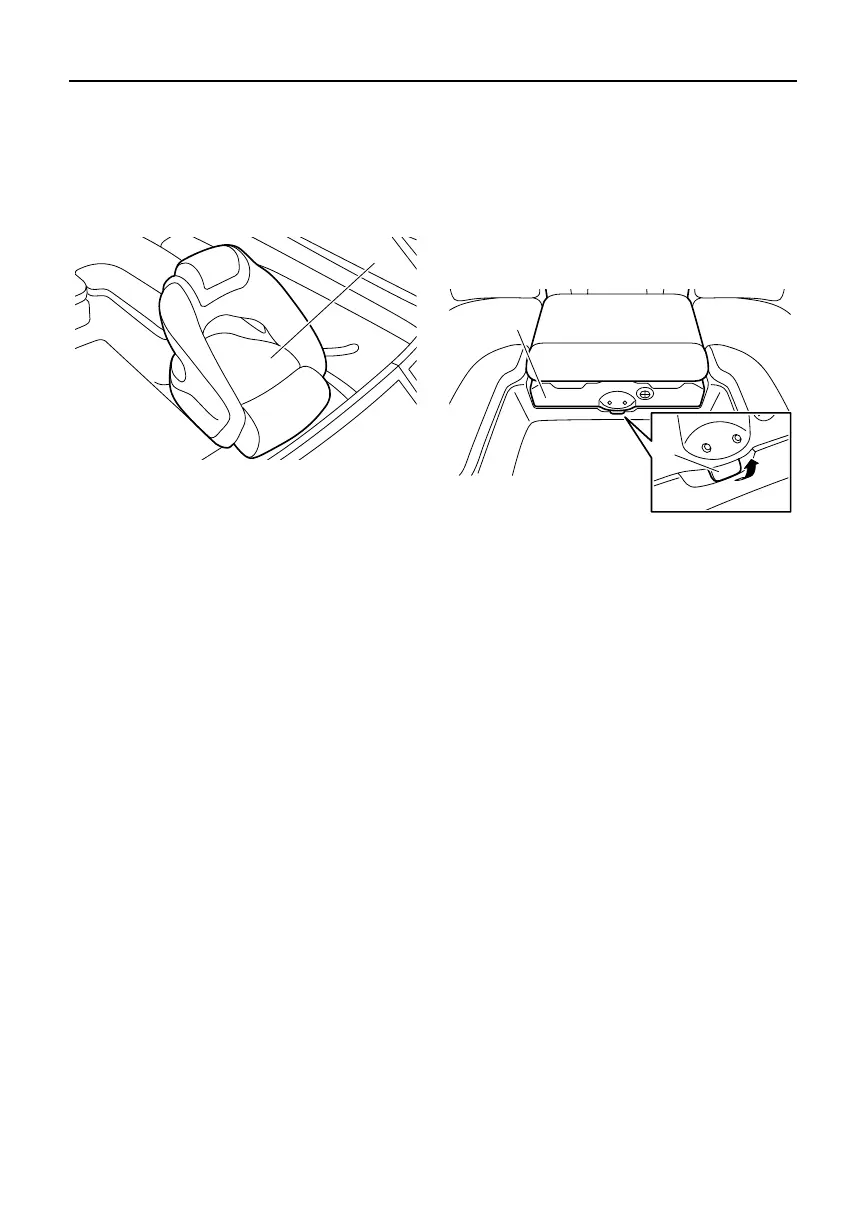

Passenger’s seat (SX190)
The passenger’s seat can be adjusted in the
same ways as the driver’s seat.
See “Driver’s seat” for instructions on adjust-
ing the seat.
1 Passenger’s seat
Engine hood
The engine hood can be opened to access
the engine.
The engine hood latch is located under the
front of the rear center seat.
To open the engine hood, pull the engine
hood latch up and lift the engine hood.
1 Engine hood latch
2 Engine hood
To close the engine hood, push the front of
the rear center seat to securely lock it in place.
1
1
2
SportsBoat.book Page 50 Monday, October 31, 2011 4:12 PM

Yamaha AR190 2012 Specifications

General

Length	19' 2"
Fuel Capacity	30 gal
Horsepower	180 hp
Impeller	3-blade, stainless steel
Engine Type	4-cylinder
Draft	15 in
