Keyboard Arp & Drum Pad Owner’s Manual 5
This display lets you play the Drum sounds of the synthesizer. Select a Drum Set (
2), then tap the desired Drum Pads on the display.
1 Pad
Tap any Pad to transmit the MIDI note messages assigned to the tapped Pad. Up to five notes can be assigned to a single Pad. The Pad colors indicate the
following conditions:
• Gray: No note is assigned.
• Red: Only one note is assigned.
• Blue: Two or more notes are assigned.
2 Pad Set
Indicates the current Pad Set, which includes the settings regarding what notes are assigned to each of the sixteen Drum Pads. Tapping [+]/[-] changes the Pad
Set in single steps. Or to change the Pad Set, tap the Pad Set name indicator to call up the Pad Type list, then tap the desired one.

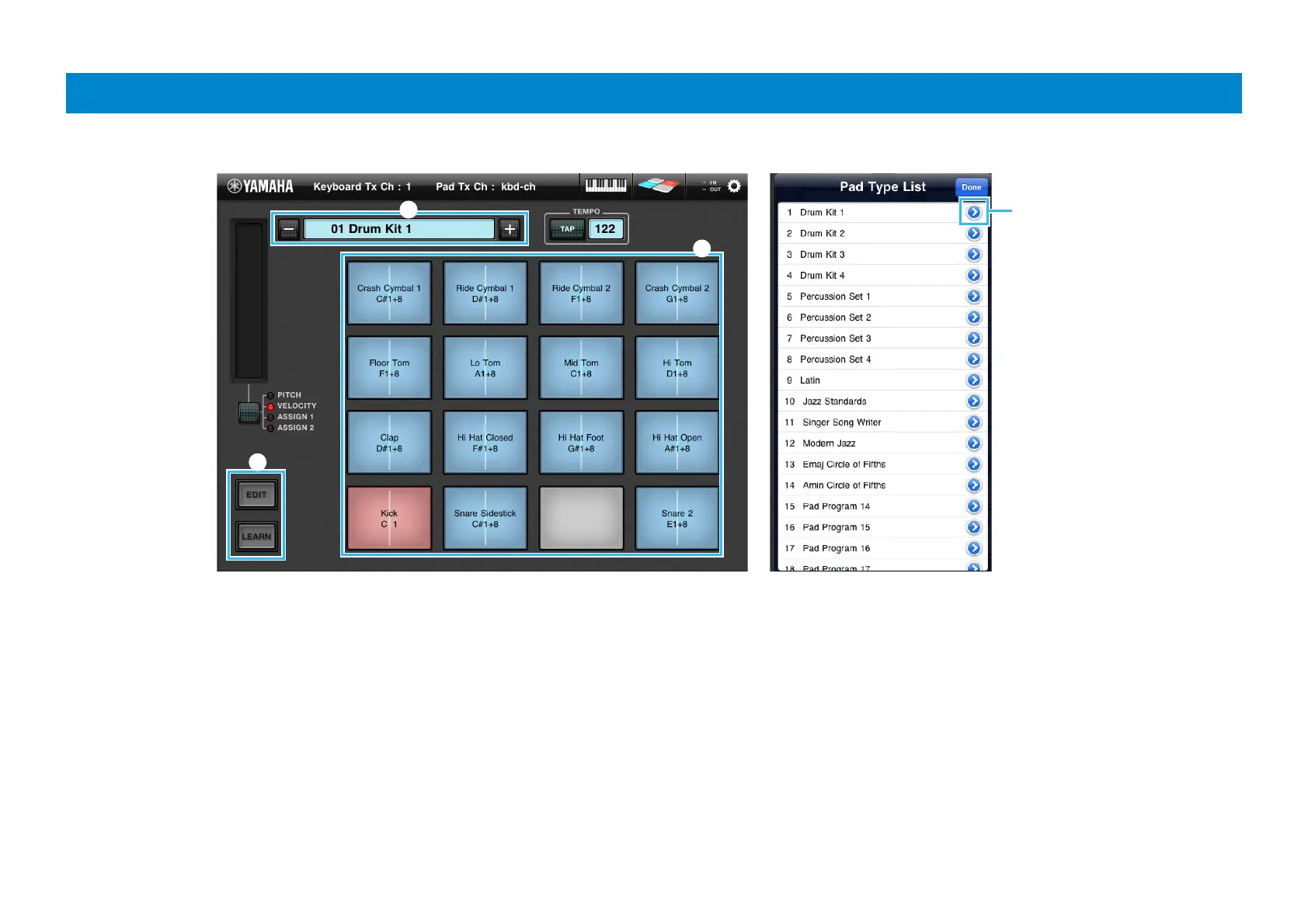

Drum Pad display
1
2
3
Tapping here calls up
the on-screen keyboard
which lets you edit the
Pad Set name.
To Next Page
