PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
Panels, removing and installing<IXE>
EAU18771
Removing and installing
panels
ZAUM00**

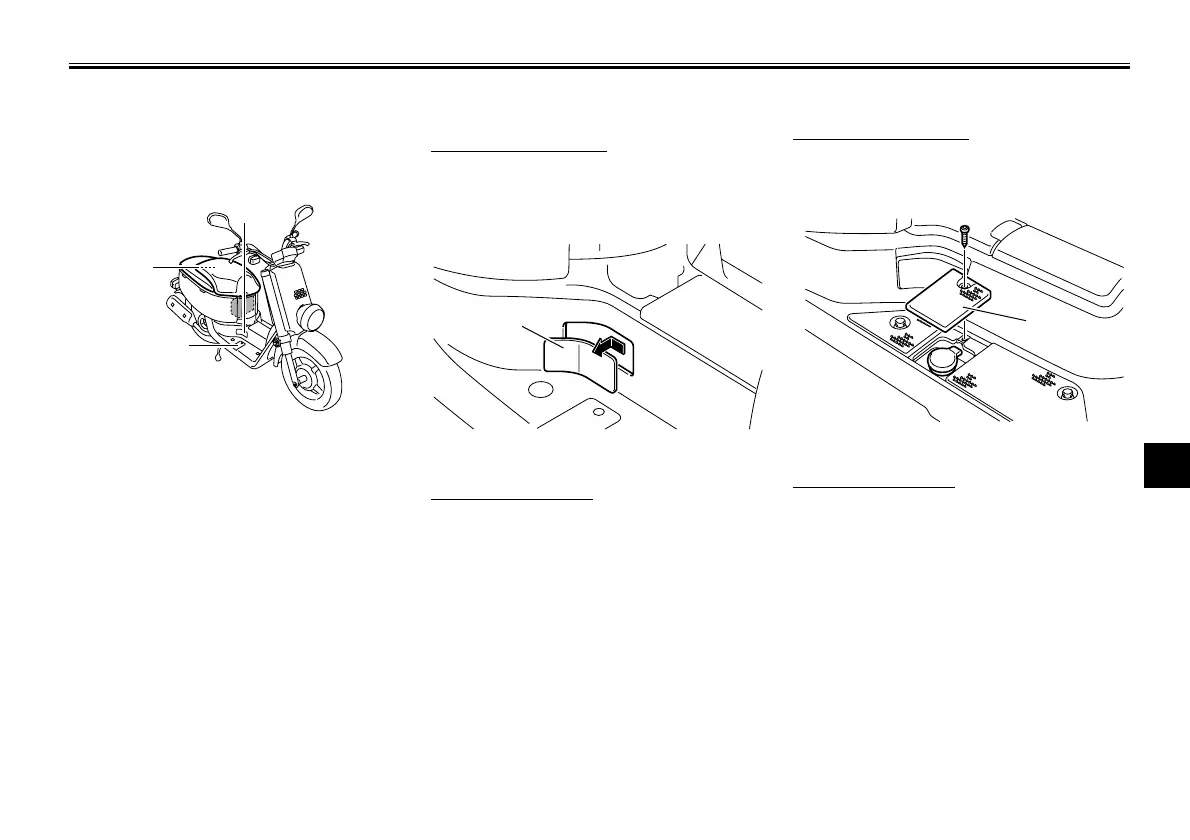

3
1
2
1. Panel A
2. Panel B
3. Panel C
The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAUT2100
Panel A
To remove the panel
Slide the panel backward, and then pull
it out as shown.
ZAUM00**
1
1. Panel A
To install the panel
Place and slide the panel into the origi-
nal position.
Panel B
To remove the panel
Remove the screw, and then take the
panel off.
ZAUM00**
1
1. Panel B
To install the panel
Place the panel in the original position,
and then install the screw.
