A. Adjusting the Hammer Sensor Unit
1. Service Center mode  4-2. Hmr Sensor Test
2. Push the quiet button on the switch box to enter the quiet mode.
3. Two beeps (M1, M2) sound when hammer head is raised.pushed toward back.
M1 (the first beep): ON
M2 (the second beep): ON – Hammer shank stop position +1.5±1mm
4. Adjust the hammer sensor height adjuster. (Push the quiet button to quit the quiet
mode first.)
Loosen lock screw D, then adjust sensor
height by turning adjuster E.

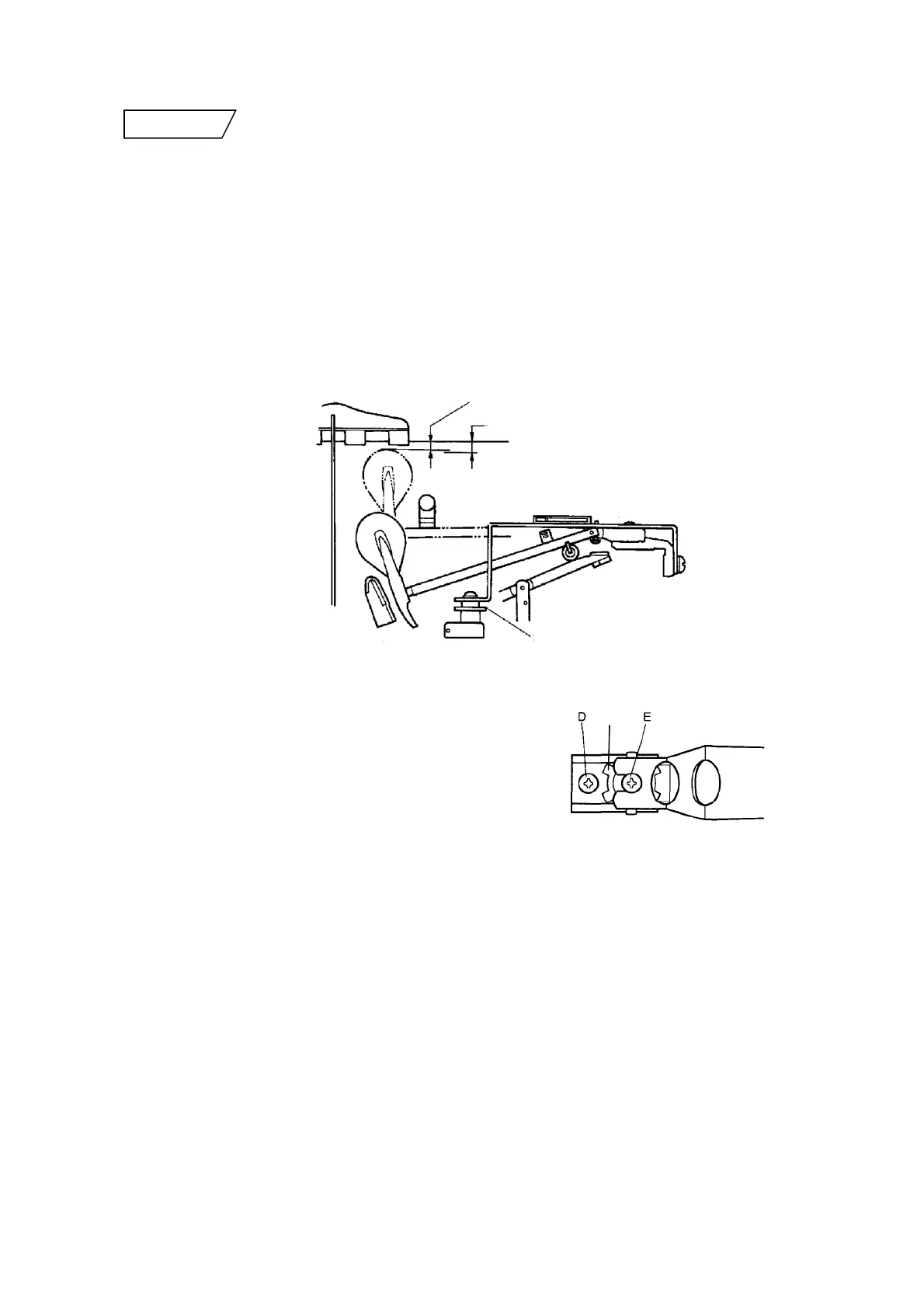

シャンクストップ位置 ： 弦から５～６mm
M2 ON タイミング ： シャンクストップ位置＋1.5±1mm
調整用歯車
Shank stop position: 5mm-6mm from string
M2 ON timing: Shank stop position +1.5mm±1mm
Hammer sensor height adjuster
