Yamaha Disklavier E3 Series - Parts List

⑪
⑩
③
⑨
②
④
⑧
⑦
⑥
⑤
36
37
38
①
⑫
27
⑮⑱⑰⑯
25 26
29
31
33 34
⑲⑳
⑬
⑭
21
22
24
23
28
30
35

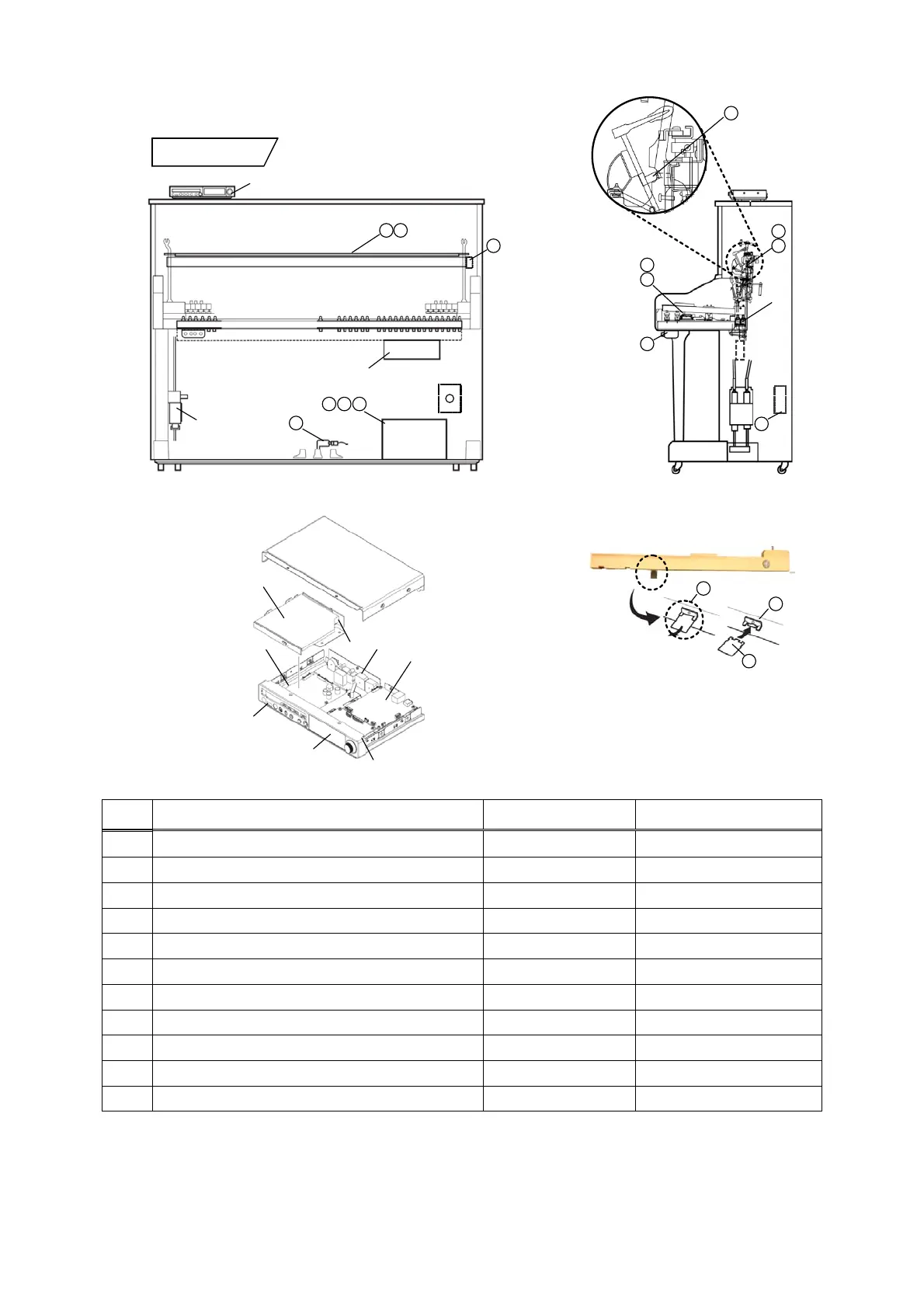

11. Ｐarts List
Upright Piano
No. Part Name Part Number Remarks
1
Control Unit WN755500 DKC-800
2
CTRL Circuit Board WN507700
3
MC Circuit Board WN507900
4
APE Circuit Board WN507800
5
USB Circuit Board WN757300
6
PANEL Circuit Board WN757600
7
ENCD Circuit Board WN757000
8
JACK Circuit Board WN708200
9
REG Circuit Board WN508400
10 1/2”CD-ROM
WN735100
11
EXG Circuit Board WN767400
・Key Shutter
Electrical Parts
・Control Unit
45
